E

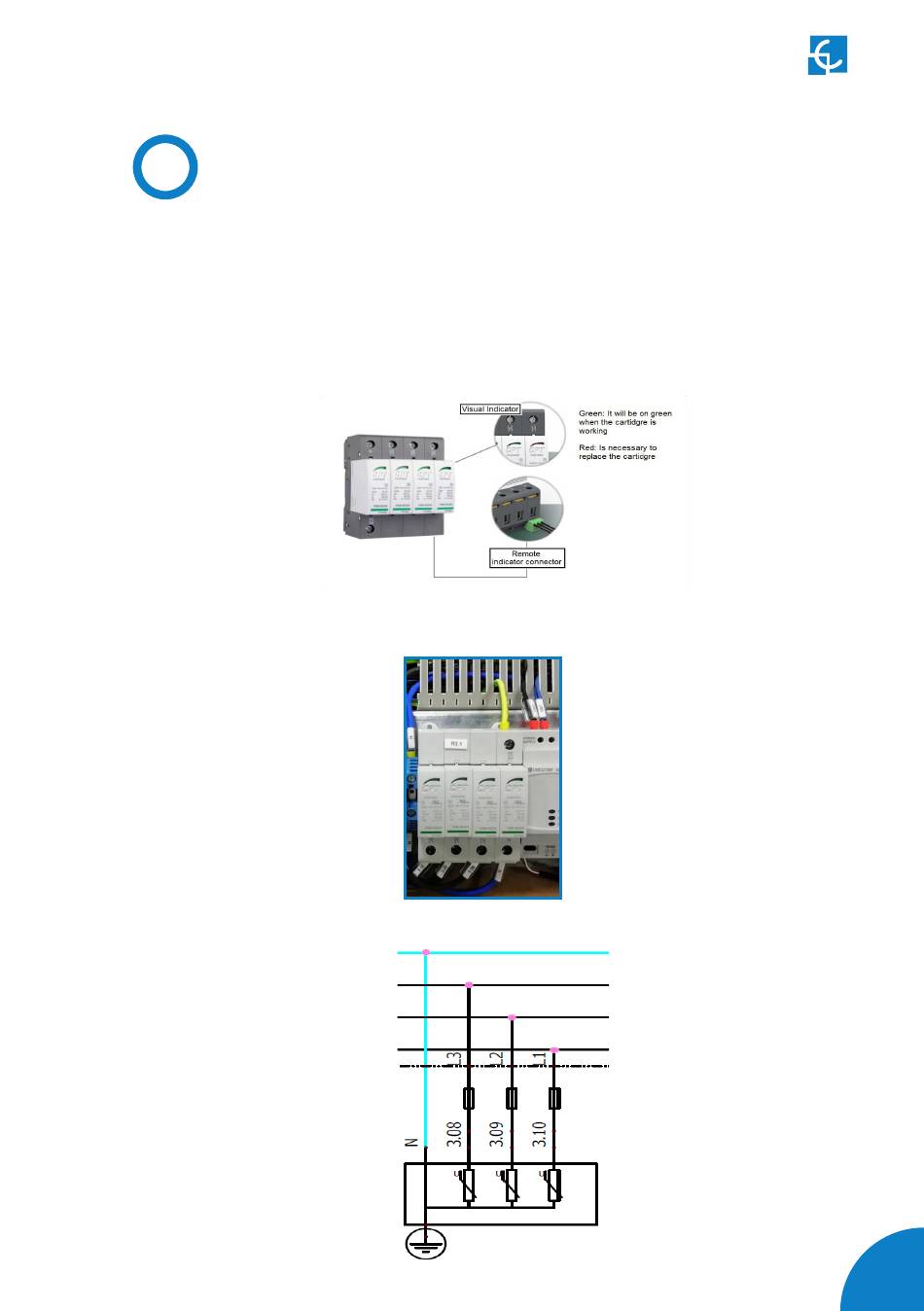

Transient surge protector
The charging station can be equipped with four pole transient surge protector as
an opcional protection. It has four interchangeable cartridges based on varistor.
Also, it is equipped with a visual indicator and a remote indicator. Remote
indicator is not integrated, so make sure visually that the status of the cartridges
is correct during maintenance tasks.
It is installed next to the main disconnector. Includes three fuses.
Electrical scheme
34
