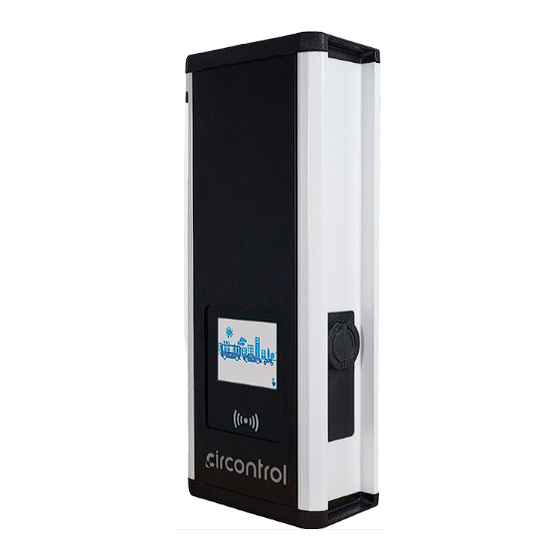

- Page 1 Installation Manual Wallbox eVolve Series...
- Page 2 C O P Y R I G H T I N F O R M AT I O N This document is copyrighted, 2023 by Circontrol, S.A. All rights are reserved. Circontrol, S.A. reserves the right to make improvements to the products described in this manual at any time without notice.
-
Page 3: Table Of Contents
Here’s your guide to install eVolve. 1 — So, hello! 5 — Installation 2 — Before the 6 — Technical Data installation 3 — Overview 7 — Need Help? 4 — Dimensions... - Page 4 Wallbox eVolve Series - Installation Manual...
-
Page 5: So, Hello
So, hello! This manual provides commissioning information about CIRCONTROL Charge Points, which have been designed and tested to allow electric vehicle charging, specified in IEC 61851. This document has different sections such as step-by-step installation procedure and technical data. THE FOLLOWING SYMBOLS ARE USED FOR IMPORTANT... - Page 6 Wallbox eVolve Series - Installation Manual I M P O R TA N T S A F E T Y I N S T R U C T I O N S Read carefully all the instructions before starting in order to ensure properly installation of the Charge Point.
-
Page 7: Before The Installation
Before installation E L E C T R I C A L W I R I N G C O N S I D E R AT I O N S Take into consideration this section before starting wiring the connections of the Charge Point. 1 —... - Page 8 Wallbox eVolve Series - Installation Manual What’s included: Charge Point Installation CirCarLife RFID Installation CirCarLife Manual Mifare Card Manual RFID Card eVolve Key Installation Kit Cable Glands...
-
Page 9: Overview
Overview Master Smart Satellite 1 — Hat 4 — Touch screen 8” 7 — Wall support 2 — Key lock access 5 — RFID Reader 8 — Base 3 — Display LCD* 6 — Plugs* (*) Plugs may vary depending on the model... - Page 10 Wallbox eVolve Series - Installation Manual Small Measures in mm...
-
Page 11: Dimensions
Dimensions Large Measures in mm... - Page 12 Wallbox eVolve Series - Installation Manual Installation Kit: Wall plates Fixation Screw • Screws and plastic anchors are NOT INCLUDED. • The installation kit has been tested on a concrete wall. For the unit to be securely fixed in such conditions, it is recommended to use: 8 x Inox A2 wall screws: DIN 7982 Ø4,8x38 or DIN 7981 Ø4,8x38...
-
Page 13: Installation
Installation Space requirements When installing the unit, some space shall be reserved for usability, maintenance and safety reasons. Please comply accordingly to your country specifications. The next picture shows the minimum distances: Measures in mm Front view... - Page 14 Wallbox eVolve Series - Installation Manual Wall plates:...
- Page 15 Plates fixation Install the plates on the wall considering the distances shown on the image below: SMALL LARGE 1000 1000 Measures in mm Front view...
- Page 16 Wallbox eVolve Series - Installation Manual Positioning Place the unit on the previously installed wall plates.
- Page 17 Opening 1. Use provided key in order to open the unit. 2. Pull outward the Tamper switch* to operate the Charge Point. (*) Tamper Switch: The Charge Point has a security switch (anti-tamper protection) installed that will avoid any charging session if the doors are opened. It has three positions.
- Page 18 Wallbox eVolve Series - Installation Manual Unit fixation Tighten the provided fixation screw in order to secure the unit to the wall and make sure all components remain as by default before proceeding.
- Page 19 Connections Introduce connections into the Charge Point: Remove one or two of the upper or lower plugs that fit your electrical connection (A or B)*. Put your electrical connections inside the Charge Point. Put the cable gland according to the chosen plug. Put your communications connection inside the Charge Point.
- Page 20 Wallbox eVolve Series - Installation Manual Wiring WallBox with protections included: SINGLE-PHASE CHARGE POINT THREE-PHASE CHARGE POINT • Connect to the 230VAC. • Connect to the 400VAC. • If the Power Supply is Single- Phase, connect L1 and N. •...
- Page 21 WallBox without protections included: SINGLE-PHASE CHARGE POINT THREE-PHASE CHARGE POINT • Connect to the 230VAC. • Connect to the 400VAC. • The regulation IEC-61851-1 ed 3 • The regulation IEC-61851-1 ed 3 indicates each plug shall have their indicates each plug shall have their own protections upstream.
- Page 22 Wallbox eVolve Series - Installation Manual Verification 1 — P O W E R I N P U T Before proceeding, make sure voltage is present in the terminal blocks. For Three-Phase models pay special attention to Neutral Cable. 2 — M A I N T E N A N C E M O D E Pull outward the Tamper Switch located in the lower half of the Charge Point.
- Page 24 Wallbox eVolve Series - Installation Manual DATA GENERAL SPECIFICATIONS RGB Colour indicator Light beacon IP54 / IK10 Enclosure rating Aluminium & ABS Enclosure material Frontal key locked door Enclosure door Small: 25 kg Net weight Large: 30 kg Small: 222 x 382 x 628 mm...
-
Page 25: Technical Data
Technical Data GENERAL DATA SERIES LCD Multi-language Display Touch screen 8" ISO / IEC 14443A/B RFID reader MIFARE Classic/Desfire EV1 ISO 18092 / ECMA-340 NFC 13.56MHz MID Class 1 - EN50470-3 Meter 10/100BaseTX (TCP-IP) Ethernet Modem 3G / GPRS / GSM Cellular Modem 4G LTE/WiFi Hotspot/GRPS/GSM OCPP 1.5 / OCPP 1.6J... - Page 26 Wallbox eVolve Series - Installation Manual...
-
Page 27: Need Help
Need help? In case of any query or if further information is required, please contact our Post-Sales Department. support@circontrol.com circontrol.com (+34) 937 362 940 (+34) 937 362 941... - Page 28 CIRCONTROL WALLBOX eVOLVE SERIES INSTALLATION MANUAL A comprehensive guide on how to install and verify your charge point. v4.0 - May 2023. Scan me to download the User Manual R687 CIRCONTROL S.A. - ALL RIGHTS RESERVED...
