ADF7021-V

DEMODULATION, DETECTION, AND CDR

System Overview
An overview of the demodulation, detection, and clock and
data recovery (CDR) of the received signal on the ADF7021-V
is shown in Figure 46.
LIMITERS
I
CORRELATOR
Q
DEMODULATOR
LINEAR
DEMODULATOR
TxRxDATA
CLOCK
AND
DATA
TxRxCLK
RECOVERY

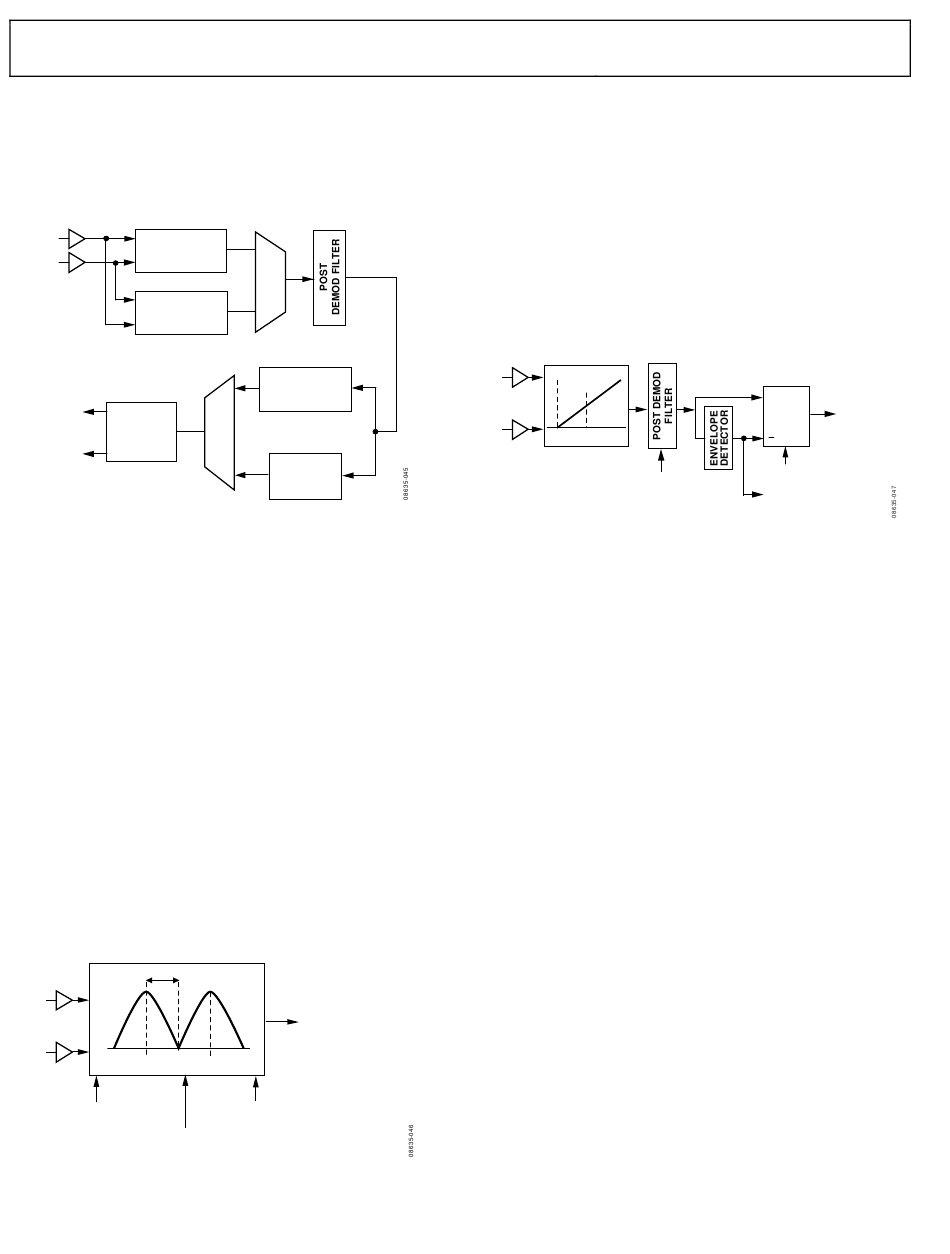

Figure 46. Overview of Demodulation, Detection, and CDR Process
The quadrature outputs of the IF filter are first limited and
then fed to either the correlator FSK demodulator or to the
linear FSK demodulator. The correlator demodulator is used
to demodulate 2FSK, 3FSK, and 4FSK. The linear demodulator
is used for frequency measurement and is enabled when the
AFC loop is active. The linear demodulator can also be used
to demodulate 2FSK.
Following the demodulator, a digital postdemodulator filter
removes excess noise from the demodulator signal output.
Threshold/slicer detection is used for data recovery of 2FSK and
4FSK. Data recovery of 3FSK can be implemented using either
threshold detection or Viterbi detection.
An on-chip CDR PLL is used to resynchronize the received bit
stream to a local clock. It outputs the retimed data and clock on
the TxRxDATA and TxRxCLK pins, respectively.
Correlator Demodulator
The correlator demodulator can be used for 2FSK, 3FSK, and
4FSK demodulation. Figure 47 shows the operation of the
correlator demodulator for 2FSK.
FREQUENCY CORRELATOR
DISCRIM BW
I
LIMITERS
Q
IF
f
IF –
IF +
DEV
REG 4, BITS[DB19:DB10]
DISCRIMINATOR_BW
REG 4, BIT DB7
DOT_PRODUCT
Figure 47. 2FSK Correlator FSK Demodulator Operation
MUX
THRESHOLD
DETECTION
2FSK/3FSK/4FSK
MUX
VITERBI
DETECTION
3FSK
OUTPUT LEVELS:
2FSK = +1, –1
3FSK = +1, 0, –1
4FSK = +3, +1, –1, –3
f
DEV
REG 4, BITS[DB9:DB8]
Rx_INVERT
The quadrature outputs of the IF filter are first limited and then
fed to a digital frequency correlator that performs filtering and
frequency discrimination of the 2FSK/3FSK/4FSK spectrum.
For 2FSK modulation, data is recovered by comparing the
output levels from two correlators. The performance of this
frequency discriminator approximates that of a matched filter
detector, which is known to provide optimum detection in the
presence of additive white Gaussian noise (AWGN). This
method of FSK demodulation provides approximately 3 dB to
4 dB better sensitivity than a linear demodulator.
Linear Demodulator
Figure 48 shows a block diagram of the linear demodulator.
I
LEVEL
IF
LIMITERS
Q
FREQUENCY
LINEAR
DISCRIMINATOR
Figure 48. Block Diagram of Linear FSK Demodulator
A digital frequency discriminator provides an output signal that
is linearly proportional to the frequency of the limiter outputs.
The discriminator output is filtered and averaged using a com-
bined averaging filter and envelope detector. The demodulated
2FSK data from the postdemodulator filter is recovered by
slicing against the output of the envelope detector, as shown in
Figure 48. This method of demodulation corrects for frequency
errors between the transmitter and receiver when the received
spectrum is close to or within the IF bandwidth. This envelope
detector output is also used for AFC readback and provides the
frequency estimate for the AFC control loop.
Postdemodulator Filter
A second-order, digital low-pass filter removes excess noise from
the demodulated bit stream at the output of the discriminator.
The bandwidth of this postdemodulator filter is programmable
and must be optimized for the user's data rate and the received
modulation type. If the bandwidth is too narrow, performance
degrades due to intersymbol interference (ISI). If the bandwidth
is too wide, excess noise degrades the performance of the receiver.
The POST_DEMOD_BW bits (Register 4, Bits[DB29:DB20])
set the bandwidth of this filter.
Rev. 0 | Page 30 of 60
+
SLICER
2FSK
RxCLK
REG 4, BITS[DB29:DB20]
FREQUENCY
READBACK
AND AFC LOOP
2FSK RxDATA
