3 SET UP

3.1 Introduction

Note. Users with Setup access can:
• Start/Stop recording.
• Switch between primary and secondary recording rates.
• Set archiving 'on-line' and 'off-line'.
• View internal and external archive media file directories and delete files.
3.2 Accessing the Setup Level – Figs. 3.1 and 3.2
Access to the Setup Level is controlled by the instrument's Security System – see Section 4.4.4.
• If 'Security System' is set to 'Basic' and 'Setup Level Security' is set to 'Off', access to the Setup Level is unrestricted.
• If 'Security System' is set to 'Basic' and 'Setup Level Security' is set to 'On', access to the Setup Level is protected by a single
password for all users. Refer to Fig. 3.1 to access the Setup Level.
• If 'Security System' is set to 'Advanced' and 'Setup Level Security' is set to 'On', access to the Setup Level is protected by a
unique password for each authorized user. Refer to Fig. 3.2 to access the Setup Level.
Process Group 1
Level Pressure In Flow Out Flow
2.08 4 204.9 198.9
metres bar l/hr
0
High Out Flow Rate
12:00:00
11:59:00
11:58:00
High Level
11:57:00
Setup
Setup Security
Not Enabled
05/10/04
12:00:56
Temp Alarm 1
195 On
l/hr °C
10
Note. The Setup level can be
accessed from any operator screen.
Setup
Security
Enabled

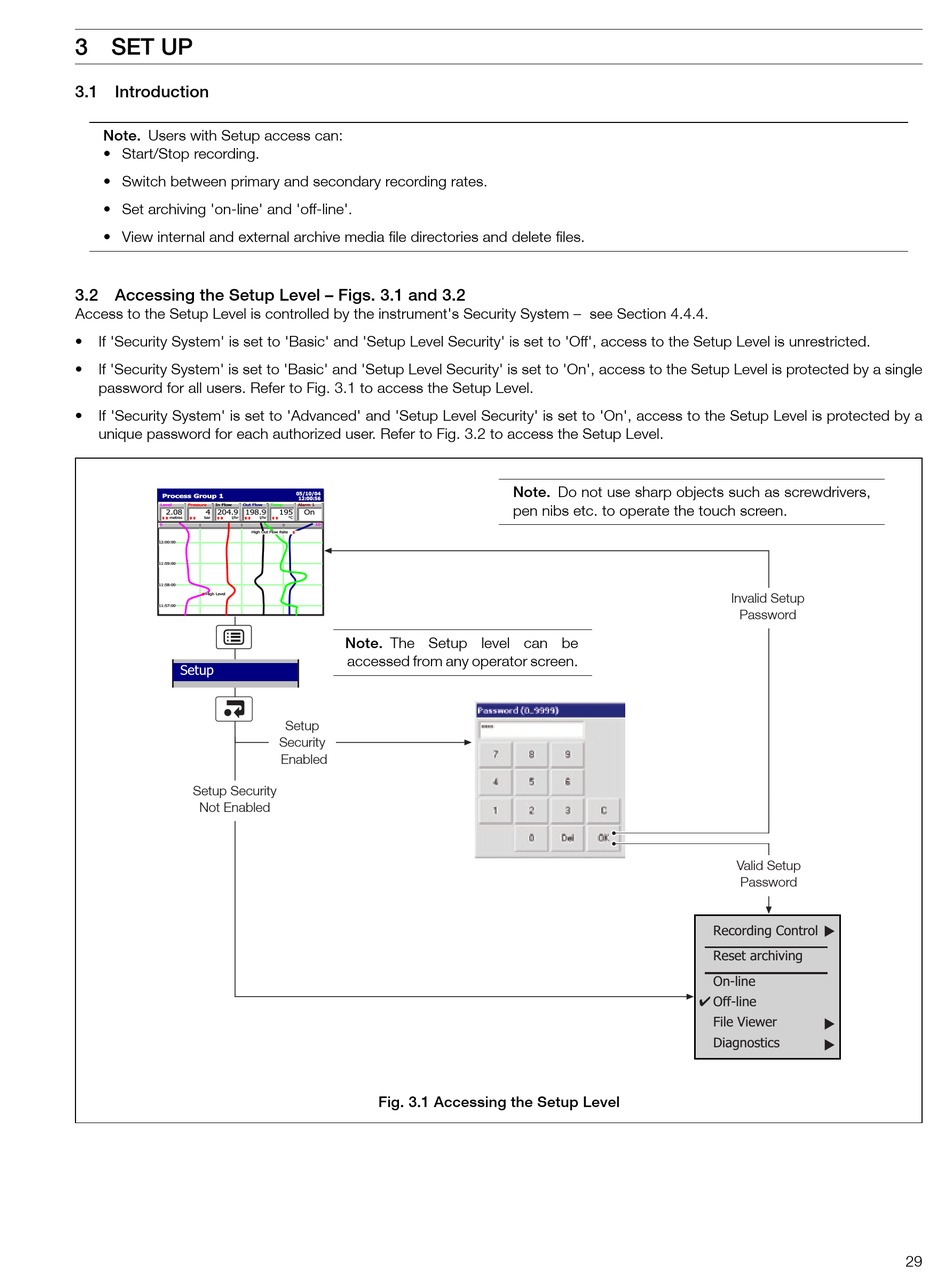

Fig. 3.1 Accessing the Setup Level
Note. Do not use sharp objects such as screwdrivers,
pen nibs etc. to operate the touch screen.
Invalid Setup
Password
Valid Setup
Password
Recording Control
Reset archiving
On-line
 Off-line
File Viewer
Diagnostics
