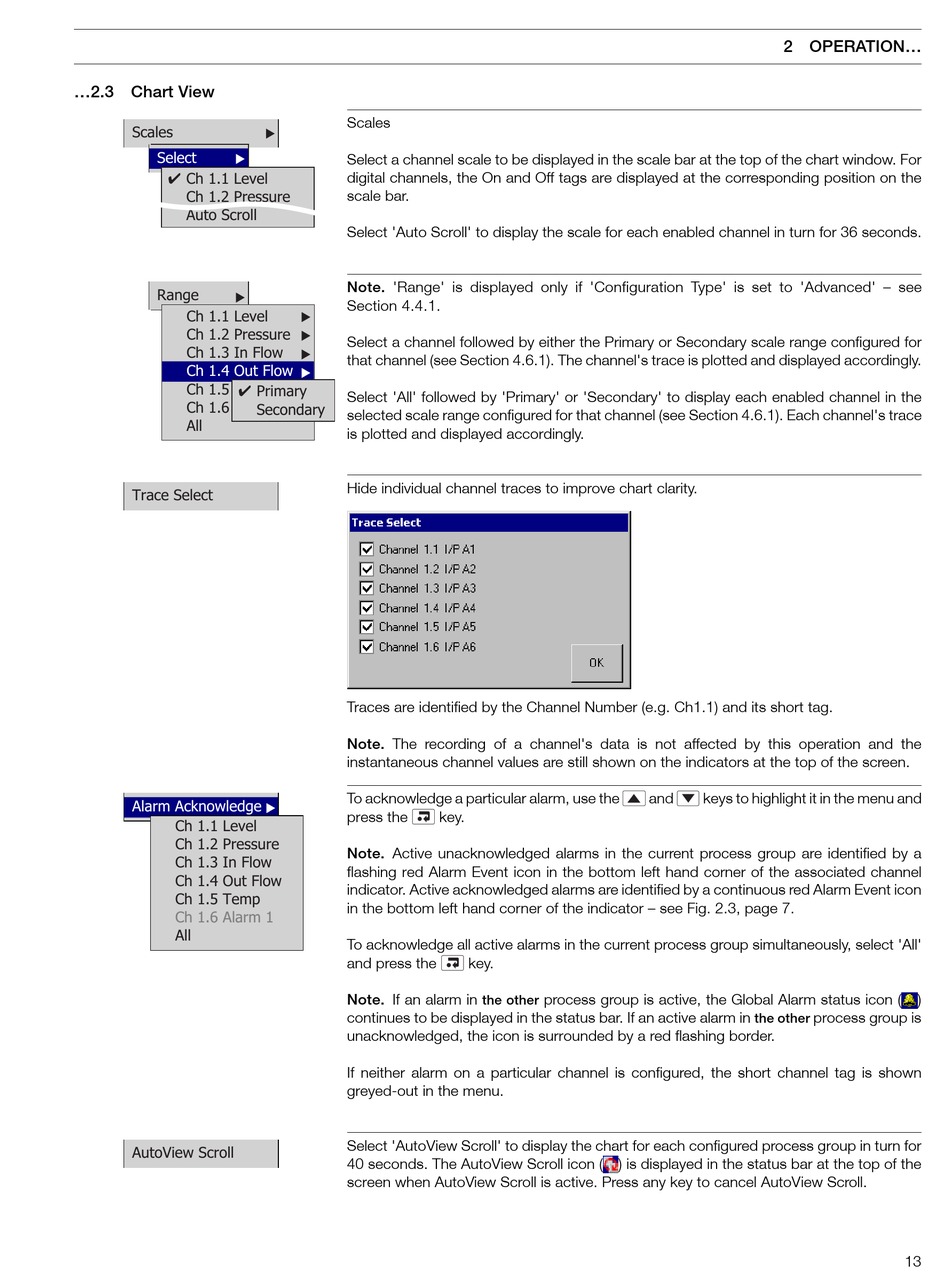

...2.3 Chart View
Scales
Select
Ch 1.1 Level
Ch 1.2 Pressure
Auto Scroll
Range
Ch 1.1 Level
Ch 1.2 Pressure
Ch 1.3 In Flow
Ch 1.4 Out Flow
Ch 1.5 Temp
Primary
Ch 1.6 Alarm 1
All
Trace Select
Alarm Acknowledge
Ch 1.1 Level
Ch 1.2 Pressure
Ch 1.3 In Flow
Ch 1.4 Out Flow
Ch 1.5 Temp
Ch 1.6 Alarm 1
All
AutoView Scroll
Scales
Select a channel scale to be displayed in the scale bar at the top of the chart window. For
digital channels, the On and Off tags are displayed at the corresponding position on the
scale bar.
Select 'Auto Scroll' to display the scale for each enabled channel in turn for 36 seconds.
Note. 'Range' is displayed only if 'Configuration Type' is set to 'Advanced' – see
Section 4.4.1.
Select a channel followed by either the Primary or Secondary scale range configured for
that channel (see Section 4.6.1). The channel's trace is plotted and displayed accordingly.
Select 'All' followed by 'Primary' or 'Secondary' to display each enabled channel in the
Secondary
selected scale range configured for that channel (see Section 4.6.1). Each channel's trace
is plotted and displayed accordingly.
Hide individual channel traces to improve chart clarity.
Traces are identified by the Channel Number (e.g. Ch1.1) and its short tag.
Note. The recording of a channel's data is not affected by this operation and the
instantaneous channel values are still shown on the indicators at the top of the screen.
To acknowledge a particular alarm, use the
press the
Note. Active unacknowledged alarms in the current process group are identified by a
flashing red Alarm Event icon in the bottom left hand corner of the associated channel
indicator. Active acknowledged alarms are identified by a continuous red Alarm Event icon
in the bottom left hand corner of the indicator – see Fig. 2.3, page 7.
To acknowledge all active alarms in the current process group simultaneously, select 'All'
and press the
Note. If an alarm in
continues to be displayed in the status bar. If an active alarm in
unacknowledged, the icon is surrounded by a red flashing border.
If neither alarm on a particular channel is configured, the short channel tag is shown
greyed-out in the menu.
Select 'AutoView Scroll' to display the chart for each configured process group in turn for
40 seconds. The AutoView Scroll icon ( ) is displayed in the status bar at the top of the
screen when AutoView Scroll is active. Press any key to cancel AutoView Scroll.
key.
key.
process group is active, the Global Alarm status icon (
the other
2 OPERATION...
and
keys to highlight it in the menu and
process group is
the other
)
13
