...2 OPERATION

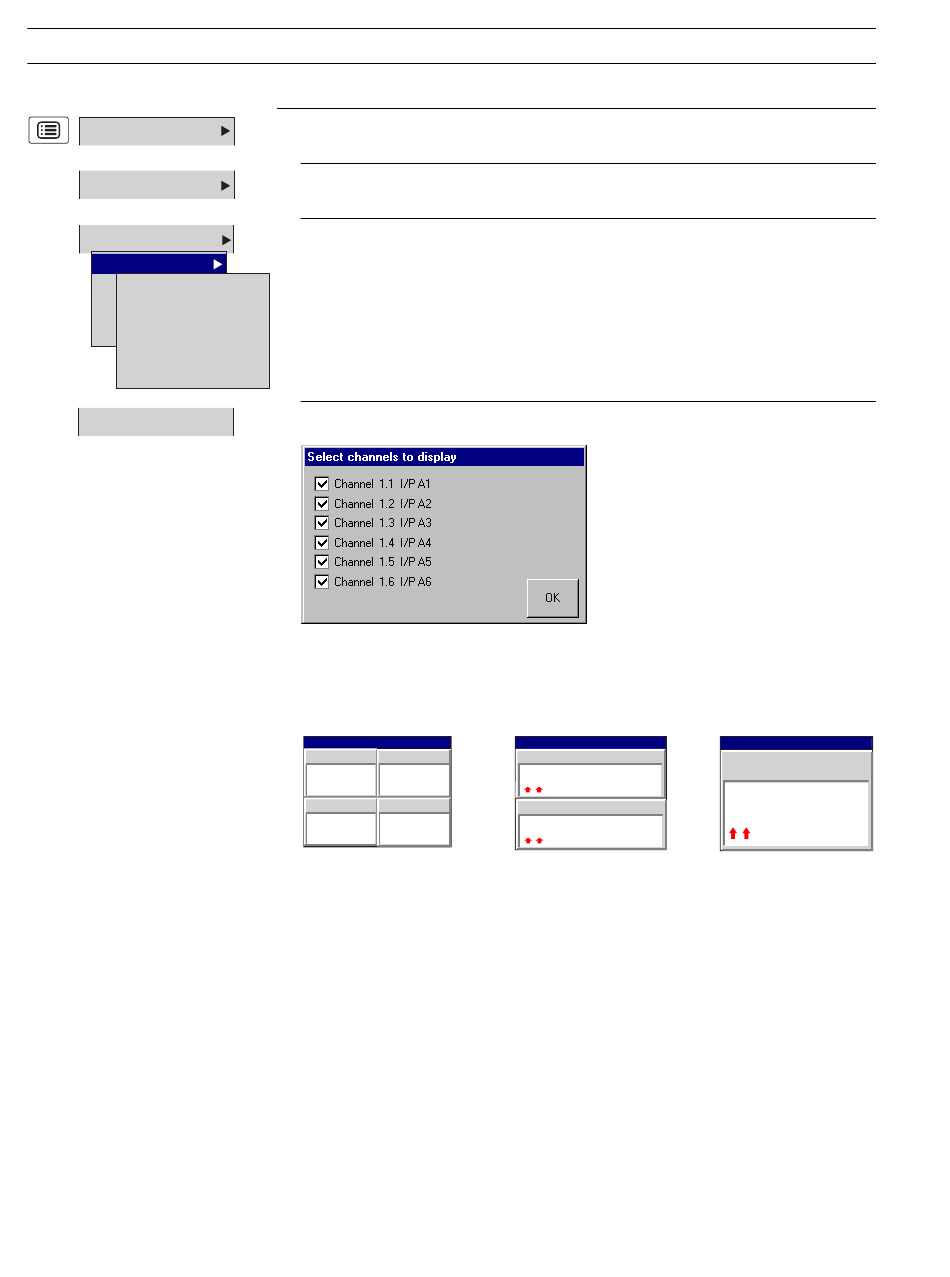

...2.5 Digital Indicator View
Configuration
Setup
Operator Messages
1 - 6
7 - 12
Start of batch
13 - 18
End of batch
19 - 24
Standby mode active
<user defined>
Cleaning in progress
No message
No message
Channel Select
18
Select the Configuration level – see Section 4.
Select the Setup level – see Section 3.
Add one of 24 predefined Operator Messages (see Section 4.4.5) or one User-Defined
Message to the alarm event log. If '<user defined>' is selected, a data entry keyboard
appears to enable the message to be entered – see Fig. 4.5, page 49. The selected or
user-defined message is displayed briefly on-screen.
Hide or display individual channel indicators for the group currently displayed.
Notes.
• The digital indicators displayed are sized equally depending on the number of channels
selected. This has no effect on the recording of the channel.
• Channels that have not been configured are greyed-out in the menu.
28/03/00
Process Group 1
14:52:00
Level
In Flow
204.4
26.78
metres gal/hr
0005402801
3
m
Out Flow Temp
198.4 195
gal/hr °C
0005402060
m 3
Three or Four
Channels Selected
28/03/00
Process Group 1
14:52:00
In Flow
204.4
gal/hr
0005402801
m 3
Out Flow
198.4
gal/hr
m 3
Two Channels Selected
28/03/00
Process Group 1
14:52:00
In Flow
204.4
gal/hr
3
0005402801 m
One Channel Selected
