4.4 Common Configuration
4.4.1 Setup
•1 If this parameter is changed, internally recorded data files are recreated and unarchived data is lost.

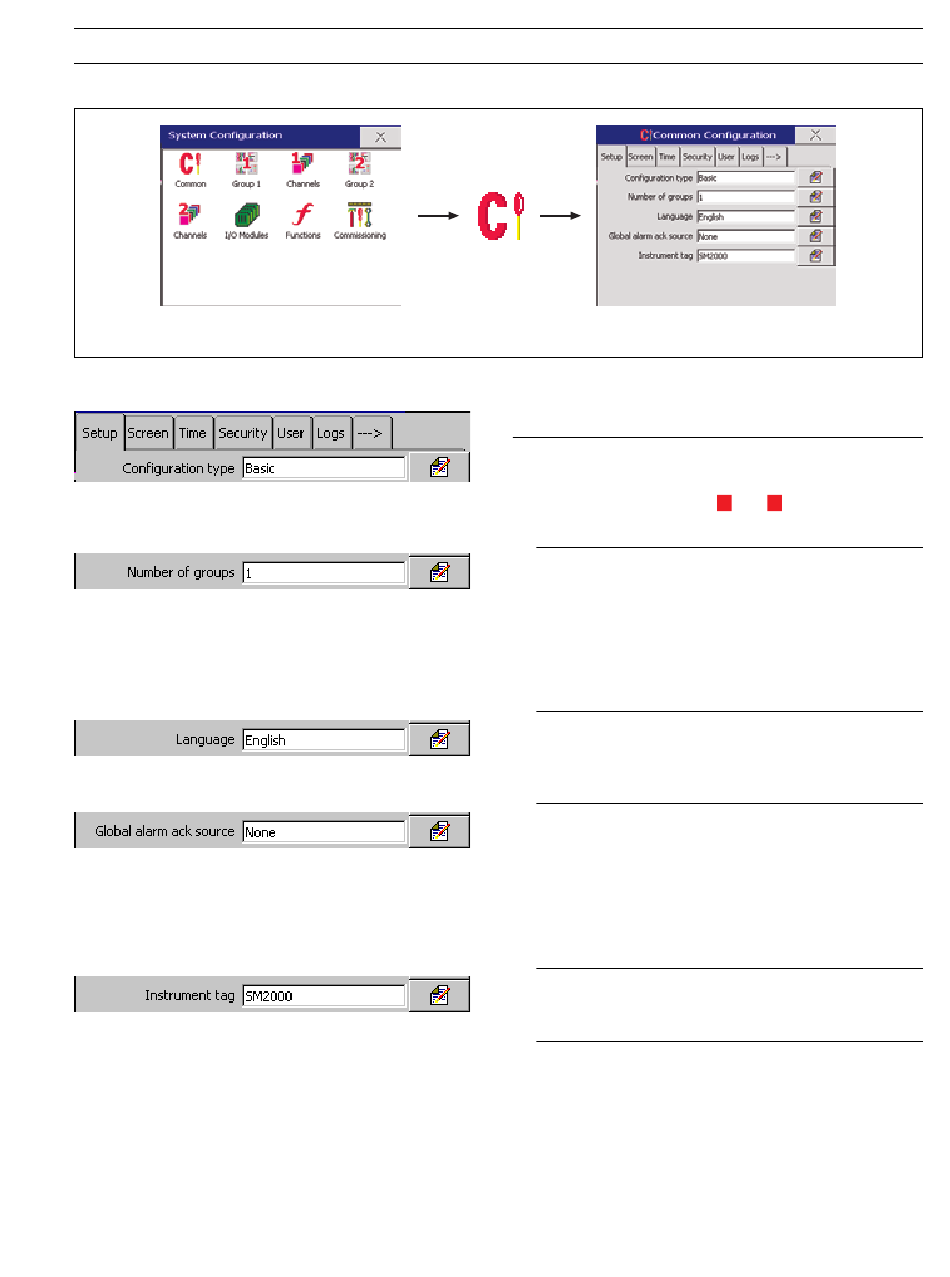

Fig. 4.7 Selecting Common Configuration
•1
•1
Select the Configuration type required – see Section 4.1.1.
Note. Parameters applying only to Advanced or to Basic
Configuration are identified
Enter the number of Process Groups required.
Each Process Group has 6 recording channels pre-assigned
to it – Group 1 (Ch1.1 to 1.6), Group 2 (Ch2.1 to 2.6).
If the Number of Groups is changed from 2 to 1,
configuration data for Process Group 2 is retained but not
used.
Select the language to be used to display standard user
prompts and menu items.
Select a signal source used to acknowledge all active alarms
in both Process Groups simultaneously. Refer to APPENDIX 1
for a description of the available sources.
Note. This signal is edge-triggered. A rising edge (inactive to
active) or falling edge (active to inactive) triggers global alarm
acknowledgement.
Enter the tag to be used to identify the instrument on
configuration and audit log files.
Select the waiting time between the last key press and
activation of the screen saver.
4 CONFIGURATION...
A
B
and
respectively.
