...2 OPERATION

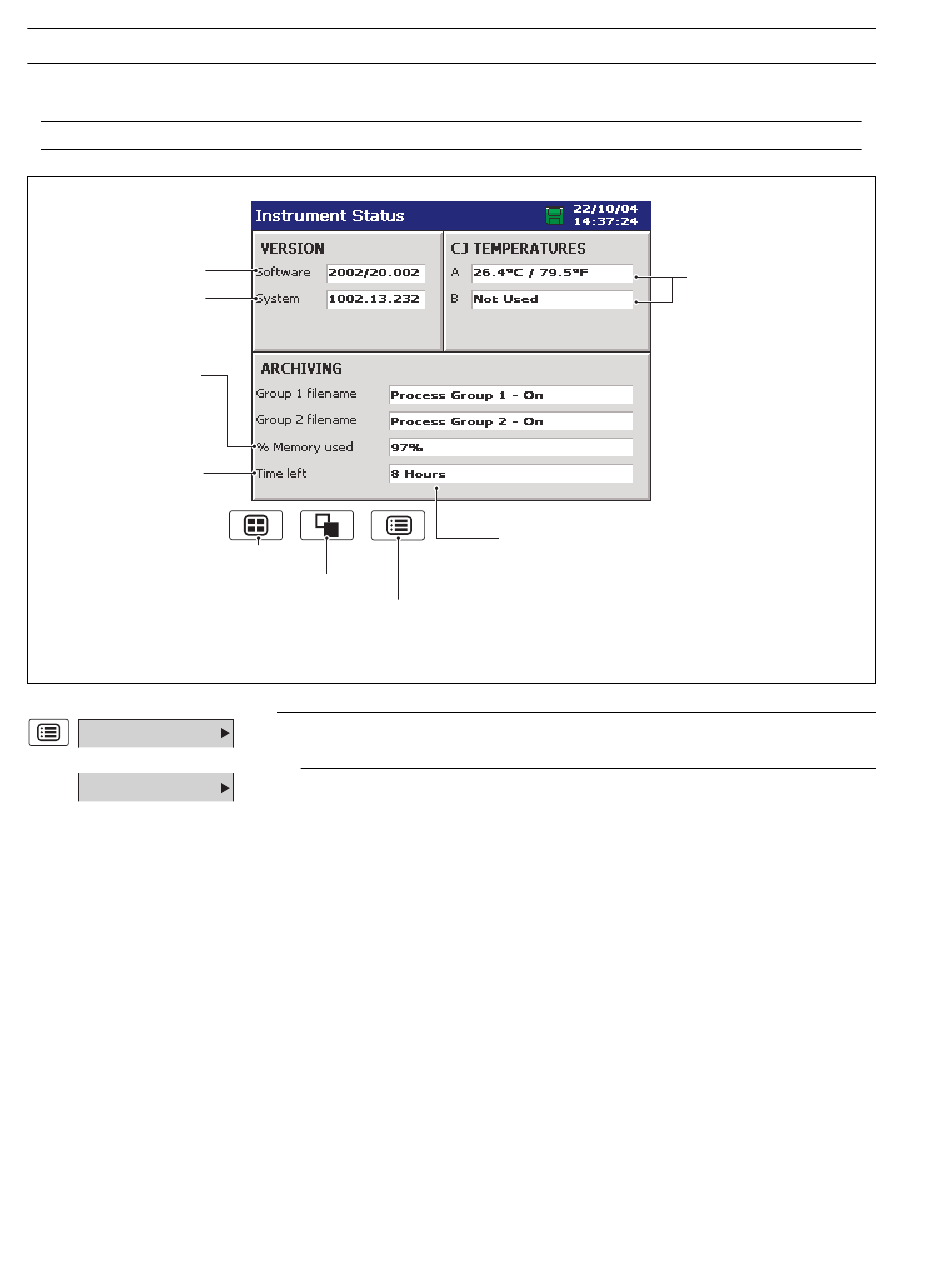

2.10 Status View – Fig. 2.11
Note. The Status view provides an overview of the instrument's status.
Instrument Software Version
Operating System Version
Amount of memory used
on the archive media
currently installed
Approximate time left
before the current archive
media is full, assuming the
amount of data recorded
remains the same
Selects Process Group 1
Selects the Alarm Event Log
Configuration
Setup
28
Opens the Operator Menu for
the current view
Fig. 2.11 Status View
Select the Configuration level – see Section 4.
Select the Setup level – see Section 3.
Time Left
Display Format
>=1 Day:
Days, e.g. '5 Days'
>=1 Hour, <1 Day: Hours, e.g. '10 hours'
<1 Hour:
Minutes, e.g. '25 minutes'
Cold junction temperatures
for Modules A & B; measured
by the built-in cold junction
circuitry.
'Not Used' is displayed if none
of the inputs on the module
are thermocouples.
