...4.7.3 Hybrid Modules
4.7.4 Ethernet Modules
Refer to the Ethernet Communications Option User Guide Supplement (IM/SMENET) for information on how to install, configure and
use the instrument on an Ethernet network and for information on configuring and using the e-mail facility.

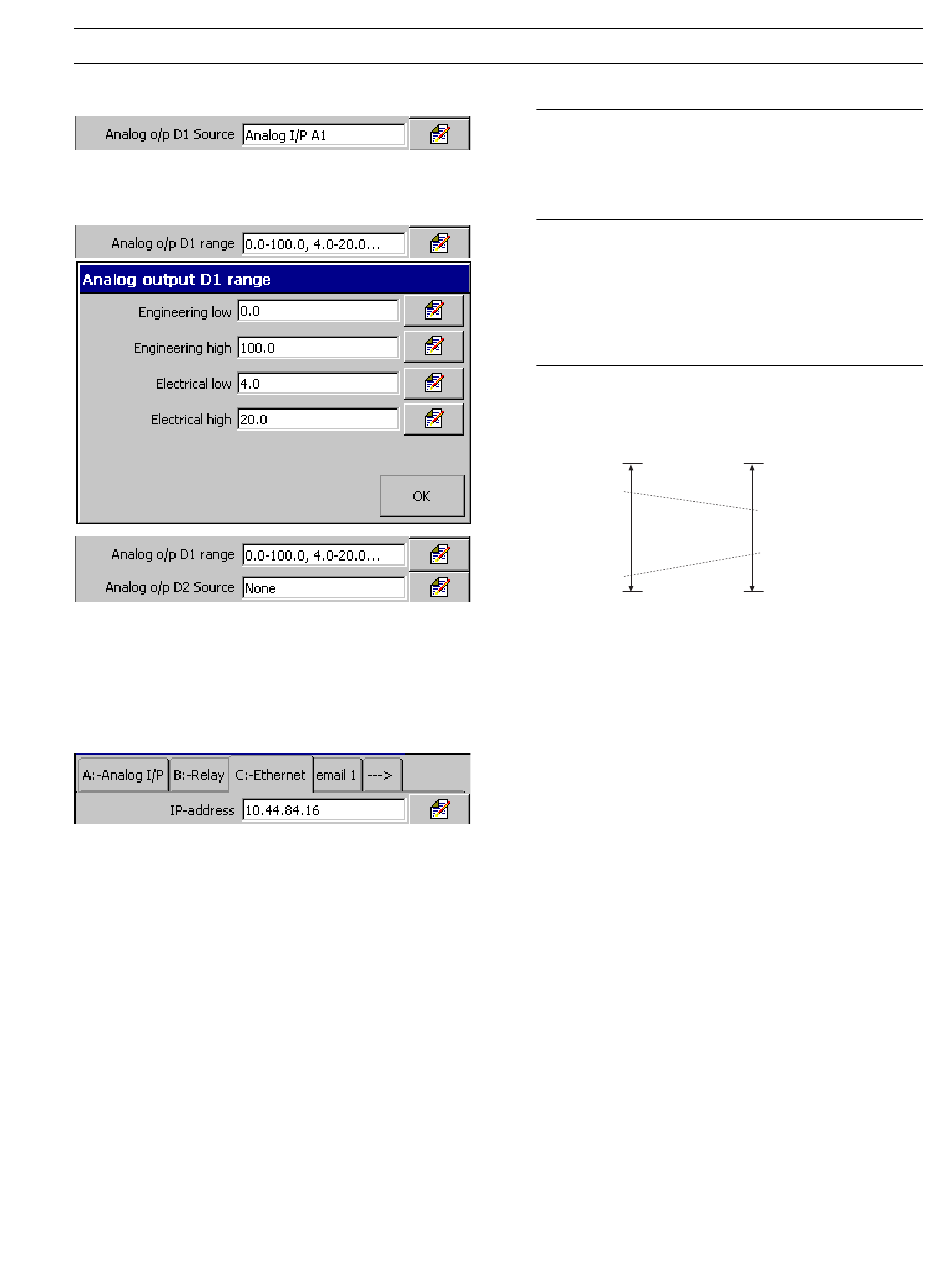

Select the analog output source.
Note. The analog output source can be any internal or
external analog signal.
Set the required analog output engineering and electrical
ranges.
Note. The 'Engineering low' and 'Engineering high' settings
are the engineering values corresponding to the 'Electrical
low' and 'Electrical high' values below.
The 'Electrical low' and 'Electrical high' values are the
minimum and maximum values of the current output, in
Electrical units – range 0 to 21mA.
Source Range H igh
Analog Output
Engineering High
Analog Output
Engineering Low
Source Range Low
4 CONFIGURATION...
21mA
Analog Output
Electrical High
Analog Output
Electrical Low
0mA
93
