...4 CONFIGURATION

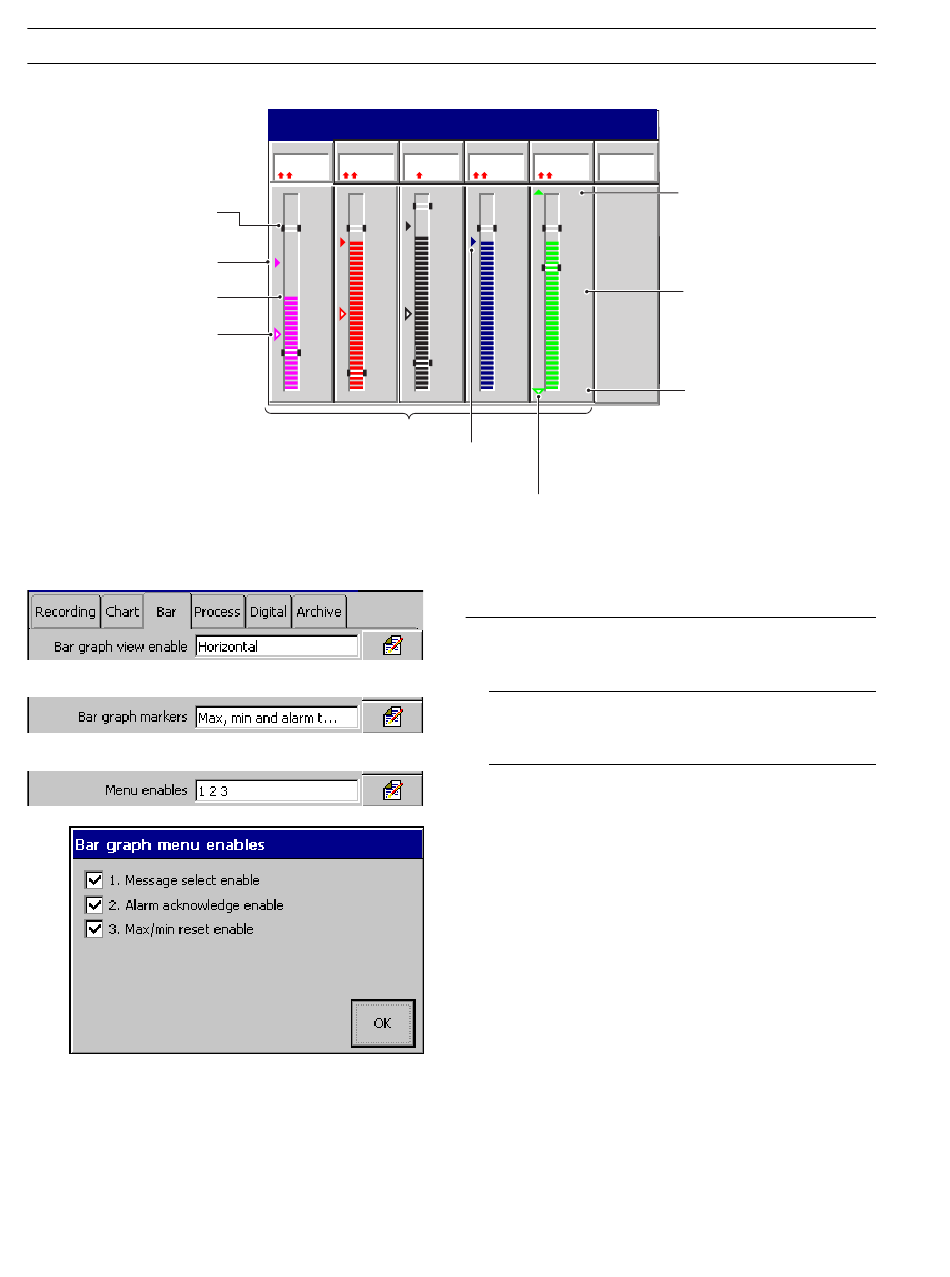

4.5.3 Configuring the Bargraph View
Alarm Trip Level
(not shown for slow and
fast rate alarms)
Maximum Value
(solid color)
Instantaneous Value
Minimum Value
(white fill)
66
Group 1
Level
Pressure
In Flow
2.08
4
204.9
metres
bar
l/hr
5.0
5.0
300
2.5
2.5
150
0.0
0.0
0
Analog Channels
Identical Maximum
and Minimum
28/03/00
14:52:00
Out Flow
Temp
Alarm 1
198.9
195
On
l/hr
°C
300
250
150
125
0.0
0
Digital
Channel
Values
Minimum below
engineering limit,
maximum above
engineering limit
Select the Bargraph views to be displayed in the current
Process Group.
Select the markers (channel-colored max./min. indicators
and alarm trip points) to be displayed on the bargraph.
Select the menu items to be accessible from the Bargraph
views.
Message select enable
Enables the Operator to activate one of 24 pre-configured
messages or a user-defined message.
Alarm acknowledge enable
Enables the Operator to acknowledge any alarms
associated with the current group.
Max/min reset enable
Enables the Operator to reset the maximum and minimum
values of one or more channels to the current value.
Note. Menu items that are not enabled are greyed-out in the
Bargraph menu.
Engineering High Value
Engineering Middle Value
Engineering Low Value
