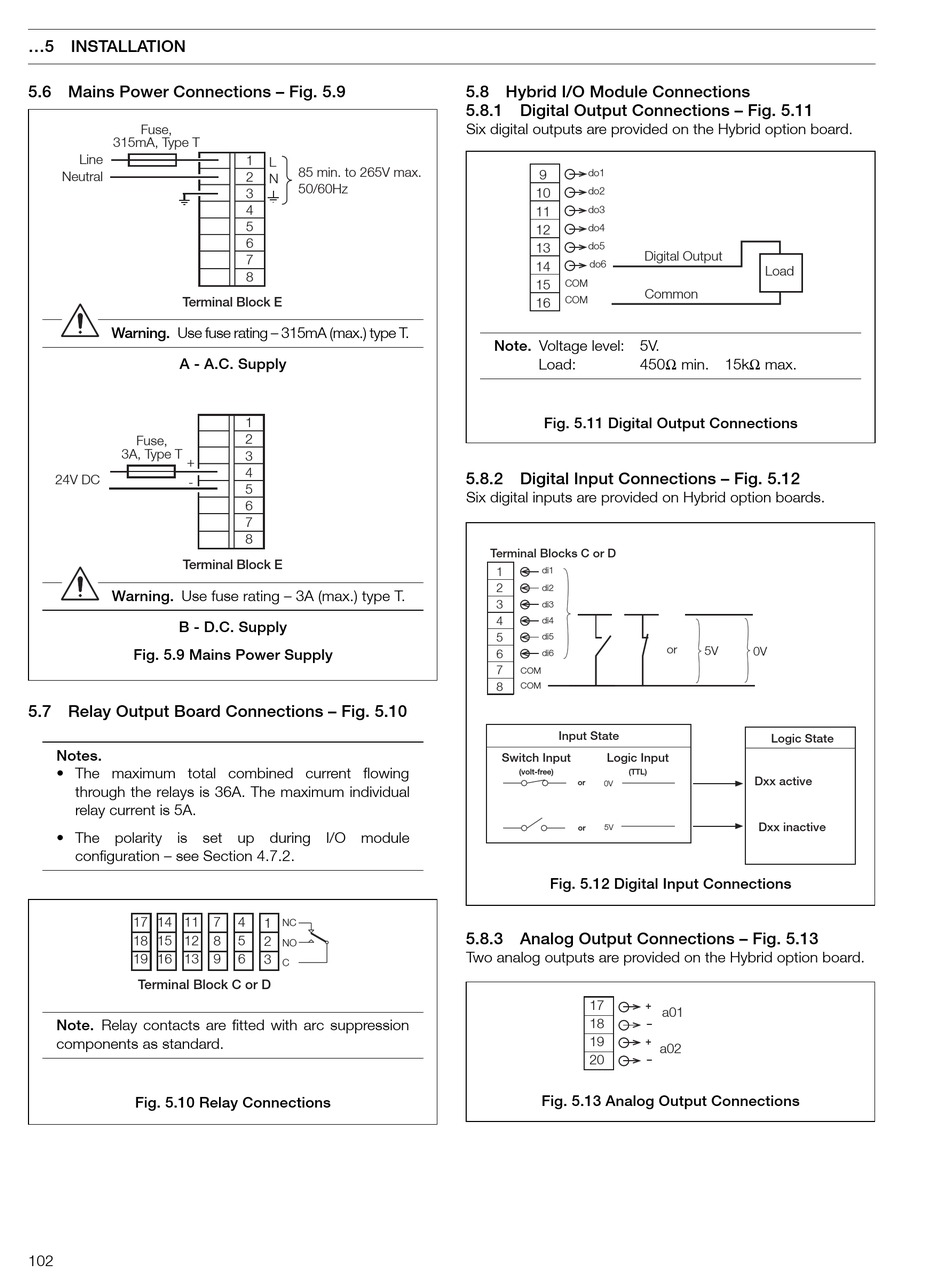

5.6 Mains Power Connections – Fig. 5.9
Fuse,
315mA, Type T
Line
Neutral
Terminal Block E
Warning. Use fuse rating – 315mA (max.) type T.
A - A.C. Supply
Fuse,
3A, Type T
+
24V DC
-
Terminal Block E
Warning. Use fuse rating – 3A (max.) type T.
B - D.C. Supply
Fig. 5.9 Mains Power Supply
5.7 Relay Output Board Connections – Fig. 5.10
Notes.
• The maximum total combined current flowing
through the relays is 36A. The maximum individual
relay current is 5A.
• The polarity is set up during I/O module
configuration – see Section 4.7.2.
17 14 11
18 15 12
19 16 13
Terminal Block C or D
Note. Relay contacts are fitted with arc suppression
components as standard.
Fig. 5.10 Relay Connections
102
1
L
85 min. to 265V max.
2
N
50/60Hz
3
4
5
6
7
8
1
2
3
4
5
6
7
8
7 4
1 NC
8 5
2
NO
9 6
3
C

5.8 Hybrid I/O Module Connections

5.8.1 Digital Output Connections – Fig. 5.11
Six digital outputs are provided on the Hybrid option board.
do1
9
10 do2
do3
11
do4
12
13 do5
Digital Output
do6
14
15 COM
Common
COM
16
Note. Voltage level: 5V.
Load: 450 min.
Fig. 5.11 Digital Output Connections
5.8.2 Digital Input Connections – Fig. 5.12
Six digital inputs are provided on Hybrid option boards.
Terminal Blocks C or D
1 di1
2 di2
3
di3
4
di4
5 di5
6
di6
7
COM
8 COM
Input State
Switch Input Logic Input
(volt-free) (TTL)
or
0V
or 5V
Fig. 5.12 Digital Input Connections
5.8.3 Analog Output Connections – Fig. 5.13
Two analog outputs are provided on the Hybrid option board.
17
18
19
20
Fig. 5.13 Analog Output Connections
Load
15k max.
or
5V
0V
Logic State
Dxx active
Dxx inactive
+
a01
–
+
a02
–
