...4 CONFIGURATION

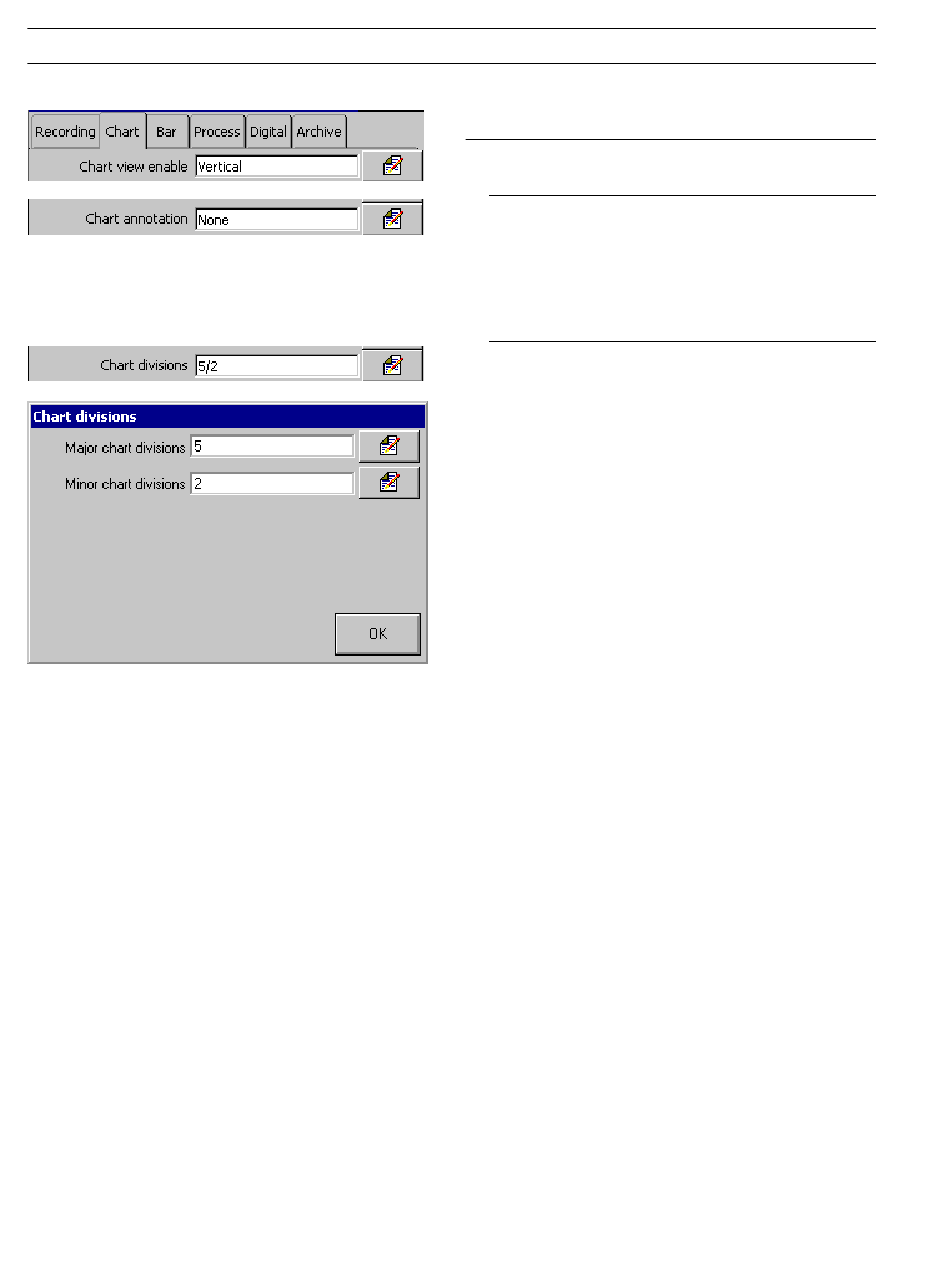

...4.5.2 Configuring the Chart View
64
Select the Horizontal or Vertical chart view.
Select the annotations to be displayed on the chart. Alarm
events and operator messages are displayed on the chart
adjacent to the point at which the alarm occurred – see
Section 2.3.
This initial setting can be changed by the operator if 'Chart
annotation select enable' is enabled in the Chart view menu
enables – see 'Menu Enables' on the next page.
Select the number of major and minor chart divisions to be
displayed on the chart and its scale bar.
Select the number of major vertical divisions to be displayed.
Select the number of minor vertical divisions to appear
between the major chart divisions.
