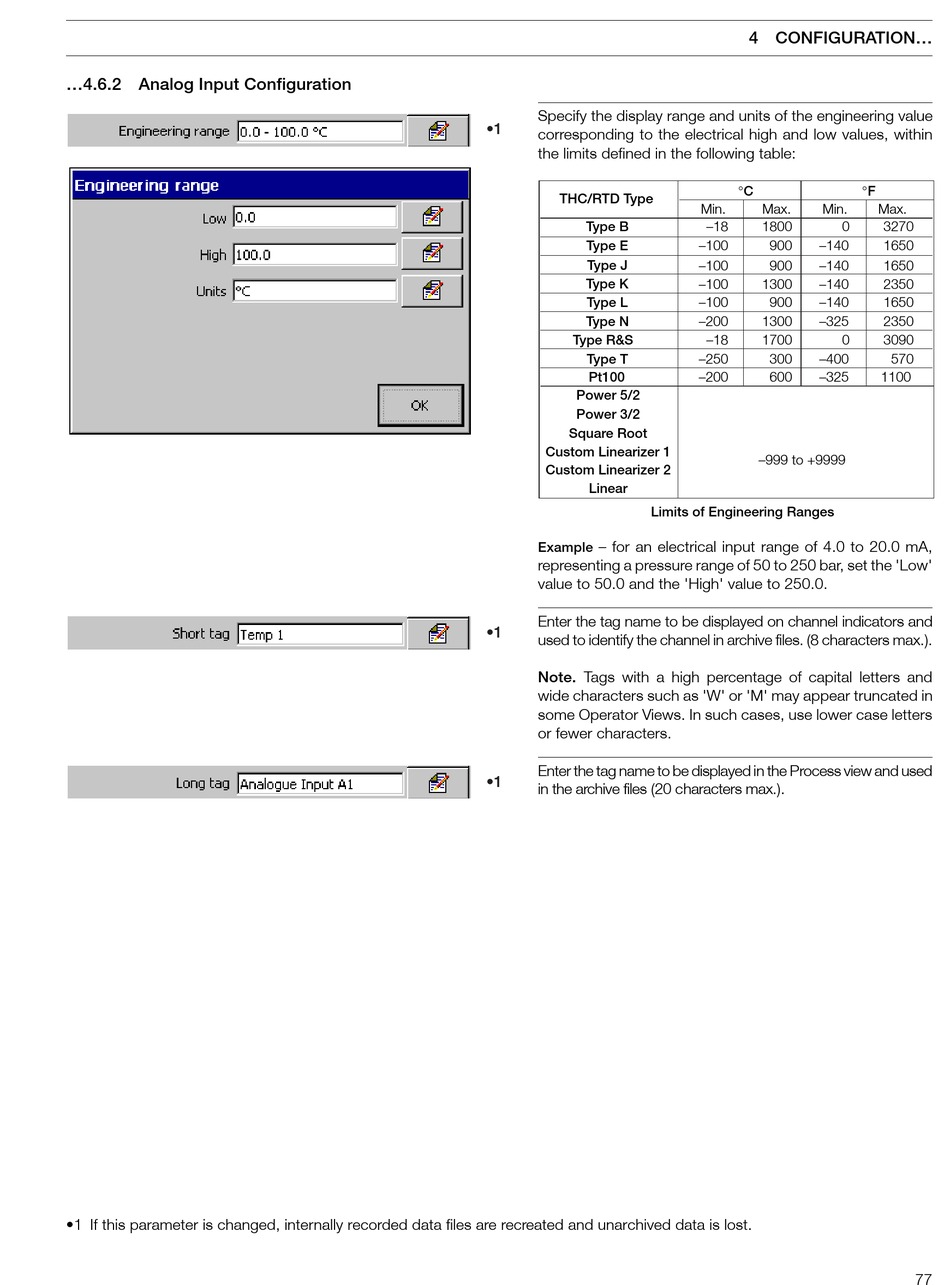

...4.6.2 Analog Input Configuration
•1 If this parameter is changed, internally recorded data files are recreated and unarchived data is lost.
Specify the display range and units of the engineering value
•1
corresponding to the electrical high and low values, within
the limits defined in the following table:
THC/RTD Type
Type B
Type E
Type J
Type K
Type L
Type N
Type R&S
Type T
Pt100
Power 5/2
Power 3/2
Square Root
Custom Linearizer 1
Custom Linearizer 2
Linear
Limits of Engineering Ranges
– for an electrical input range of 4.0 to 20.0 mA,
Example
representing a pressure range of 50 to 250 bar, set the 'Low'
value to 50.0 and the 'High' value to 250.0.
Enter the tag name to be displayed on channel indicators and
•1
used to identify the channel in archive files. (8 characters max.).
Note. Tags with a high percentage of capital letters and
wide characters such as 'W' or 'M' may appear truncated in
some Operator Views. In such cases, use lower case letters
or fewer characters.
Enter the tag name to be displayed in the Process view and used
•1
in the archive files (20 characters max.).
4 CONFIGURATION...
C
F
Min.
Max.
Min.
Max.
–18
1800
0
–100
900
–140
–100
900
–140
–100
1300
–140
–100
900
–140
–200
1300
–325
–18
1700
0
–250
300
–400
–200
600
–325
–999 to +9999
3270
1650
1650
2350
1650
2350
3090
570
1100
77
