...4.3 Making Changes to Parameters – Figs. 4.4 to 4.6
Notes.
• The current, active, configuration is saved on internal storage with the filename 'SM2000.cfg'.
• Selecting 'Save as Current Configuration' suspends recording for a short time while the new configuration is
implemented.
• When saving the current configuration to internal storage, the file is saved automatically with the 'SM2000.cfg'
filename, and with a <time><date><instrument tag>.cfg filename.
• When saving the current configuration to external storage, the file is saved automatically to internal storage with the
'SM2000.cfg' filename, as well as to the external archive media as <time><date><instrument tag>.cfg.
• When 'Save Configuration' is selected the configuration file is stored as <time><date><instrument tag>.cfg on
internal or external storage.
• Changes are saved to non-volatile memory only when one of the save options above has been selected. Any
powerdown before this results in lost configuration changes.
• Selecting 'Cancel' causes unsaved changes to be discarded and returns the instrument to the Operating level.
• New internal data files for enabled recording channels are created if any of the following configuration parameters are
changed:
– Recording channel source
– Secondary sample rate
– Input filter type
– Channel tag
• New internal data files for all enabled recording channels are created if the number of groups is changed or any
previously disabled channel is enabled. Any unarchived data is lost.
• A warning is displayed if a configuration change will result in new internal data files for enabled recording channels
being created. Select 'Yes' to accept the configuration change. Select 'No' to cancel the configuration change.
50
Configuration
change will
cause the internal
recording data
files to be
recreated
Configuration
change will not
cause the internal
recording data
files to be
recreated
– Primary sample rate
– Primary/Secondary sample rate source
– Engineering range
– Configuration type

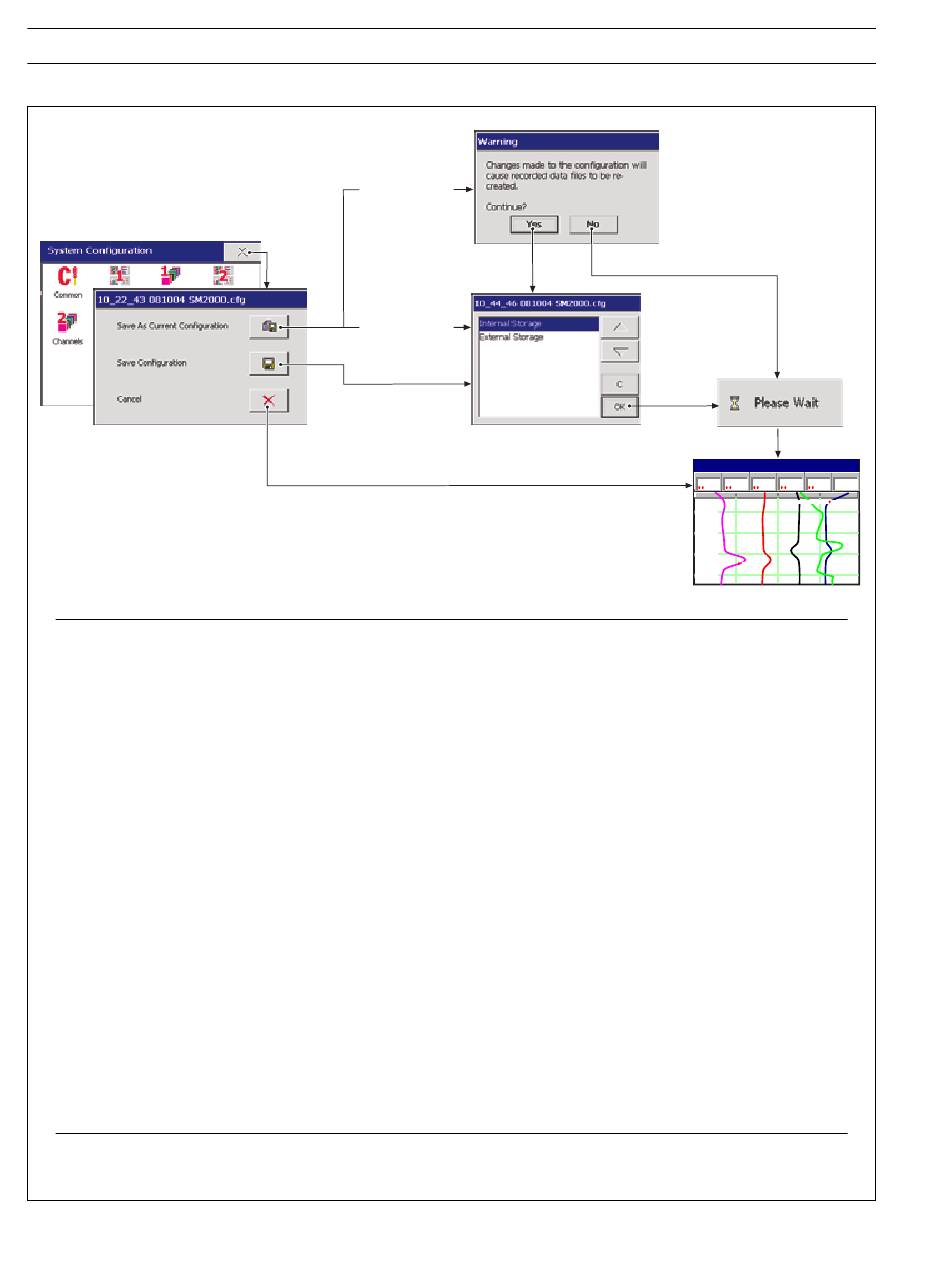

Fig. 4.6 Exiting Configuration Mode
08/10/04
Process Group 1
12:00:53
Level Pressure In Flow Out Flow Temp Alarm 1
2.08 4 204.9 198.9 195 On
metres bar l/hr l/hr °C
0 10
High Out Flow Rate
12:00:00
11:59:00
11:58:00
High Level
11:57:00
