...3.4 Setup Menu
On-Line
Off-Line
File Viewer
Internal
External
Places the archive media on-line, starting the archiving process.
Notes.
• The On-line function is disabled (greyed-out in the Setup Menu) if no archive media
card is inserted or the instrument has been placed in Historical Review mode.

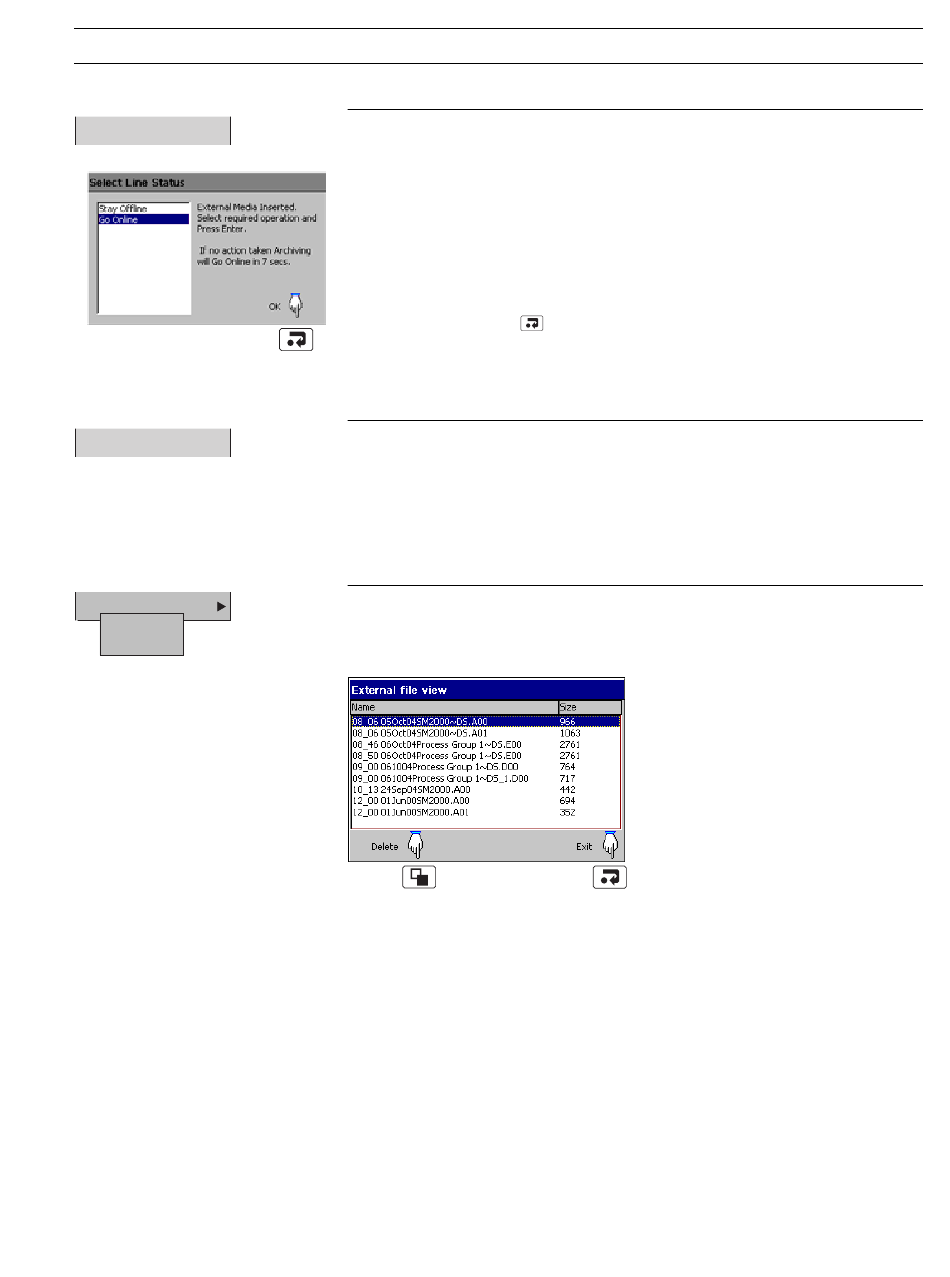

• When an archive media card is inserted and there is <1 day of data in internal memory,
the 'Select Line Status' dialog box (left) is displayed, giving the user the choice of
placing archiving on-line or remaining off-line. Archiving is placed automatically on-line
in 10 seconds unless 'Stay Offline' is selected.
• When an archive media card is inserted and there is >1 day of data in internal memory,
the 'Select data to be archived' dialog box (previous page) is displayed. Select data to
be archived and press
Once selected, all data within the selected time frame is archived. Older unarchived data
remains in the internal memory buffer until overwritten by newer data but is not available for
archiving unless 'Reset archiving' is selected.
Places the archive media off-line. Recording of channel data into internal memory
continues uninterrupted but archiving to the removable media is suspended until it is put
on-line again.
Notes.
• Always set the external media Off-line before removing it.
• The Off-line function is disabled (greyed-out in the Setup Menu) when in Historical
Review mode.
Use the file viewer to view a list of the files stored in internal memory and on external archive
media.
Note. Files stored in internal memory cannot be deleted.
.
