...3 SET UP
...3.2 Accessing the Setup Level – Figs. 3.1 and 3.2
28/03/00
Process Group 1
14:52:00
Level Pressure In Flow Out Flow Temp Alarm 1
2.08 4 204.9 198.9 195
metres bar l/hr l/hr °C
0
High Out Flow Rate
12:00:00
11:59:00
11:58:00
High Level
11:57:00
Setup
Setup
Security
Enabled
Setup Security
Not Enabled
Note. If an incorrect password is entered the display
returns to the Operating view. However, if the
maximum number of consecutive incorrect password
entries is exceeded, the user's access privileges are
removed and the following message is displayed:
If this occurs, access privileges can be reinstated only
by the system administrator (User 1). If the system
administrator's access privileges have been removed,
the security system must be disabled using the
configuration security switch (Yellow switch) to gain
access to the configuration – see Section 4.1.2.
30
On
10
Note. The Setup level can be
accessed from any operator screen.
Operator 1

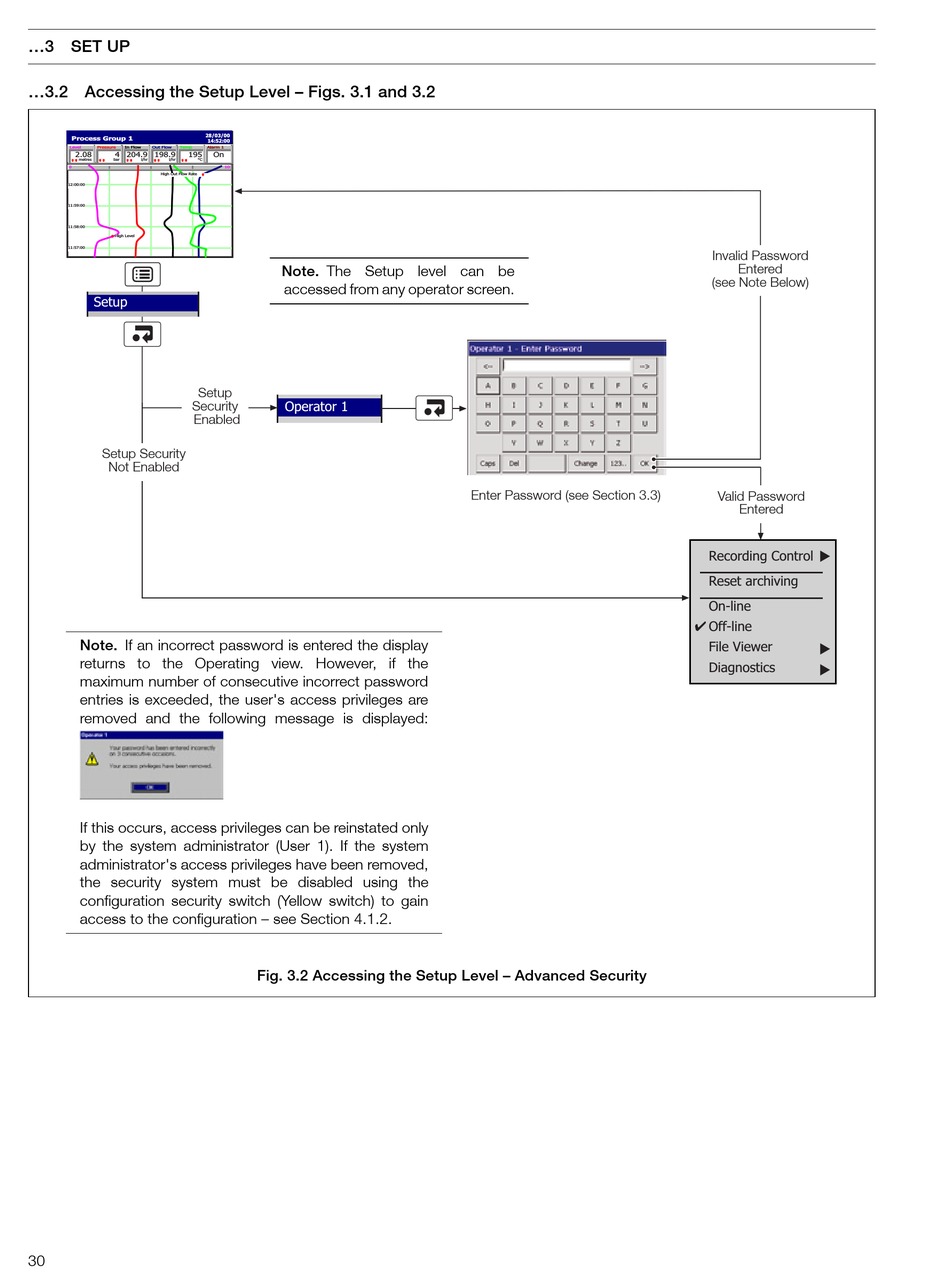

Fig. 3.2 Accessing the Setup Level – Advanced Security
Enter Password (see Section 3.3)
Invalid Password
Entered
(see Note Below)
Valid Password
Entered
Recording Control
Reset archiving
On-line
 Off-line
File Viewer
Diagnostics
