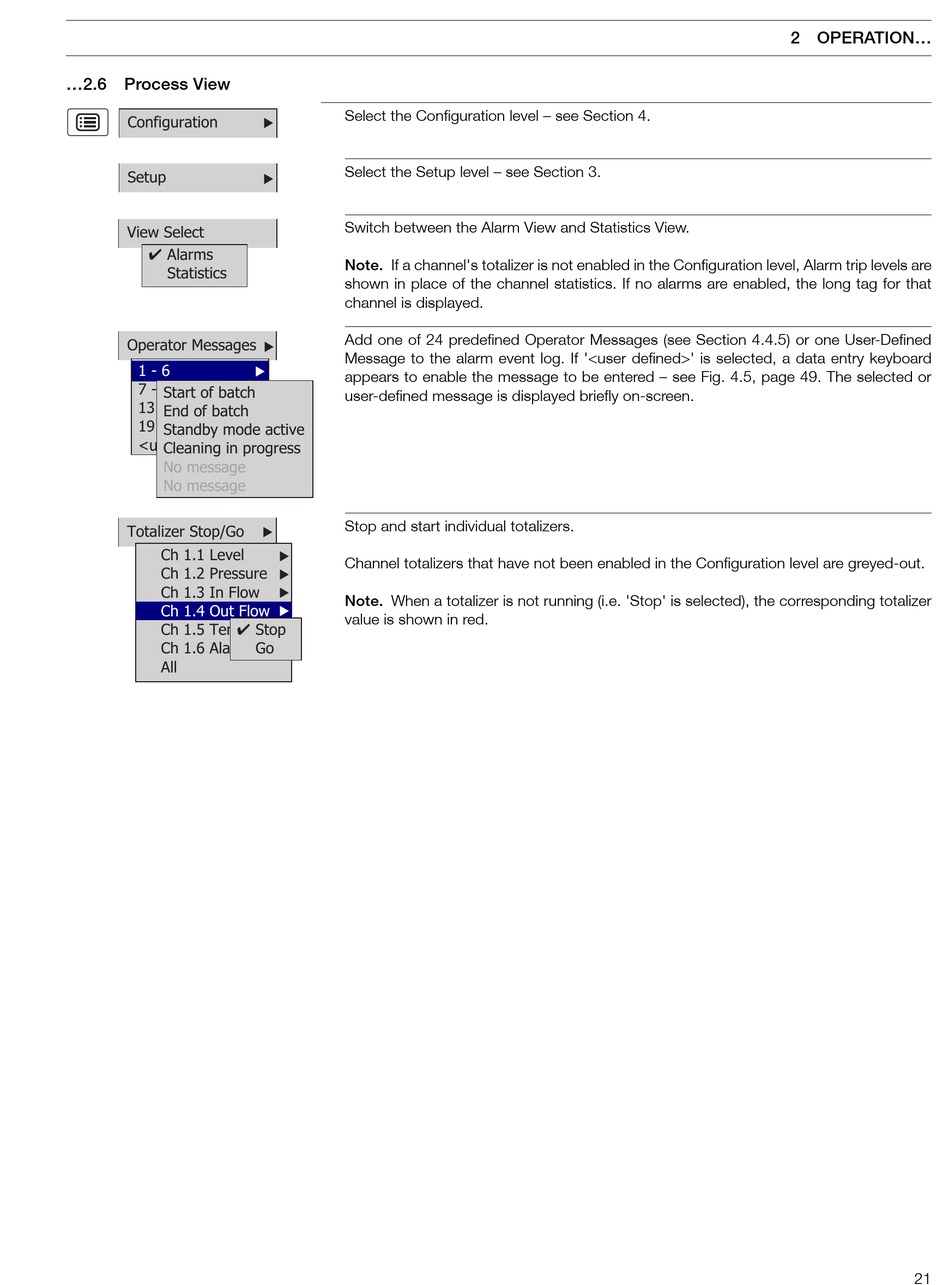

...2.6 Process View
Configuration
Setup
View Select
 Alarms
Statistics
Operator Messages
1 - 6
7 - 12
Start of batch
13 - 18
End of batch
19 - 24
Standby mode active
<user defined>
Cleaning in progress
No message
No message
Totalizer Stop/Go
Ch 1.1 Level
Ch 1.2 Pressure
Ch 1.3 In Flow
Ch 1.4 Out Flow
 Stop
Ch 1.5 Temp
Ch 1.6 Alarm 1
All
Select the Configuration level – see Section 4.
Select the Setup level – see Section 3.
Switch between the Alarm View and Statistics View.
Note. If a channel's totalizer is not enabled in the Configuration level, Alarm trip levels are
shown in place of the channel statistics. If no alarms are enabled, the long tag for that
channel is displayed.
Add one of 24 predefined Operator Messages (see Section 4.4.5) or one User-Defined
Message to the alarm event log. If '<user defined>' is selected, a data entry keyboard
appears to enable the message to be entered – see Fig. 4.5, page 49. The selected or
user-defined message is displayed briefly on-screen.
Stop and start individual totalizers.
Channel totalizers that have not been enabled in the Configuration level are greyed-out.
Note. When a totalizer is not running (i.e. 'Stop' is selected), the corresponding totalizer
value is shown in red.
Go
2 OPERATION...
