4.5 Process Group Configuration
Note. If 'Number of groups' is set to '1' (see Section 4.4.1), only one Process Group icon and associated
Channels icon is displayed in the main configuration window.
4.5.1 Setting the Recording Parameters
N
ote. Parameters marked
Process Group 1
Process Group 2

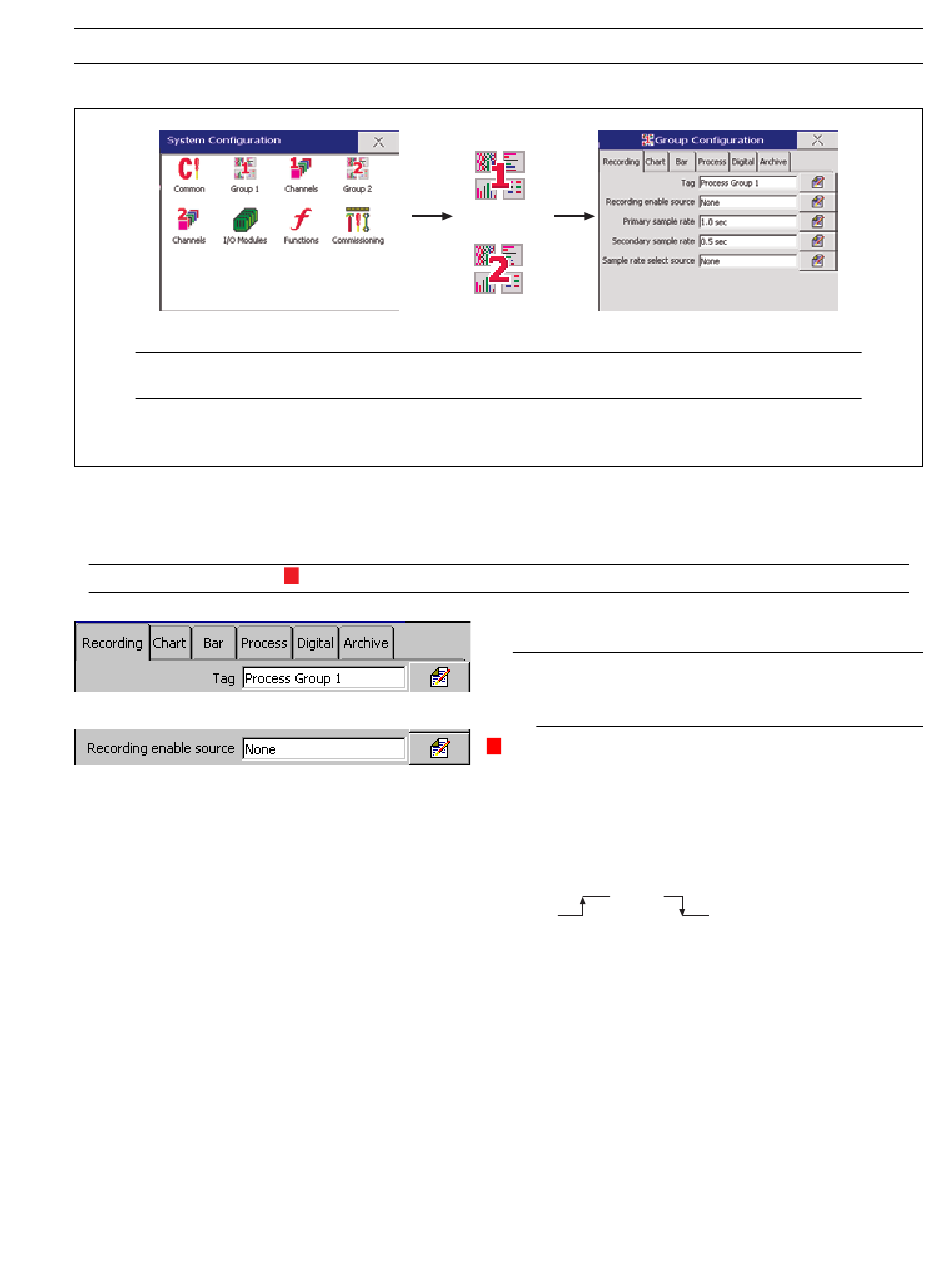

Fig. 4.8 Selecting Process Group Configuration
B
are displayed only if Basic Configuration is selected – see Table 4.1 and Section 4.4.1.
or
Enter the process group tag (maximum 20 characters) that
appears in the title bar when any operator views from that
group are displayed.
Select a signal source to enable/disable recording of all
B
channels in the current Process Group. Refer to APPENDIX 1
for a description of the available sources.
Note. This signal is edge-triggered. A rising edge (inactive to
active) enables recording. A falling edge (active to inactive)
disables recording.
Enabled
4 CONFIGURATION...
Disabled
61
