2.8 Totalizer Log – Fig. 2.9
Notes.
• The Totalizer log view provides an historical log of totalizer activity. To view the current totalizer status, choose the Process
or Digital View.
• When the number of entries in the Totalizer log has reached that defined in 'Totalizer log size' (see Section 4.4.6), the
oldest data is overwritten by the newest. Entries are renumbered so that the number of the oldest entry is always 00.
• The logging of totalizer values can be triggered at pre-determined intervals and/or by digital signal – see 'Log update' in
Section 4.6.5.
Totalizer Icon
Log Entry Number
Batch total at the
time of the event
Max., min. and
average of the value
being totalized at the
time of the event
Totalizer Log
Selects
Process
Group 1
Selects the
Audit Log
For a description of the Totalizer Icons (displayed in the Totalizer Log
and the Process View), refer to the Rear Foldout.
Note. Maximum, Minimum and Average statistics are not
shown unless enabled in the Filters menu – see overleaf.

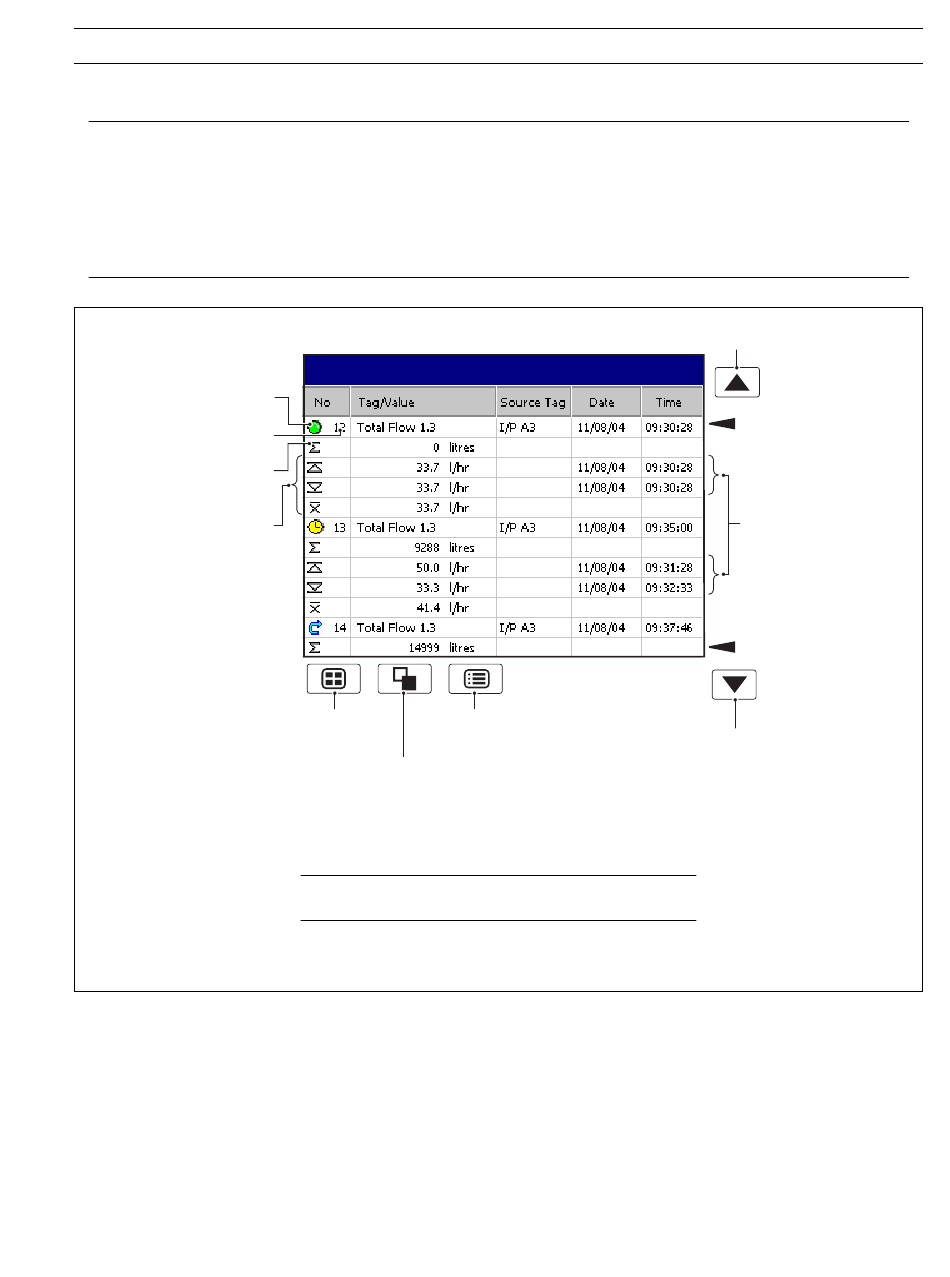

Fig. 2.9 Totalizer Log
11/08/04
10:06:13
Opens the
Operator Menu for
the current view
2 OPERATION...
View previous
page of data
Oldest
Data
Date/time at which
max. and min.
flowrates occured
Newest
Data
View next page
of data
