Net Name
QSPI_CLK
QSPI_CS
QSPI_DQ0
QSPI_DQ1
QSPI_DQ2
QSPI_DQ3

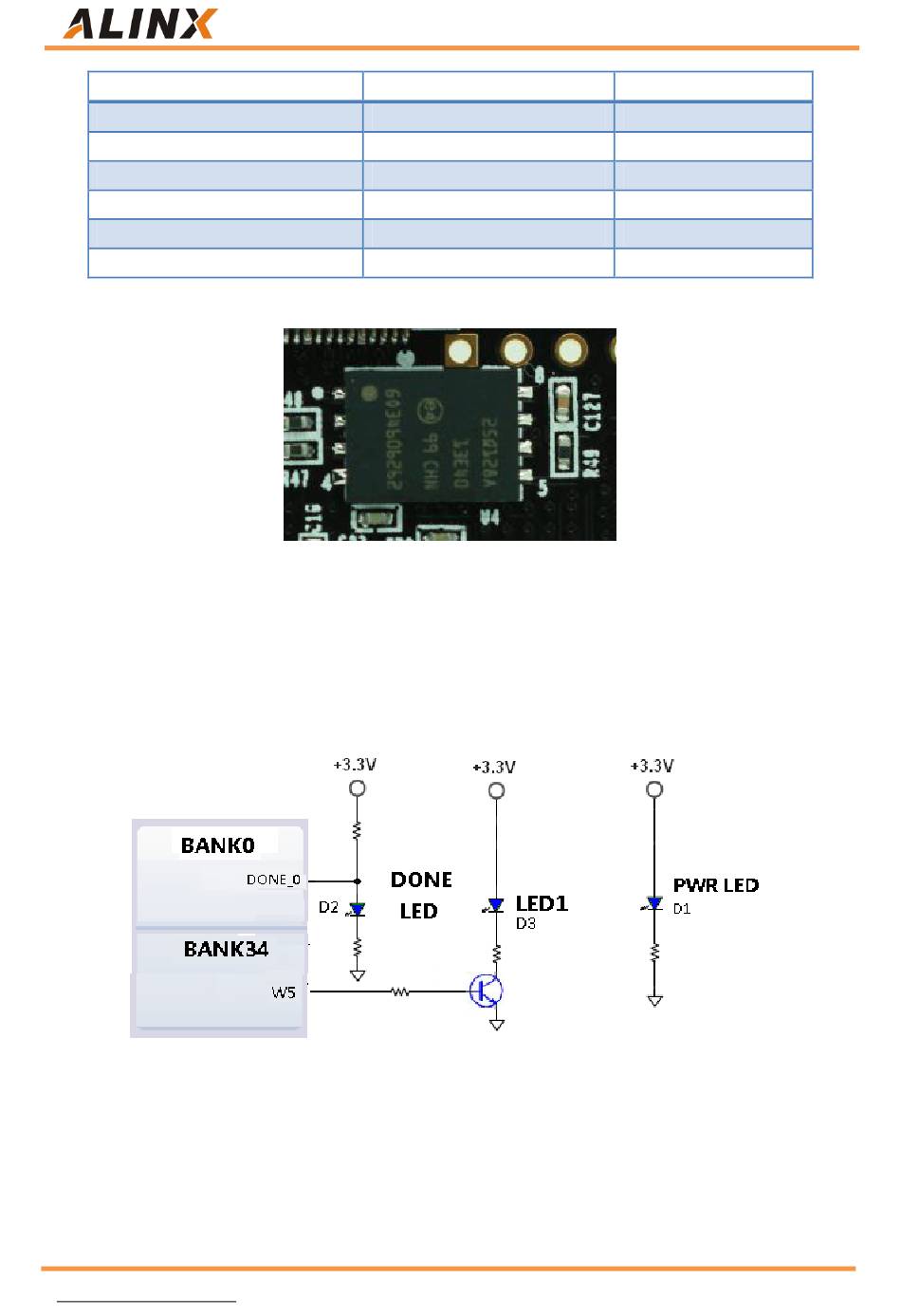

Figure 2-5-2 shows onboard QSPI FLASH

6. LED light

There are three RED LEDs on the FPGA, it includes power indicator LED, done
indicator LED and user LED. When the core board is power on, the power indicator
LED turns on. When the FPGA configuration is configured, the done LED will be on.
The user LED is driven directly by a pin of FPGA, driving its associated pin to a high
logic level turns the LED on, and driving the pin low turns it off.
Figure 2-6-2 is the LEDs on AC7100 board
Http://www.heijin.org
17 / 50
FPGA PIN Name
CCLK_0
IO_L6P_T0_FCS_B_14
IO_L1P_T0_D00_MOSI_14
IO_L1N_T0_D01_DIN_14
IO_L2P_T0_D02_14
IO_L2N_T0_D03_14
Figure 2-5-2 QSPI FLASH on board
Figure 2-6-1 Connections between the LEDs and FPGA
AX7103 User Manual
FPGA P/N
L12
T19
P22
R22
P21
R21
17 / 50
