System Clock pin assignments：

Signal Name

PL_CLK0_P

PL_CLK0_N

Part 1.6: LED Light

There are two red LEDs on the AXKU042 FPGA development board, one of which

is the power indicator (PWR), one is DONE indicator. When the AXKU042 FPGA board

is powered on, the power indicator and DONE indicator will light up; when the

AXKU042 FPGA is configured, the DONE LED will light up;

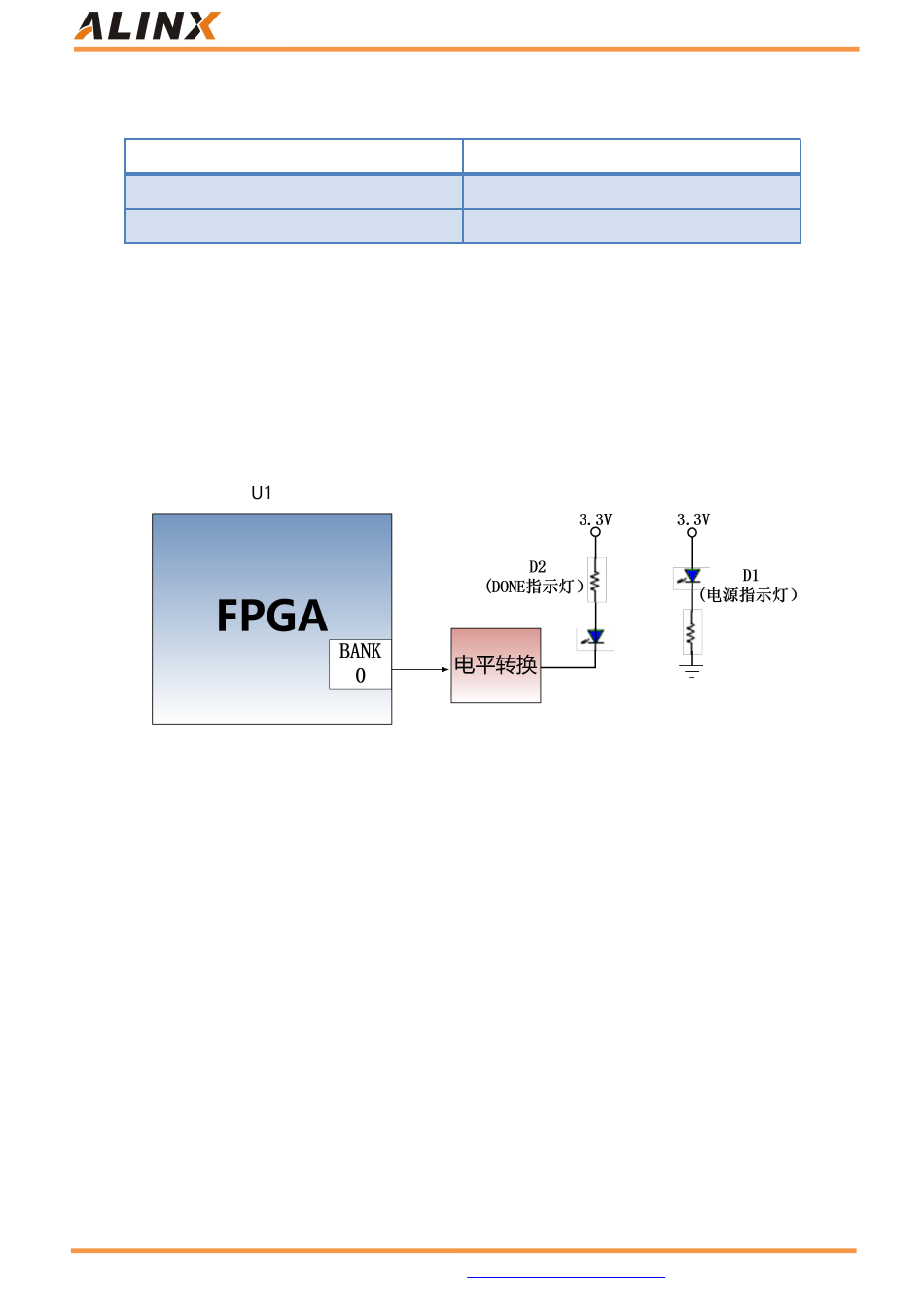

The LEDs hardware connection is shown in Figure 1-6-1.

Figure 1-6-1 The LED lights hardware connection diagram

The power input voltage of the AXKU042 FPGA development board is DC12V,

and the power supply is provided by carrier board. The power supply design diagram

on the board is shown in Figure 1-7-1 below:

KINTEX UltraScale+ FPGA Board AXKU042User Manual

http://www.alinx.com

FPGA Pin

AK17

AK16

15 / 49
