1. Overview

AC7100 (module number of Core Board) core board, is a high performance core
board using XILINX Artix-7 XC7A100T-2FGG484I chipset. Two DDR3 memories
are connected to FPGA with 32bit data width and one 128Mbit QSPI FLASH is used
for storage of FPGA bitstreams or application code.
About 180 IOs (include 86 pairs LVDS signals) and signals of GTP transceivers
are extended to expansion board using board-on-board connector. The core board is
very small of 45*55 (mm), it will be a good choice to use this core board in project
which need a lot of IOs and space limitation

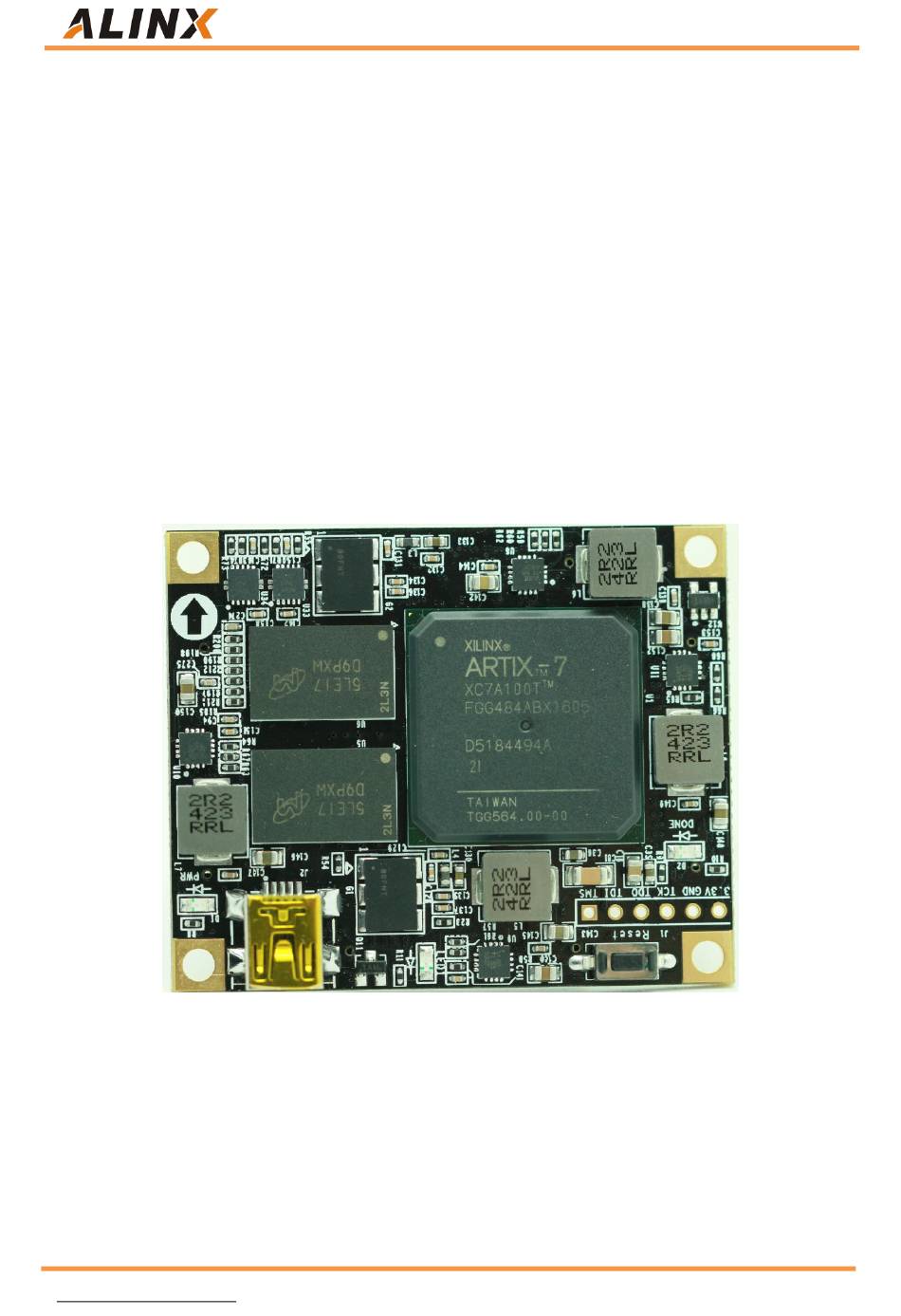

Figure 2-1-1 and Figure 2-1-2 shows the top view and bottom view of the FPGA
Core board.
Http://www.heijin.org
8 / 50

FPGA Core Board

AC7100 Top View
