9134_D[20]
9134_D[21]
9134_D[22]
9134_D[23]

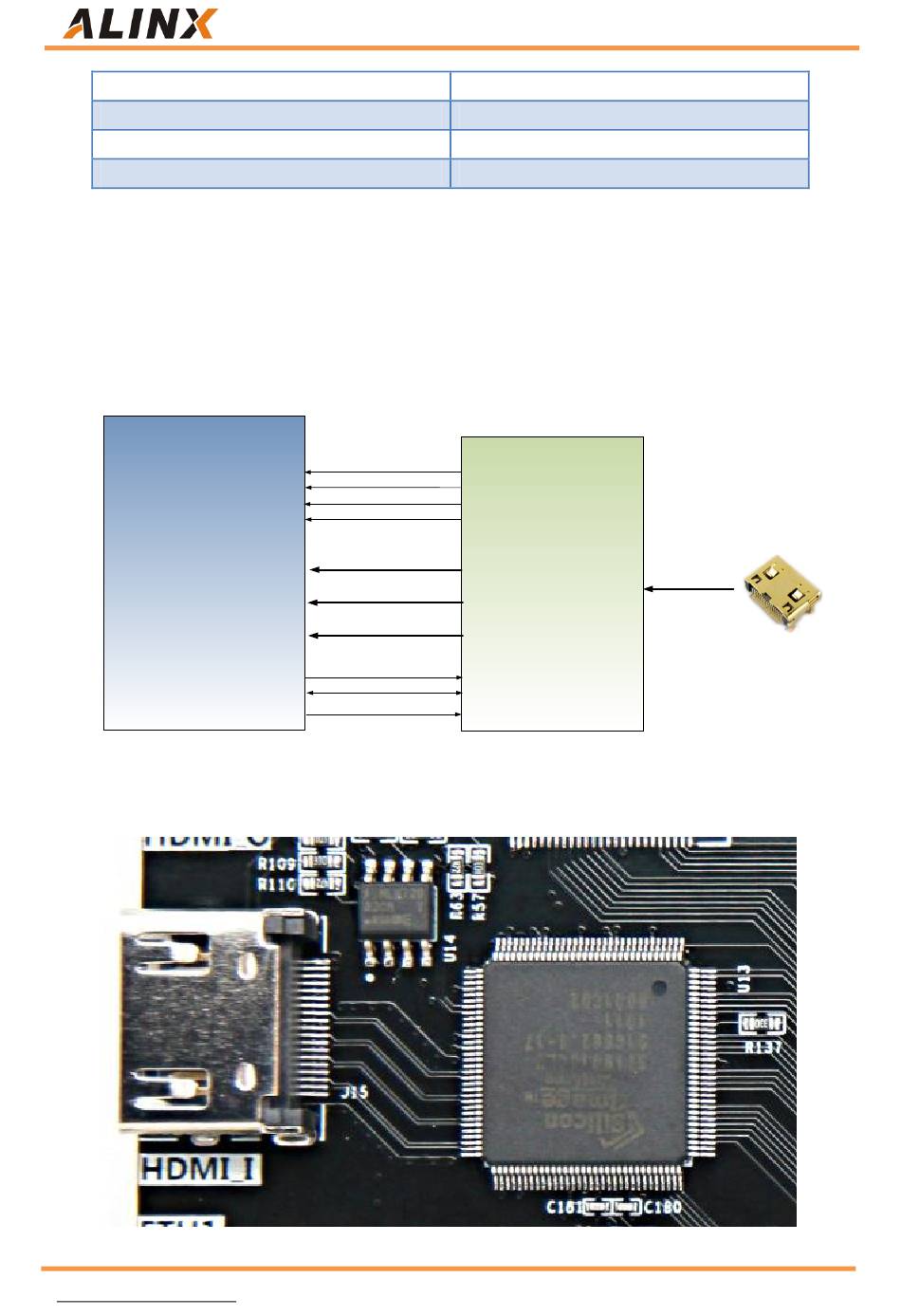

5. HDMI Input Connector

The AX7103 used decoding chip SIL9013 HDMI of Silion Image company,
supported input up to 1080P@60Hz, supported data output in various format. The IIC
configure connector of SIL9013 connector to IOs of FPGA. To initialized and
controlled the SIL9134 by FPGA program, HDMI Input connectors hardware
designation as figure 3-5-1:
U1
FPGA
Artix-7
HDMI Input connector on board, the picture as Figure 3-5-2:
Http://www.heijin.org
37 / 50
9013_CLK
QDCK
9013_DE
DE
9013_HS
HSYNC
9013_VS
VSYNC
9013_D[23:16]
QE[23:16]
9013_D[15:8]
QE[15:8]
9013_D[7:0]
QE[7:0]
HDMI_SCL
CSCL
HDMI_SDA
CSDA
9013_nRESET
RESET#
Figure 3-5-1 HDMI Input Schematic
AX7103 User Manual
M20
N20
L21
M21
U13
SiI9013
TDMS
