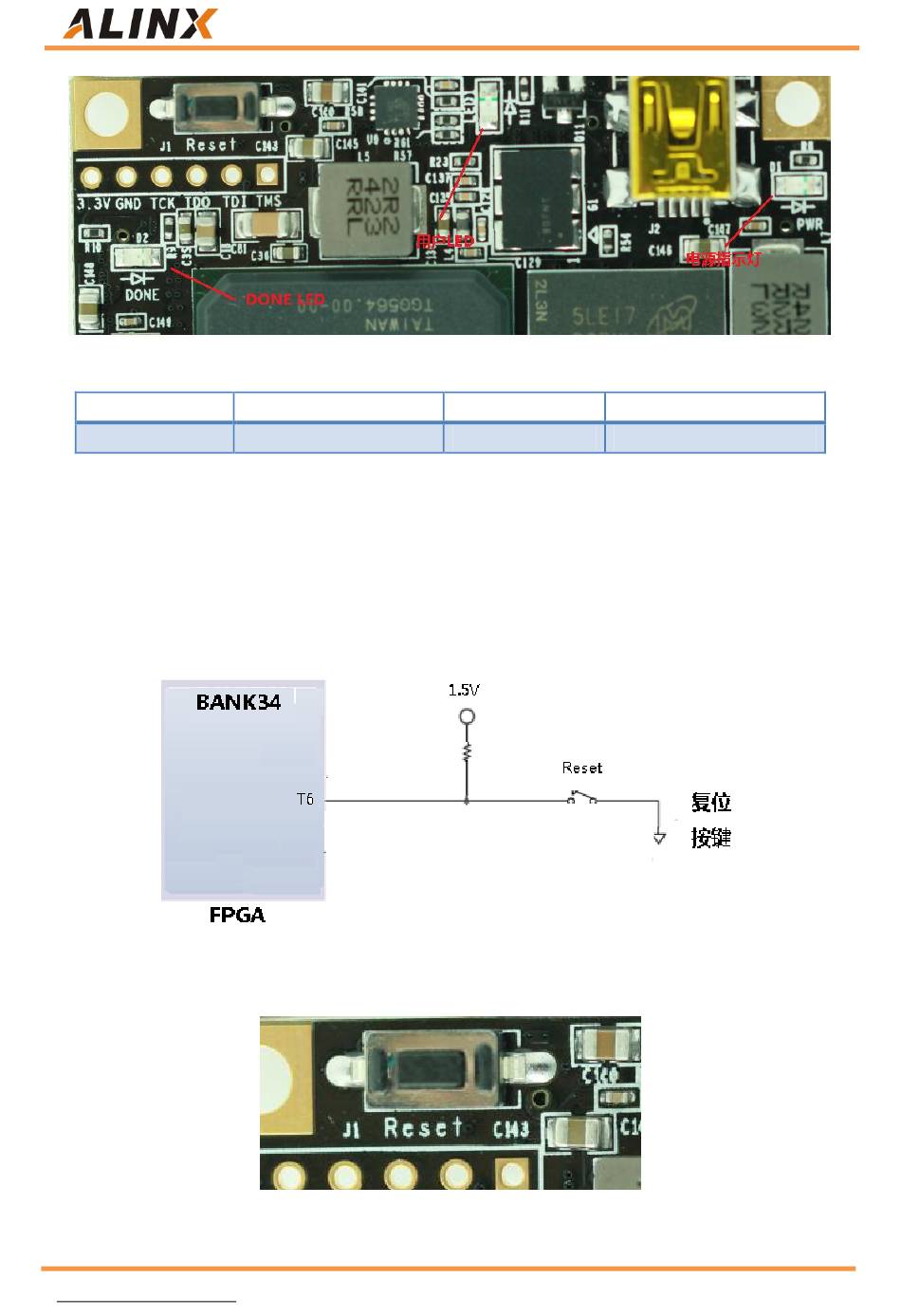

7. Reset Button

AC7100 core board has a reset button, it is connected to the bank34 IO of FPGA.
User can use this button to initialize the FPGA program. When reset button is pressed,
the reset signal to FPGA is low and the reset is valid. When the button is not pressed,
the reset signal is high. The schematic diagram of the reset button connection is
shown in Figure 2-7-1
Figure 2-7-2 is the reset button on AC7100 board
