Part 2.7: LED Light on Core Board

There are 3 red LED lights on the AC7200 FPGA core board, one of which
is the power indicator light (PWR), one is the configuration LED light (DONE),
and one is the user LED light. When the core board is powered, the power
indicator will illuminate; when the FPGA is configured, the configuration LED
will illuminate. The user LED light is connected to the IO of the BANK34, the
user can control the light on and off by the program. When the IO voltage
connected to the user LED is high, the user LED is off. When the connection IO

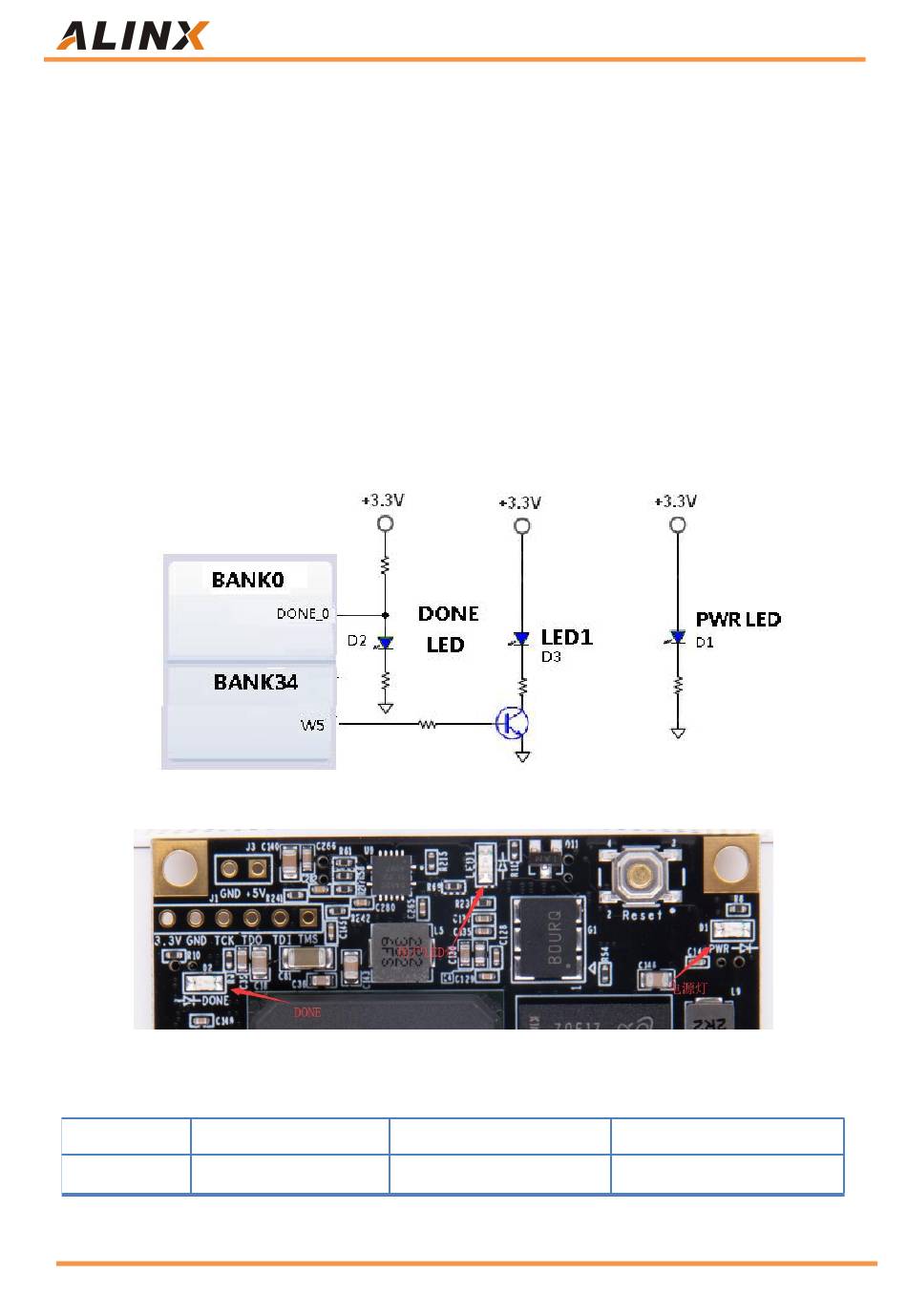

voltage is low, the user LED will be lit. The schematic diagram of the LED light
hardware connection is shown:
User LEDs Pin Assignment
Signal Name
LED1 IO_L15N_T2_DQS_34
www.alinx.com
ARTIX-7 FPGA Development Board AX7201 User Manual
LED lights on core board Schematic
LED lights on the Core Board
FPGA Pin Name FPGA Pin Number
W5
Description
User LED
