Part 6: LED Light on Core Board

There are 3 red LED lights on the AC7200 FPGA core board, one of which
is the power indicator light (PWR), one is the configuration LED light (DONE),
and one is the user LED light. When the core board is powered, the power
indicator will illuminate; when the FPGA is configured, the configuration LED
will illuminate. The user LED light is connected to the IO of the BANK34, the
user can control the light on and off by the program. When the IO voltage
connected to the user LED is high, the user LED is off. When the connection IO
voltage is low, the user LED will be lit. The schematic diagram of the LED light
hardware connection is shown in Figure 6-1:

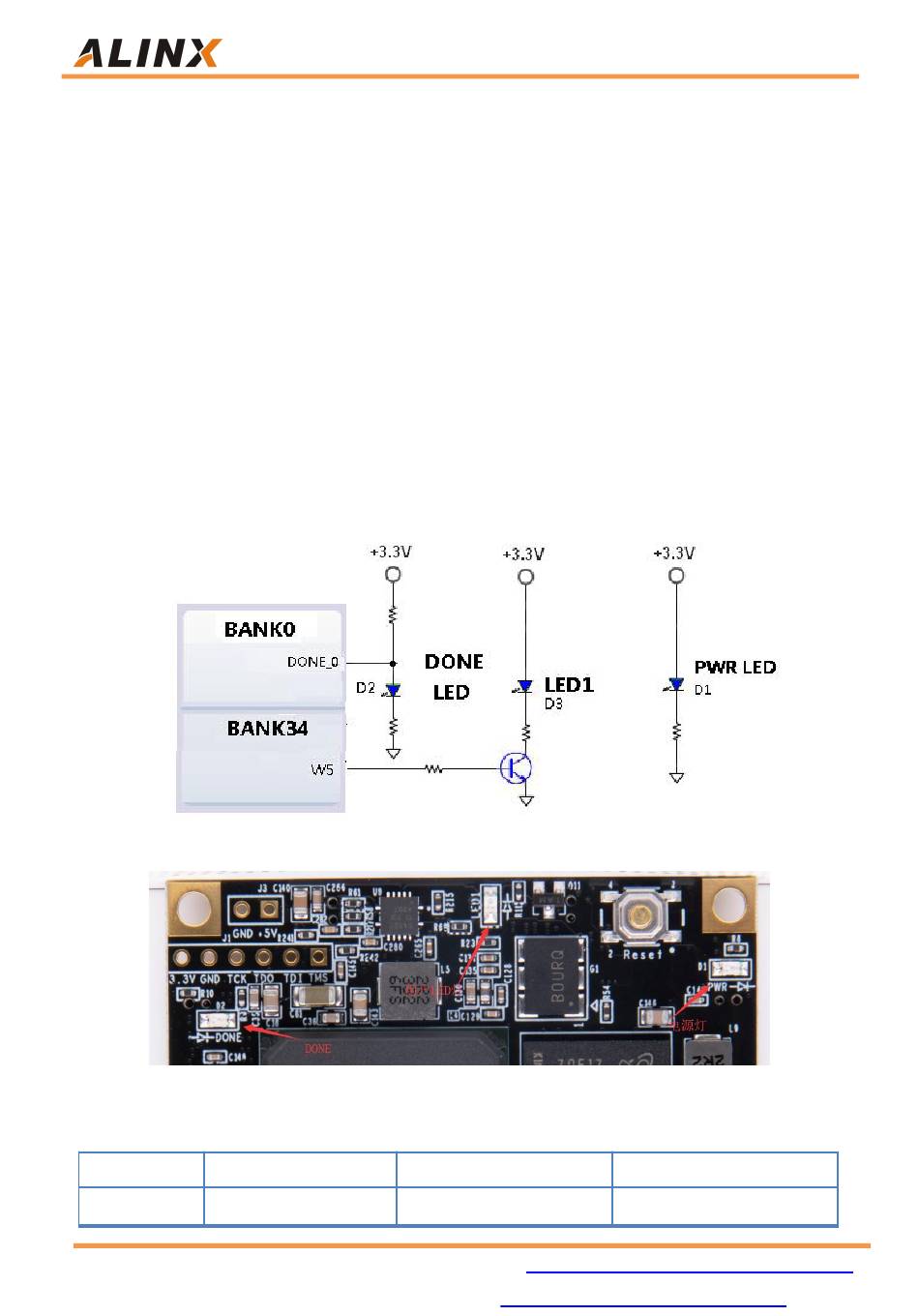

Figure 6-1: LED lights on core board Schematic
User LEDs Pin Assignment
Signal Name FPGA Pin Name
LED1 IO_L15N_T2_DQS_34
17 / 30
ARTIX-7 SoM FPGA Core Board AC7200 User Manual
Figure 6-2: LED lights on the Core Board
Amazon Store:
Sales Email:
FPGA Pin Number
W5
https://www.amazon.com/alinx
rachel.zhou@aithtech.com
Description
User LED
