Proline Cubemass C 100 PROFIBUS DP
Endress+Hauser
1.2.4

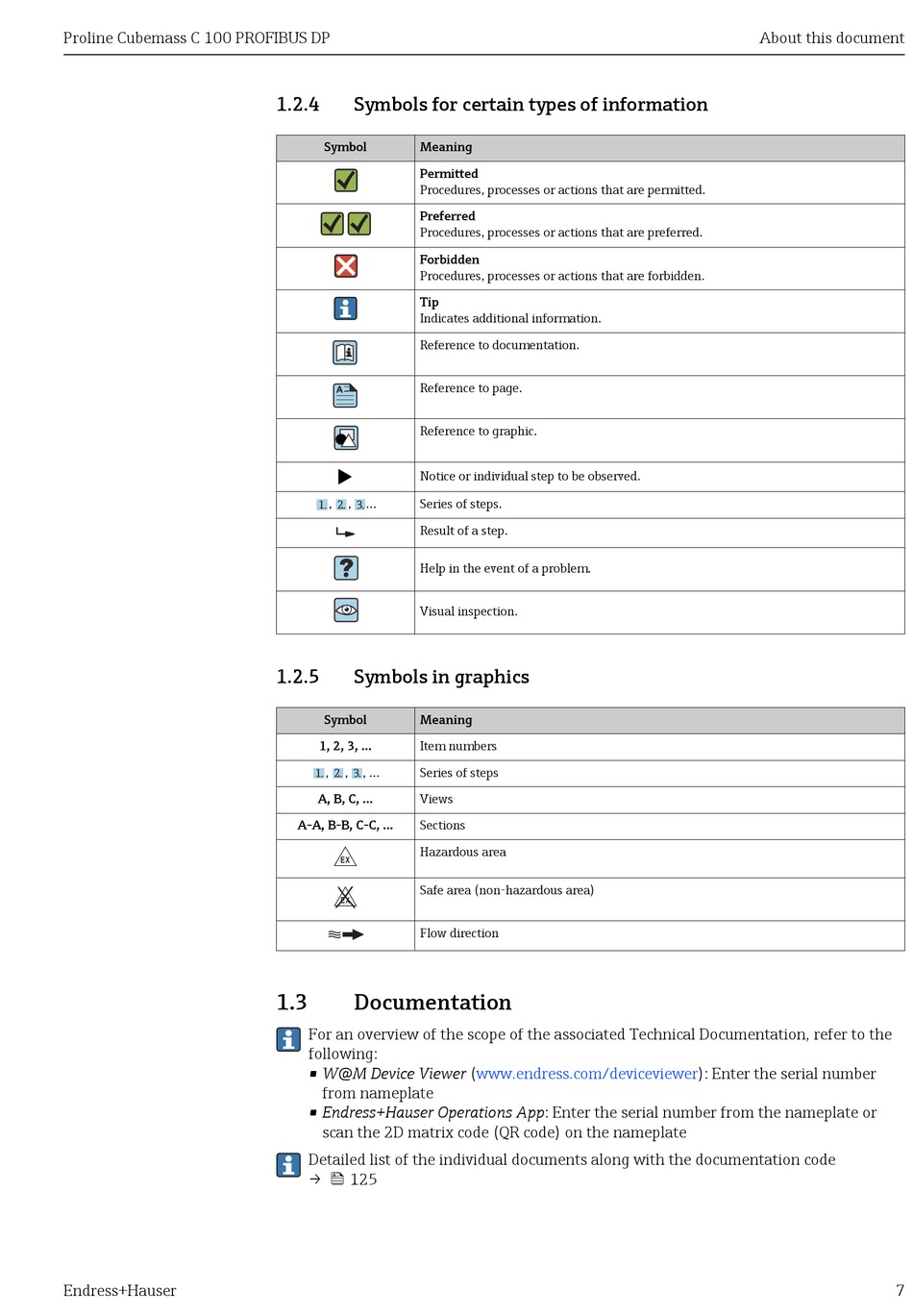

Symbols for certain types of information

Symbol Meaning
Permitted
Procedures, processes or actions that are permitted.
Preferred
Procedures, processes or actions that are preferred.
Forbidden
Procedures, processes or actions that are forbidden.
Tip
Indicates additional information.
Reference to documentation.
Reference to page.
A
Reference to graphic.
Notice or individual step to be observed.
, , ... Series of steps.
1. 2. 3.
Result of a step.
Help in the event of a problem.
Visual inspection.
1.2.5

Symbols in graphics

Symbol Meaning
1, 2, 3, ... Item numbers
, , , ... Series of steps
1. 2. 3.
A, B, C, ... Views
A-A, B-B, C-C, ... Sections
Hazardous area
-
Safe area (non-hazardous area)
.
Flow direction
1.3

Documentation

For an overview of the scope of the associated Technical Documentation, refer to the
following:
• W@M Device Viewer (www.endress.com/deviceviewer): Enter the serial number
from nameplate
• Endress+Hauser Operations App: Enter the serial number from the nameplate or
scan the 2D matrix code (QR code) on the nameplate
Detailed list of the individual documents along with the documentation code
→  125
About this document
7
