About - Johnson Controls FRICK QUANTUM LX Operation

ACCESSING:

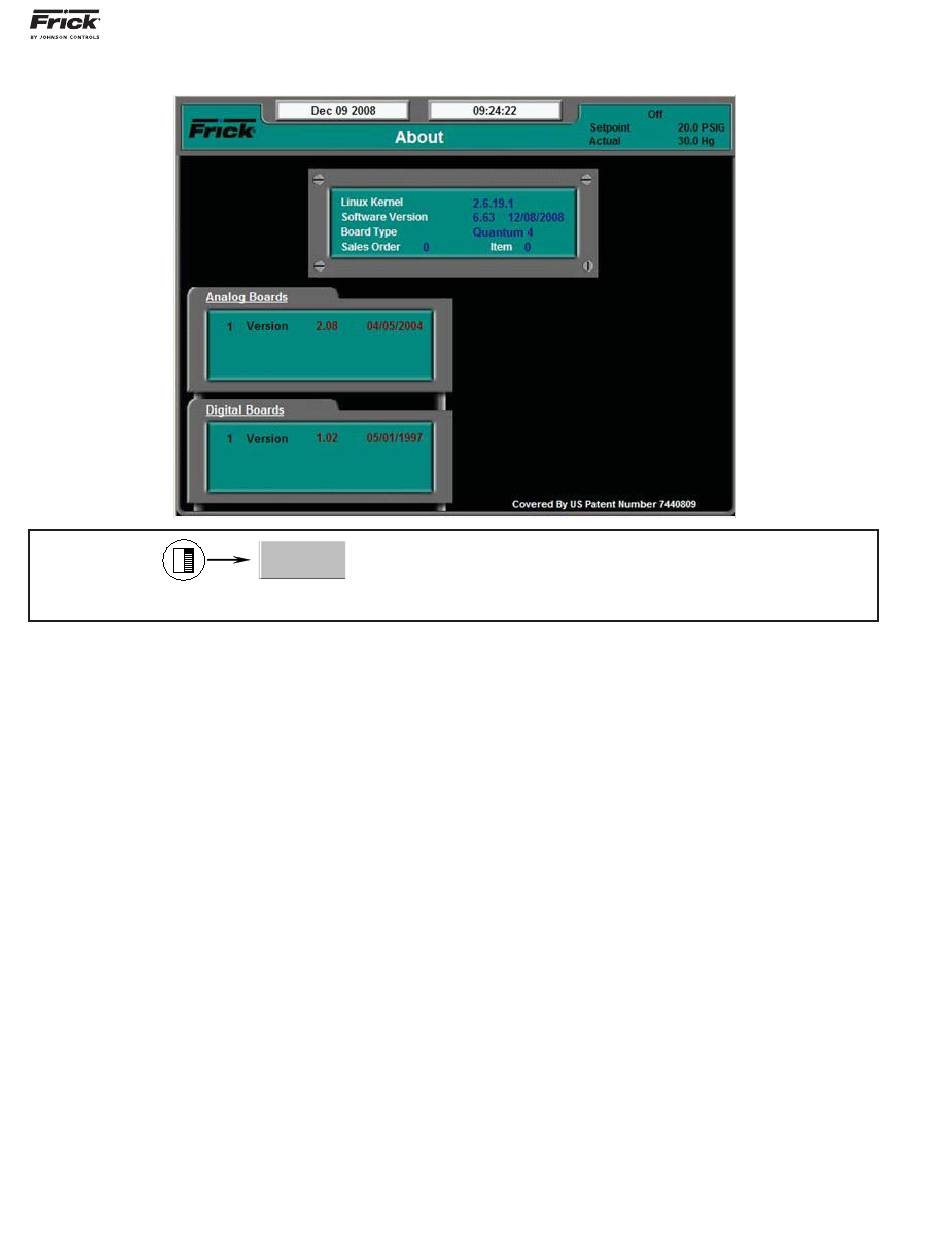

DESCRIPTION: The About screen shows all microprocessor-based circuit boards that have been detected by the
Quantum™ LX, as well other related software information.
The following information is shown here:
Linux Kernel - The Quantum™ LX controller runs on
a Linux programming architecture (rather than Micro-
soft Windows). This is the software version number
for the main Linux Kernel (or program).
Software Version - This is the version of the soft-
ware program that does the actual control of the
compressor. It runs in the Linux environment.
Board Type – The type and model of controller will
be shown here.
Sales Order - A six digit numerical value that has
been assigned to a specifi c compressor package by
Frick Company. It is very important to have this num-
ber available when calling the factory for assistance
or parts ordering.
Item - This is actually an extension of the Sales Order
number. It would potentially be used for a multiple
compressor site, where the same Sales Order num-
ber was assigned for all compressors. The Item Num-
ber would be different for each compressor.
QUANTUM™ LX COMPRESSOR CONTROL PANEL
OPERATION

ABOUT

About
Analog Boards - Shows all analog boards that were
detected through communications at the last power
up. If a board is detected, the software version of
the program running on that board (with date of the
software) will be shown.
Digital Boards - Shows all digital boards that were
detected through communications at the last power
up. If a board is detected, the software version of
the program running on that board (with date of the
software) will be shown.
IO Boards - Shows all other I/O boards that were
detected through communications at the last power
up. If a board is detected, the software version of
the program running on that board (with date of the
software) will be shown.
Drive Controller - Shows motor or engine drive con-
trollers that were detected through communications
at the last power up. If a board is detected, the soft-
ware version of the program running on that board
(with date of the software) will be shown.
