ACCESSING:

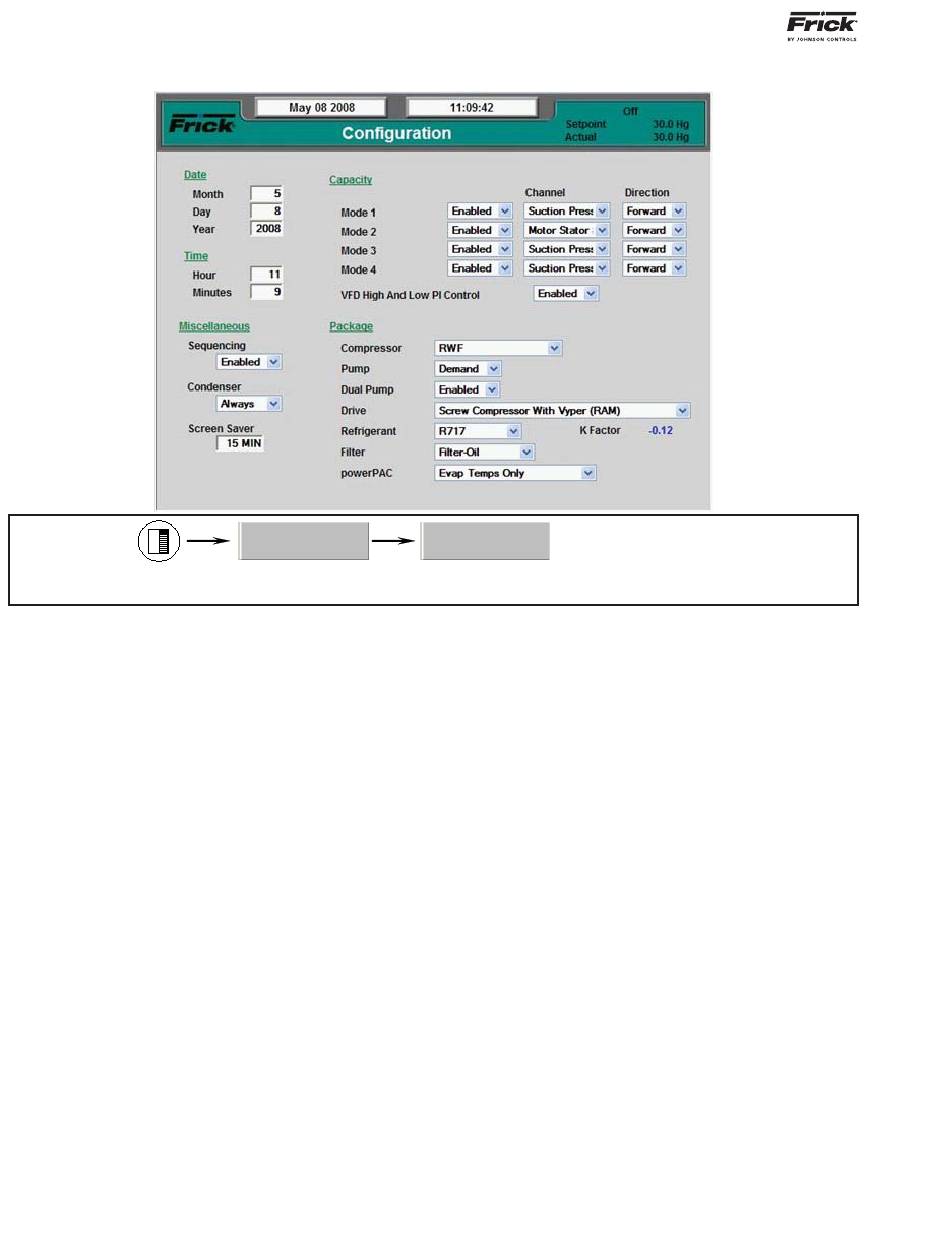

DESCRIPTION: This screen is used to view and set basic compressor operational values. It is from this screen that
most of the compressors operating characteristics are set.
The following drop-down menus are provided:
Date:
[Month]
• 1 – 12
[Day]
• 1 – 31
[Year]
• 2000 - 2050
Time:
[Hour]
• 0 – 23
[Minutes]
• 0 - 59
Miscellaneous:
[Sequencing]
• Disabled
• Enabled
[Condenser]
• Disabled
• Running
• Always
QUANTUM™ LX COMPRESSOR CONTROL PANEL
OPERATION
CONFIGURATION - Compressor
Configuration
Compressor
[Screen Saver]
• 0 - 60 Min.
Capacity:
[Mode 1, 2, 3 and 4]
• Disabled
• Enabled
[Channel]
• Capacity Slide Position
• Volume Slide Position
• Suction Pressure
• Discharge Pressure
• Compressor Oil Pressure
• Main Oil Injection Pressure
• Economizer Pressure
• Filter Pressure
• Intermediate Pressure
• Balance Piston Pressure
• System Discharge Pressure
• Suction Temperature
• Discharge Temperature
• Compressor Oil Temperature
• Oil Separator Temperature
• Process/Brine Temperature Leaving
• Process/Brine Temperature Entering
• Remote Control Setpoint
• Motor Current
• RPM
• Kilowatts
• User defi ned analog inputs #1 - #10
• EZ Cool Feedback %
