Help - Johnson Controls FRICK QUANTUM LX Operation

090.022-O (MAY 12)
Page 90
ACCESSING:

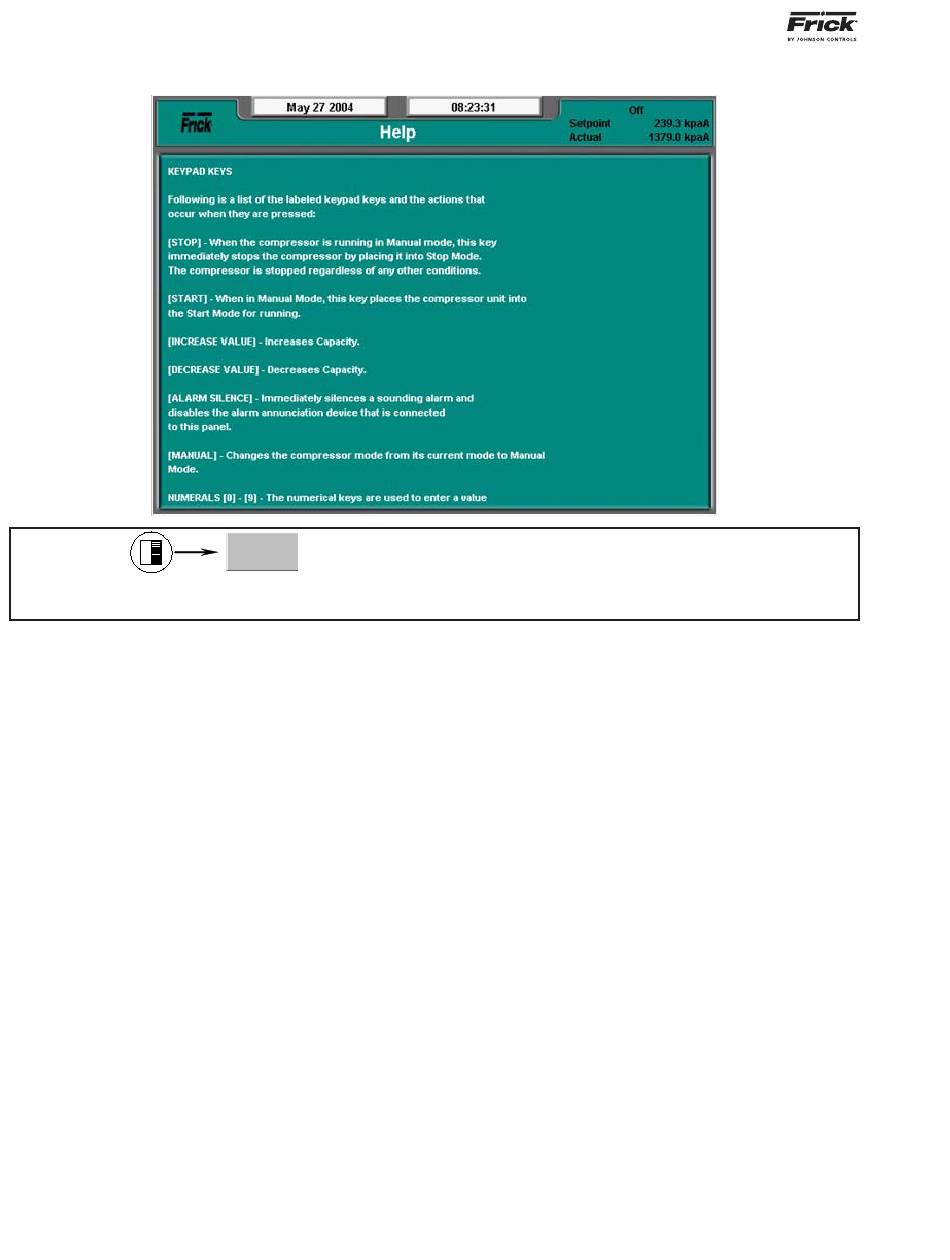

DESCRIPTION: This screen provides the user with specifi c information as to the function of all keypad keys, as well as
all screen keys, and changing Setpoints.
The following Help text is shown here:
UP/DOWN ARROWS - The up and down arrow keys
are used to navigate through the onscreen menu.
RIGHT ARROW - The right arrow moves the cursor
to the right in text fi elds.
LEFT ARROW - The left arrow moves the cursor to
the left while editing text, or to the previous fi eld
while tabbing between fi elds.
TAB KEY - The tab key is used to advance from one
text fi eld or dropdown box to another.
QUANTUM™ LX COMPRESSOR CONTROL PANEL
OPERATION

HELP

Help Help
MENU KEY - The menu key is used to cause the main
navigation menu to appear. Use the up and down ar-
row keys to locate a menu item, then press ENTER to
select the highlighted menu item.
BACKSPACE KEY - The backspace button can be
used to erase characters in a text fi eld.
ENTER KEY - The enter is used to select a menu
item, to press a button on the graphical interface, or
to select an item from a dropdown menu.
NUMERALS [0] to [9] - The numerical keys are used
to enter data in text fi elds.
