Using A Web Browser (Ethernet) - Johnson Controls FRICK QUANTUM LX Operation

The Quantum™ LX Compressor interface may be ac-
cessed from any web browser. This feature allows any
screen to be viewed from a remote location without spe-
cialized software. An Ethernet connection to the Quan-
tum™ LX panel must be provided to utilize this feature.
The web browser interface can be viewed from any
desktop or laptop computer, which has access to
the network that the Interface panel is attached to.
Access the Ethernet Confi guration screen at the Interface
Panel, by selecting [Menu] > [Confi guration] > [Ether-

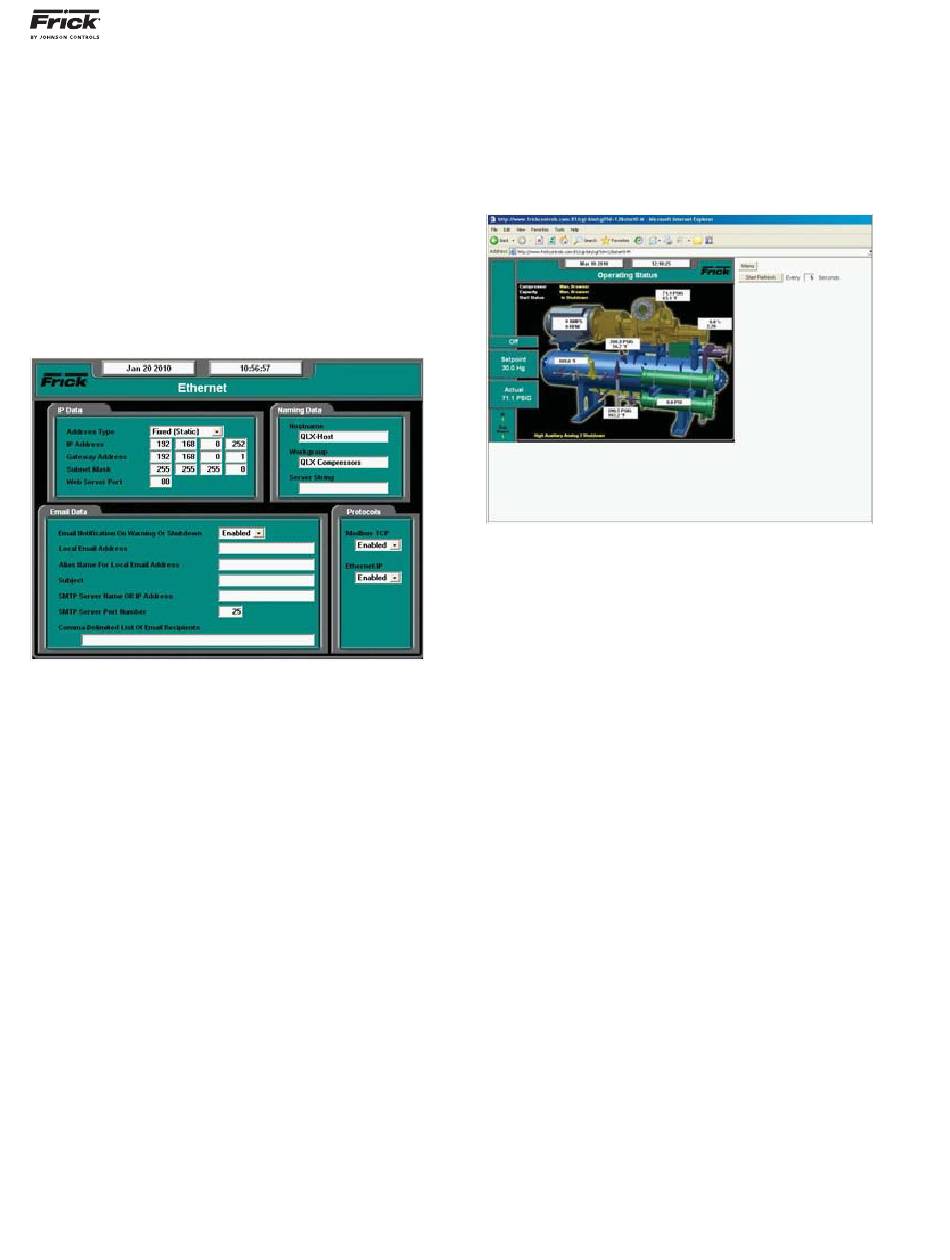

net]. The following screen will be shown:
Note the values that are displayed in the four boxes of the
IP Address.
At the computer, open the Internet browser (click on your
Internet icon). Once the browser has opened, look for the
address bar, it will appear similar to the following:
On the address bar, type the following [ http:// ]. Do not
type the brackets. After the http:// type in the values of
the four boxes from IP Address of the Ethernet Confi gu-
ration screen. Place a period (dot) between each group
of numbers. Using the screen information example used
here, the result would be http://192.168.0.252. Your par-
ticular IP Address may vary from the example shown.
QUANTUM™ LX COMPRESSOR CONTROL PANEL
OPERATION

USING A WEB BROWSER (ETHERNET)

Press the [Enter] key on your computer keyboard, and
if everything is connected and confi gured properly, the
Home screen of the Interface Panel should now appear on
your computer screen (similar to the following):
If you experience problems, such as a message stating
"Page not found", consult with your IT department.
To change screens, setpoints, etc., you simply use a
mouse and the keyboard to view and change data.
All Interface screens will have several buttons on the right
hand side of the screen:
[Menu] – Clicking on this button will cause the main
menu to appear on the left side of the screen. Click-
ing a second time will cause the menu to disappear.
[Submit] – Although this button does not appear
in the example above, it will be present on most
screens. It is used any time that you have modifi ed
a setpoint, or made any change to a screen. Before
leaving that screen, you must press the [Submit] but-
ton for the changes to be saved.
