Real Time Trending - Johnson Controls FRICK QUANTUM LX Operation

090.022-O (MAY 12)
Page 22
The following screen command keys are provided:
Upload Data Trending Files To USB Device - Press-
ing this key initiates an uploading of the Real Time
and History data fi les. These fi les can then be im-
ported into a database such as Excel™. To use this
feature, simply plug a USB compatible device into
the USB port of the Quantum™ LX. This device can
be a USB cable that is connected directly to a per-
sonal computer, or a USB Flash Drive. When using
a personal computer and this button is selected, a
window will appear on the computer screen, showing
two fi les:
• Realtimexx.csv
• Historyxx.csv
ACCESSING:

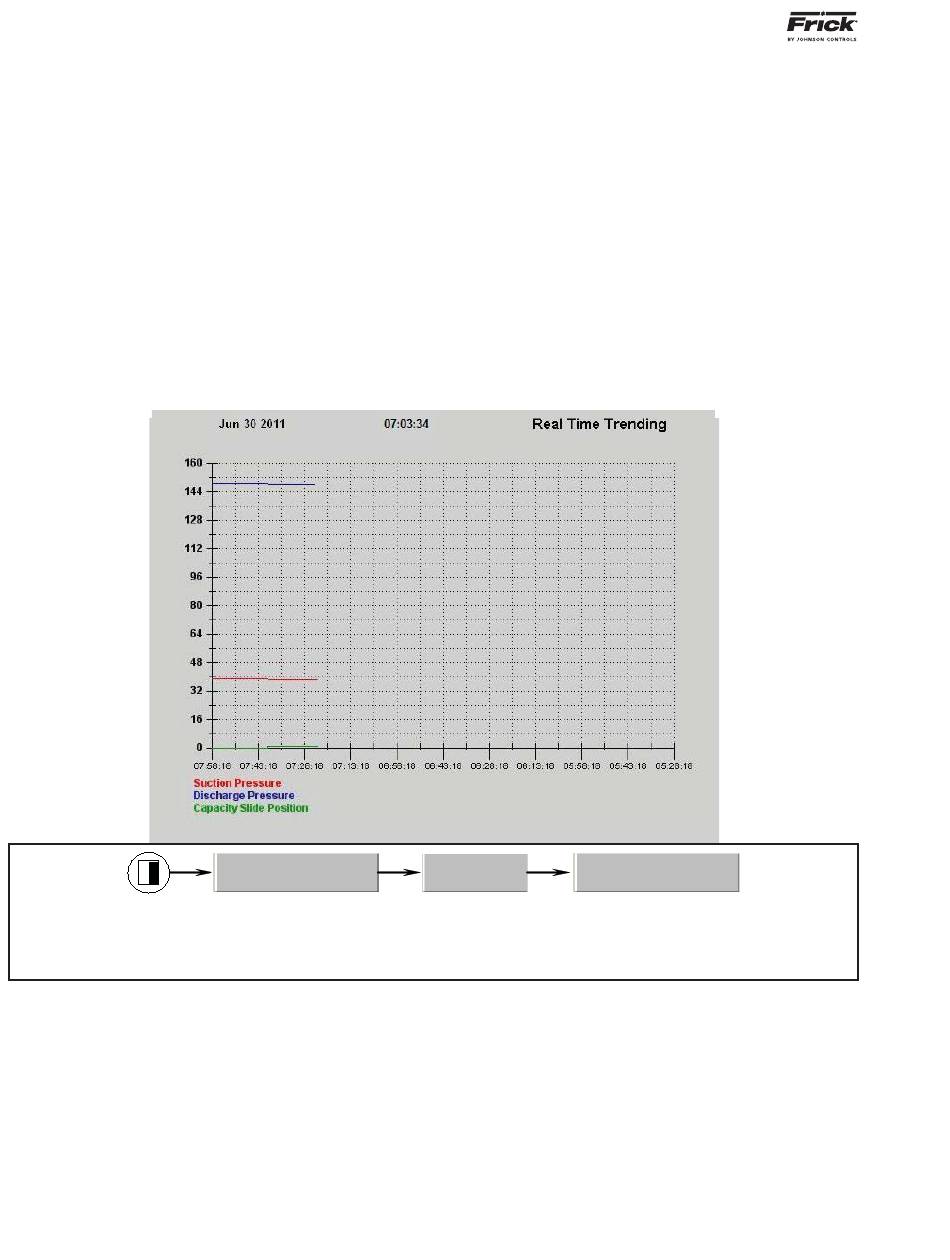

DESCRIPTION: This is the Real Time Trending screen. This screen will display in a graphical chart format, the data val-
ues as selected on the Real Time Trending Setup screen. Each of the possible eight selectable channels will be shown
at the bottom of the screen, each in a different color. The color data values displayed in the chart correspond to the
matching color of the trending channels at the bottom of the screen.
A total of 900 Realtime events can be trended. Realtime
events are lost upon each power cycle. The events that
QUANTUM™ LX COMPRESSOR CONTROL PANEL
SYSTEM STATUS -Trending - Real Time Trending
System Status...
OPERATION
The xx in both of these fi les will be replaced with
the ID number of the Quantum™ LX. When the fi les
appear in the screen window, simply right click on
either fi le, and select from the menu "Save Target
As...", and save the fi les to a convenient location.
By using Windows Explorer™, you can then double
click on the fi le, and it will automatically open the fi le
in Microsoft Excel™. The data can then be used in
whatever way the user would like.
When using a USB Flash Drive, simply click on the
button and the fi les will be saved to the Flash Drive.
You may then take the Flash Drive and plug it into the
USB port of a personal computer. The fi les may then
be opened from the Flash Drive.
Trending...
can be logged are set using the Trending Setup screen,
shown on the previous page.

Real Time Trending
