ACCESSING:

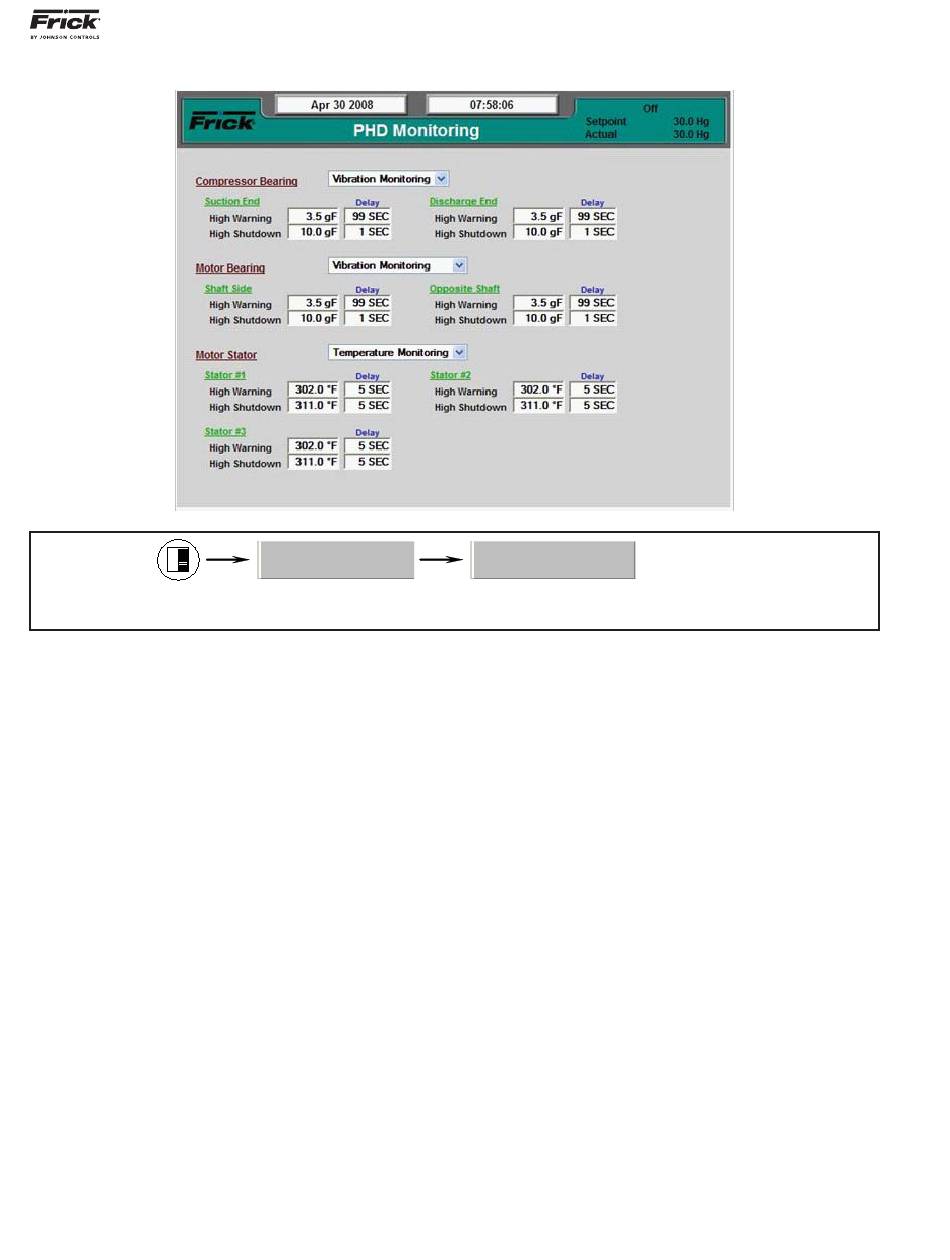

DESCRIPTION: This screen is used to setup the vibration portion of PHD Vibration monitoring. This screen will only be
available if the PHD Vibration option has been installed and enabled.
The following setpoint boxes are provided for both the
Compressor and Motor:
[Compressor Bearing]
• Disabled
• Vibration Monitoring
Suction End [High Warning] - If the amount of
vibration exceeds this setpoint for the amount of
time as set for the High Warning Delay, then a
Warning is issued.
Suction End [High Warning Delay] - The time
period as set here will begin to time down if the
amount of vibration exceeds that of the High
Warning, and remains above. When this delay
times out, a Warning will be issued.
Suction End [High Shutdown] - If the amount
of vibration exceeds this setpoint for the amount
of time as set for the High Shutdown Delay, then
a Shutdown will occur, and the compressor is
stopped.
Suction End [High Shutdown Delay] - The time
period as set here will begin to time down if the
amount of vibration exceeds that of the High
Shutdown, and remains above. When this delay
times out, a Shutdown will occur, and the com-
pressor is stopped.
QUANTUM™ LX COMPRESSOR CONTROL PANEL
OPERATION
SETPOINTS – PHD Monitoring
Setpoints...

PHD Monitoring

Discharge End [High Warning] - If the amount
of vibration exceeds this setpoint for the amount
of time as set for the High Warning Delay, then a
Warning is issued.
Discharge End [High Warning Delay] - The time
period as set here will begin to time down if the
amount of vibration exceeds that of the High
Warning, and remains above. When this delay
times out, a Warning will be issued.
Discharge End [High Shutdown] - If the amount
of vibration exceeds this setpoint for the amount
of time as set for the High Shutdown Delay, then
a Shutdown will occur, and the compressor is
stopped.
Suction End [High Shutdown Delay] - The time
period as set here will begin to time down if the
amount of vibration exceeds that of the High
Shutdown, and remains above. When this delay
times out, a Shutdown will occur, and the com-
pressor is stopped.
[Motor Bearing]
• Disabled
• Vibration Monitoring
• Temperature Monitoring
