History Data Log - Johnson Controls FRICK QUANTUM LX Operation

Compressor control panel

Hide thumbs Also See for FRICK QUANTUM LX:

Table of Contents

ACCESSING:

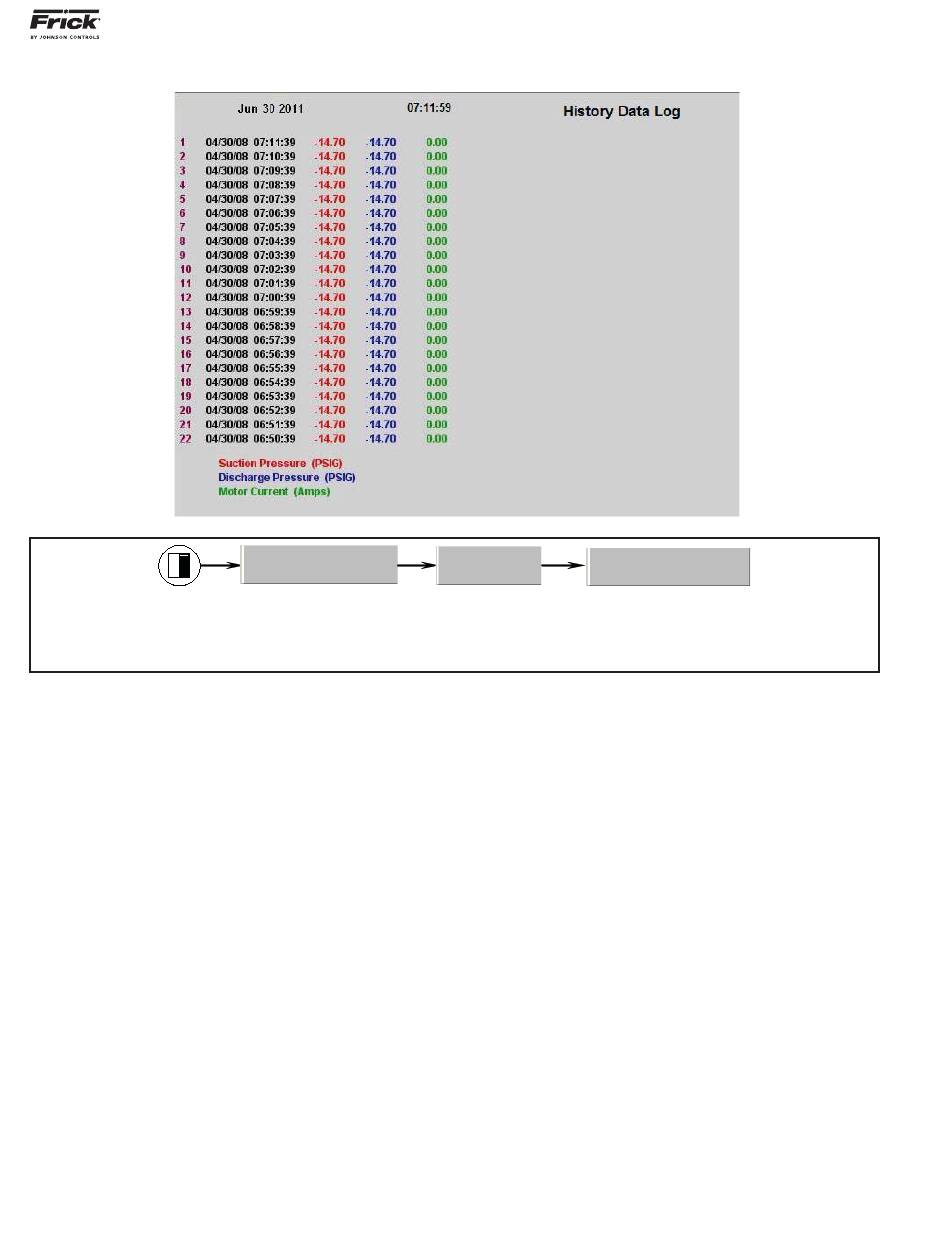

DESCRIPTION: This screen will display in a tabular format, the numerical data values as selected on the Real Time

Trending Setup screen. Each of the possible eight selectable channels will be shown at the bottom of the screen, each

in a different color. The color data values displayed in the chart correspond to the matching color of the trending

channels at the bottom of the screen.

The events that can be logged are set using the Trending

Setup screen.

QUANTUM™ LX COMPRESSOR CONTROL PANEL

SYSTEM STATUS -Trending - History Data Log

System Status...

OPERATION

Trending...

090.022-O (MAY 12)

History Data Log

Page 25
