ACCESSING:
DESCRIPTION: Scheduling allows the user to program up to four different operating schedules for each day of the
week. This can be a great way to save energy. At night or on weekends and holidays, or even over lunch periods when
room doors are kept closed or production is minimized, a higher temperature can be set to reduce energy consump-
tion.

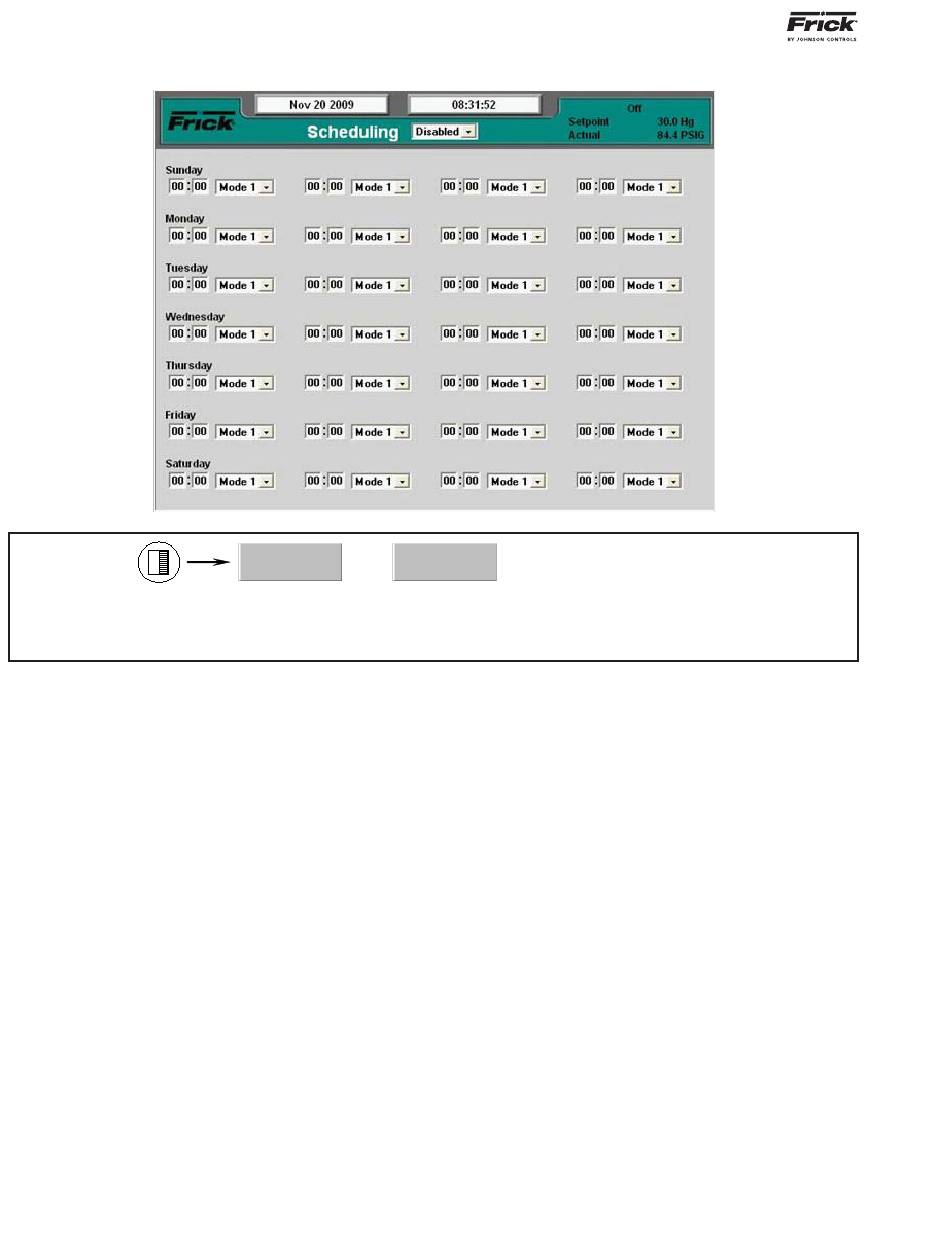

This screen shows a time schedule. Up to four different
modes can be entered for each day of the week.
Notice that there are four columns of Hour/Minute entries,
each followed by a Mode (1 - 4). Use the left most col-
umn (on the row for the day of the week that you wish to
schedule) to enter the time of day that you would like the
compressor to switch form it's normal operating mode,
into the scheduled mode. When that time of day arrives,
whatever mode the compressor WAS running in, will be
switched over to the scheduled (Mode 1 -4) mode. This
mode will then be the active running mode, and will con-
tinue to be the active mode until the time in the following
column is reached. If the time in the next column is 00:00,
it will be skipped.
The Schedule must be activated to switch the presently
active Mode to the Scheduling mode at the assigned time.
An entry of 00:00 will void the time entry fi eld. If setback
is required at midnight (00:00) use 00:01.
QUANTUM™ LX COMPRESSOR CONTROL PANEL
OPERATION
SETPOINTS - Scheduling
Setpoints...

Scheduling

The following drop down menu is provided:
Scheduling
• Enabled - The user programmed Schedule
will be followed.
• Disabled - The Quantum™ LX will ignore
any schedule that may have been set.
The following are descriptions of the setpoints:
Time Column - The time of day that you want to
switch to the Scheduled regulation setpoints of
the active capacity control.
Mode Column - Set this to the Mode (1 - 4) that
you want to run at the assigned time.
