ACCESSING:

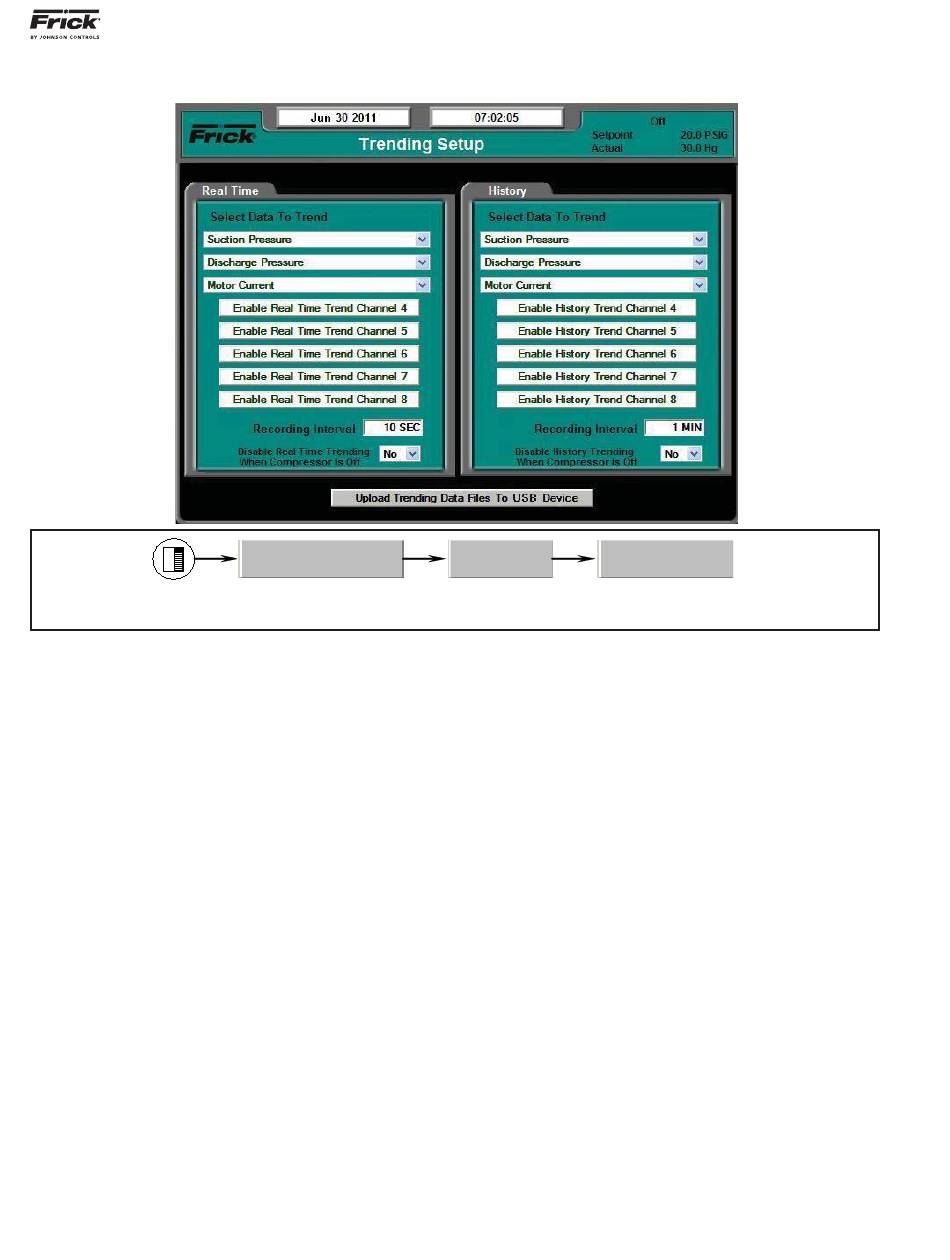

DESCRIPTION: This is the Trending Setup screen. Up to eight channels can be monitored in real time fashion (as the
values are changing), and up to eight channels monitored as a history (long after they have happened).
The following setpoints are provided:
Real Time Recording Interval – The time interval
that defi nes how often the trending data values are
recorded.
History Recording Interval – The time interval that
defi nes how often the trending data values are re-
corded.
To program this screen with the data you wish to trend, the
user would highlight the Enable Real Time Trend Channel
1 (or whatever channel they wish to use), by pressing the
[Tab] key. Once the box is highlighted, use the [Enter] key
to cause the possible settings for the channel to appear.
Use the arrow keys to scroll through the list. When the
selection that you want to use has been highlighted, press
the [Enter] key to select it. Once selected, the value for
this channel will be automatically trended and shown on
the Real Time Trending graph (or History Trending Graph),
as well as on the Real Time Trending Data Log (Or History
Trending Data Log).
The following list is the selectable values that may be
shown on this screen:
• Capacity Slide Position
• Volume Slide Position
• Suction Pressure
• Discharge Pressure
QUANTUM™ LX COMPRESSOR CONTROL PANEL
OPERATION
SYSTEM STATUS -Trending - Trending Setup
System Status... Trending... Trending Setup
• Compressor Oil Pressure
• Main Oil Injection Pressure
• Economizer Pressure
• Filter Pressure
• Intermediate Pressure
• Balance Piston Pressure
• System Discharge Pressure
• Suction Temperature
• Discharge Temperature
• Compressor Oil Temperature
• Oil Separator Temperature
• Process/Brine Temperature Leaving
• Process/Brine Temperature Entering
• Remote Control Setpoint
• Motor Current
• RPM
• Kilowatts
• User defi ned analog inputs #1 - #10
• EZ Cool Feedback %
• User defi ned analog inputs #12 - #20
• Manifold Pressure
• Remote Capacity Position
• Compressor Vibration – Suction
• Compressor Vibration – Discharge
• Motor Vibration – Shaft Side
• Motor Vibration – Opposite Shaft Side
• Motor Temperature – Shaft Side
• Motor Temperature – Opposite Shaft Side
• Motor Stator #1 - #3
• None
