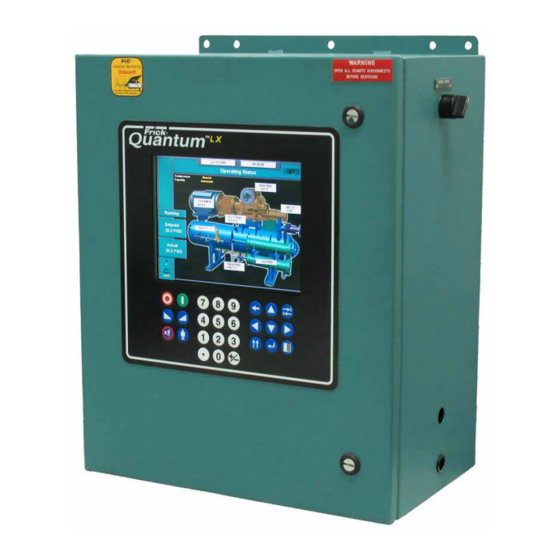

Compressor control panel
Hide thumbs Also See for Frick QUANTUM LX:
Table of Contents

Advertisement

Quick Links

Download this manual
OPERATION – SERVICE
(SESSION LEVEL 2)
FRICK
QUANTUM™ LX
®
COMPRESSOR
CONTROL PANEL
Version 6.6x
Form 090-022 0 (NOVEMBER 2009)
OPERATION - SERVICE
File:
SERVICE MANUAL - SECTION 90
Replaces:
S90-022 O/FEB 2009
Dist:
3, 3a, 3b, 3c

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Frick QUANTUM LX and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Johnson Controls Frick QUANTUM LX

Summary of Contents for Johnson Controls Frick QUANTUM LX

  • Page 1 Form 090-022 0 (NOVEMBER 2009) OPERATION - SERVICE File: SERVICE MANUAL - SECTION 90 Replaces: S90-022 O/FEB 2009 Dist: 3, 3a, 3b, 3c OPERATION – SERVICE (SESSION LEVEL 2) FRICK QUANTUM™ LX ® COMPRESSOR CONTROL PANEL Version 6.6x...

  • Page 2: Table Of Contents
