Real Time Data Log - Johnson Controls FRICK QUANTUM LX Operation

090.022-O (MAY 12)
Page 24
ACCESSING:

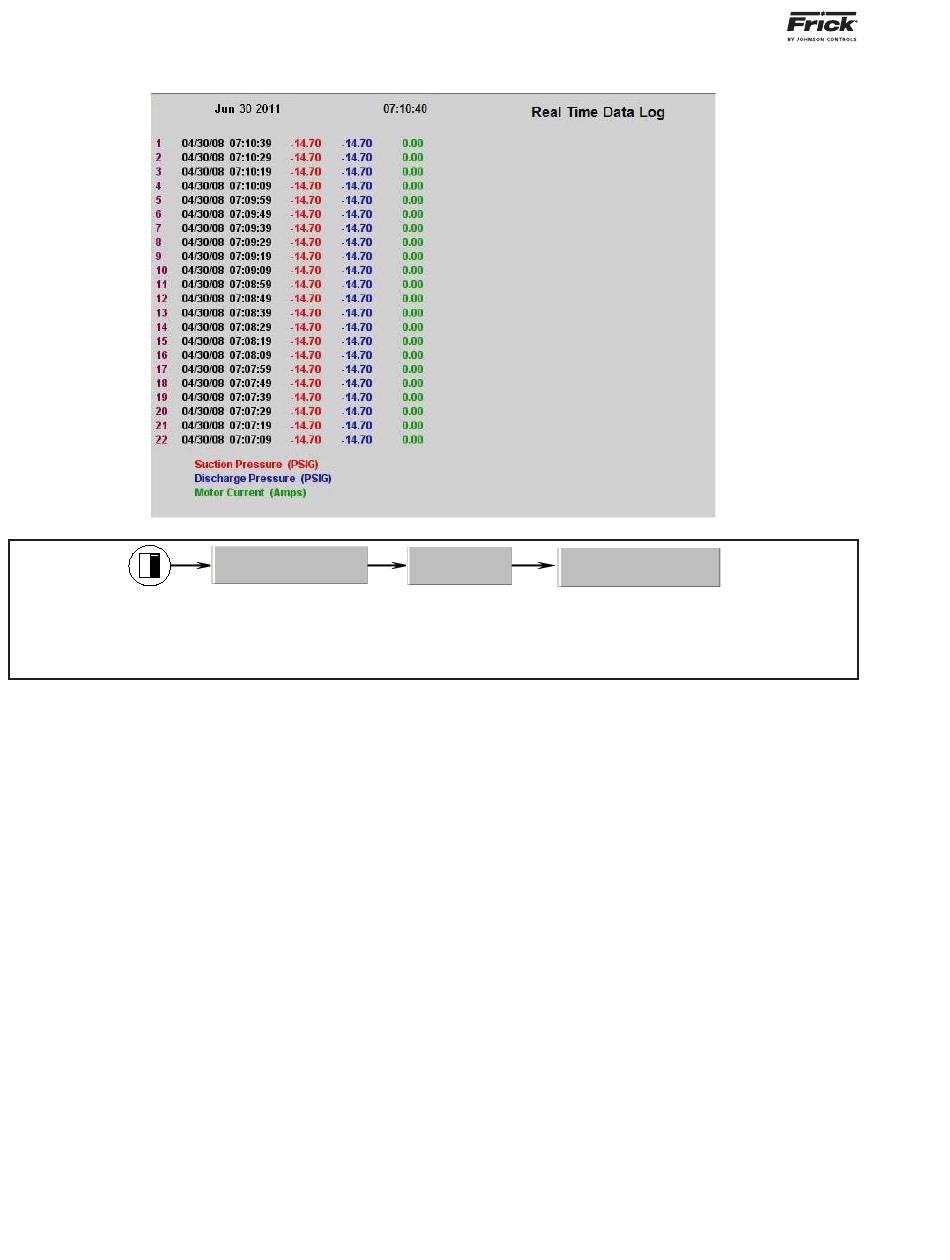

DESCRIPTION: This screen will display in a tabular format, the numerical data values as selected on the Real Time
Trending Setup screen. Each of the possible eight selectable channels will be shown at the bottom of the screen, each
in a different color. The color data values displayed in the chart correspond to the matching color of the trending
channels at the bottom of the screen.
The events that can be logged are set using the Trending
Setup screen. Up to eight of these data selections may
be activated at any one time. If eight items are selected,
QUANTUM™ LX COMPRESSOR CONTROL PANEL
SYSTEM STATUS -Trending - Real Time Data Log
System Status...
OPERATION
Trending...

Real Time Data Log

and you wish to view one more, you will fi rst need to de-
activate one that is already chosen fi rst.
