ACCESSING:

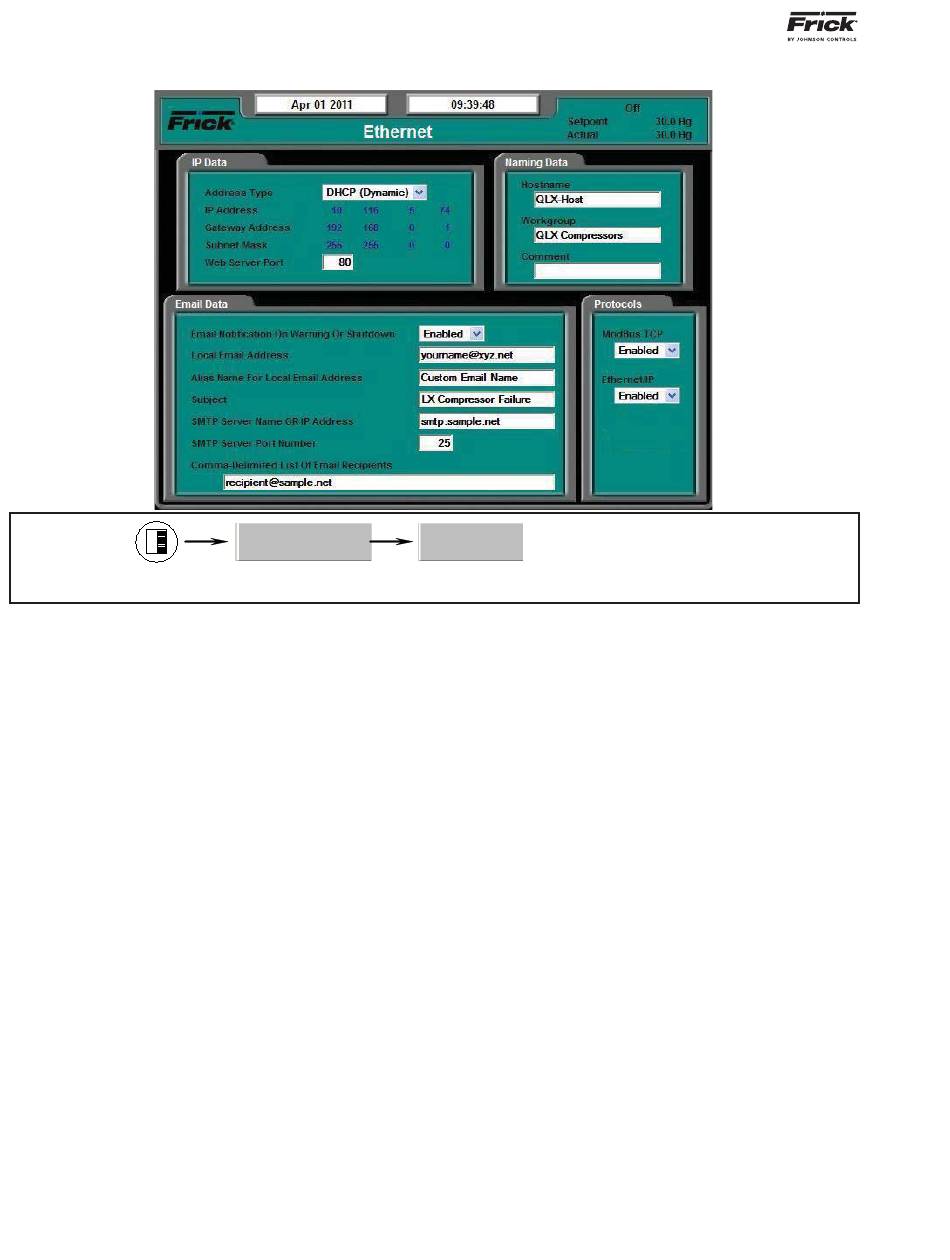

DESCRIPTION: This screen is used to view and set basic Ethernet operational values, as well as all e-mail based op-
erating characteristics. NOTE: A valid internet account and connection must be available for this feature to function.
NOTE: This screen can only be accessed from User Level
1 or above.
The following fi elds are provided:
IP Data:
[Address Type] - A drop down menu is provided:
• Fixed (Static)
• DHCP (Dynamic)
This should be set by the network administrator.
[IP Address] - Four setpoint boxes are provided.
The network administrator will enter the nu-
merical IP address for this specifi c Quantum™
LX panel. This setpoint box will be automatically
assigned if the address type is set to DHCP.
[Gateway Address] - Four setpoint boxes are
provided. The network or LAN administrator will
enter the numerical Gateway address. This set-
point box will be automatically assigned if the
address type is set to DHCP.
[Subnet Mask] – Like IP addresses, a subnet
mask contains four bytes (32 bits) and is often
written using the same "dotted-decimal" nota-
tion. A subnet mask neither works like an IP ad-
dress, nor does it exist independently from them.
Instead, subnet masks accompany an IP address
and the two values work together. This setpoint
box will be automatically assigned if the address
type is set to DHCP. Applying the subnet mask to
an IP address splits the address into two parts,
QUANTUM™ LX COMPRESSOR CONTROL PANEL
OPERATION
CONFIGURATION - Ethernet
Configuration

Ethernet

an extended network address and a host ad-
dress. For a subnet mask to be valid, its leftmost
bits must be set to '1'. Conversely, the rightmost
bits in a valid subnet mask must be set to '0',
not '1'. All valid subnet masks contain two parts:
the left side with all mask bits set to '1' (the ex-
tended network portion) and the right side with
all bits set to '0' (the host portion).
[Web Server Port] - One setpoint box is provid-
ed. The network administrator will enter the nu-
merical address for this Web port (80 is typical).
Email Data:
[Email Notifi cation On Shutdown] - For the E-
mail notifi cation feature to work, it must be en-
abled. The following menu is provided:
• Disabled
• Enabled
[Local Email Address] - Enter a valid E-mail ad-
dress that messages are sent from.
[Alias Name For Local Email Address] - Enter
here a custom name to identify more clearly the
local Email address. When a message is sent to
all recipients, this is the name that will appear in
the Email FROM column.
[Subject] - Enter a custom subject that you
would like to have appear when a message fail-
ure is sent. When a message is sent to all recipi-
ents, this is the wording that will appear in the
Email SUBJECT column.
