090.022-O (MAY 12)
Page 16

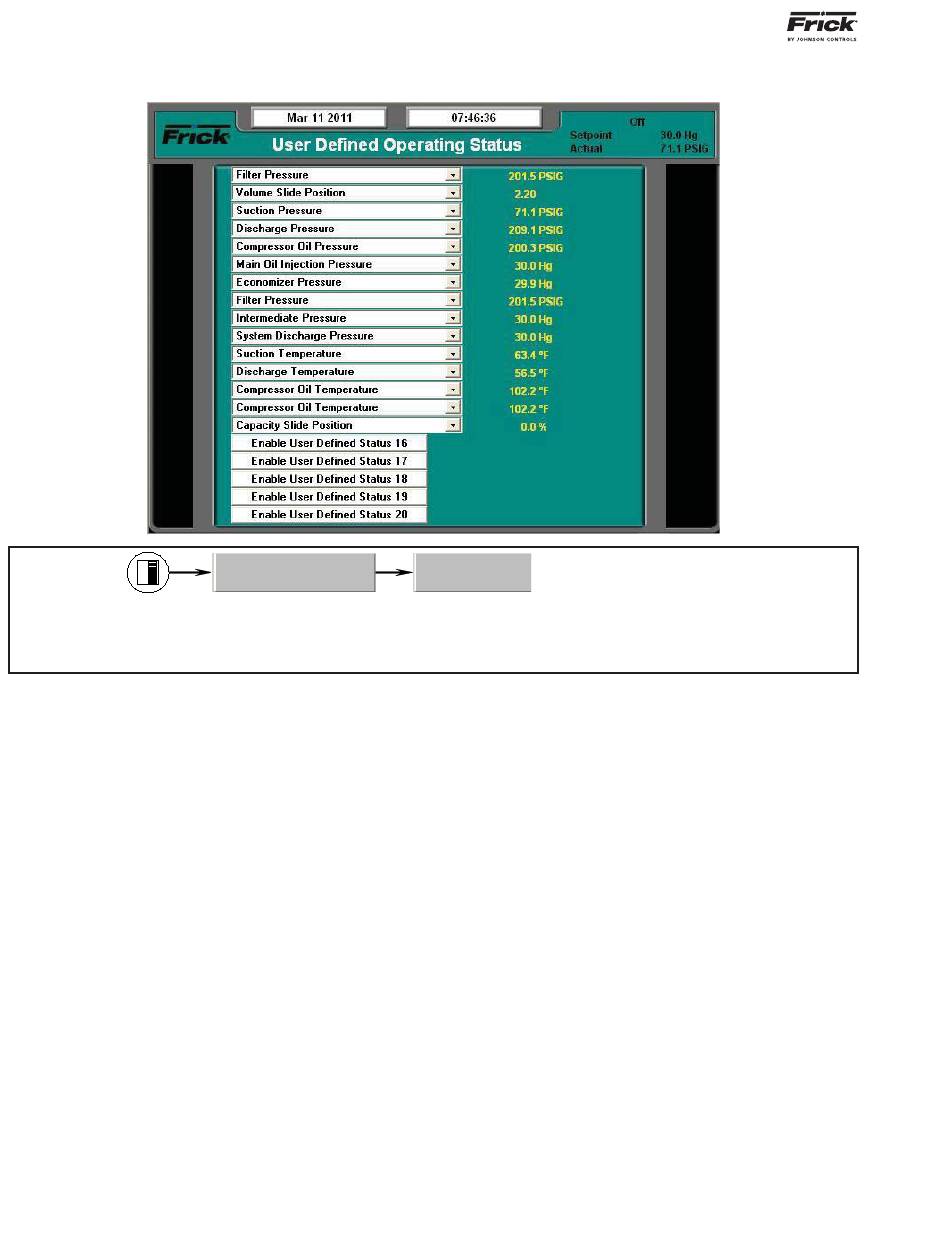

OPERATING VALUES - User Defi ned Operating Status
ACCESSING:
DESCRIPTION: The purpose of this screen is to allow the user to assign additional analog channels to be more readily
viewable. Since the main Operating Status screen is capable of only showing a limited number of pre-assigned analog
values, it may be desirable for the user to have a method of viewing additional information that they can select, on a
common screen.
This screen is provided to allow the user to view up to 20
different analog channels of their choosing.
As an example of how this screen works, assume that in
addition to the data that is shown on the Operating Sta-
tus screen, the user would like to monitor the Capacity
Slide Position, Auxiliary Analog Channel 1 and Compres-
sor Vibration –Suction, all on the same screen (this one).
Notice that Capacity Slide Position is already shown on
the Operating Status screen, but the user would also like
to see Auxiliary Analog Channel 1 and Compressor Vibra-
tion –Suction on the same screen. In order to set this
screen up this way, the user would highlight the Enable
User Defi ned Channel 1 (or whatever channel they wish
to use), by pressing the [Tab] key. Once the box is high-
lighted, use the [Enter] key to cause the possible settings
for the channel to appear. Use the arrow keys to scroll
through the list. When the selection that you want to use
has been highlighted, press the [Enter] key to select it.
Once selected, a value will appear to the right of the list,
which corresponds to the analog value for that channel.
The following selections may be shown on this screen:
• Capacity Slide Position
• Volume Slide Position
• Suction Pressure
• Discharge Pressure
• Compressor Oil Pressure
QUANTUM™ LX COMPRESSOR CONTROL PANEL
OPERATION
Operating Values...
User Defined
• Main Oil Injection Pressure
• Economizer Pressure
• Filter Pressure
• Intermediate Pressure
• Balance Piston Pressure
• System Discharge Pressure
• Suction Temperature
• Discharge Temperature
• Compressor Oil Temperature
• Oil Separator Temperature
• Process/Brine Temperature Leaving
• Process/Brine Temperature Entering
• Remote Control Setpoint
• Motor Current
• RPM
• Kilowatts
• User defi ned analog inputs #1 - #10
• EZ Cool Feedback %
• User defi ned analog inputs #12 - #20
• Manifold Pressure
• Remote Capacity Position
• Compressor Vibration – Suction
• Compressor Vibration – Discharge
• Motor Vibration – Shaft Side
• Motor Vibration – Opposite Shaft Side
• Motor Temperature – Shaft Side
• Motor Temperature – Opposite Shaft Side
• Motor Stator #1 - #3
• None
