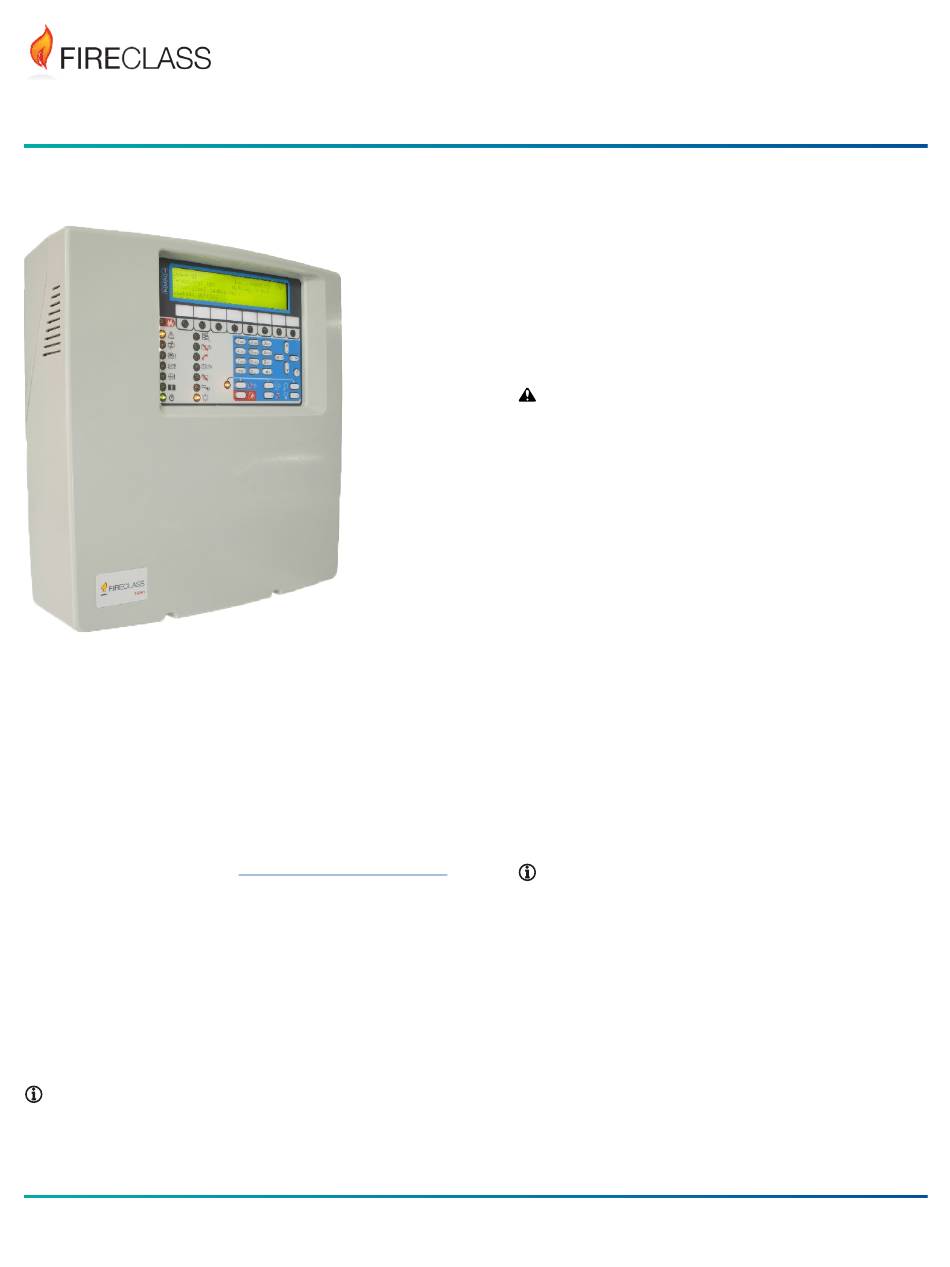

Addressable fire control panels

Advertisement

Quick Links

Introduction
Johnson Controls assumes no responsibility
for damage to products arising from improper
application or misuse.
The FC501-L, FC501-H, and FC501-HK fire control
panels comply with the essential requirements of
standards EN54-2, EN54-4, and EN 54-21.
The FC501-L, FC501-H, and FC501-HK fire control
panels support several addressable devices, such
as detectors, modules, manual call points, and so
on. For further information about these devices and
their accessories, refer to http://www.fireclass.com.
The manufacturer reserves the right to change the
technical specifications of these products without
prior notice.
Maintenance
To ensure that the system continues to operate
correctly, it must be maintained with regular testing
by the user and periodic maintenance by the
installer in accordance with local laws.
Note: For the maintenance of other devices
such as detectors, modules, and so on, follow
the dedicated instructions for the devices.
FC501 Addressable Fire Control Panels User
The following operations must be carried out
regularly:
1. Remove dust from the control panel cabinet with
a damp cloth. Do not use solvents of any kind.
2. Check that the LEDs and buzzer are functioning
correctly. To do this, use the LAMP TEST key.
3. Ensure the batteries are sufficiently charged
and functioning correctly. If not, replace them
immediately.
CAUTION: Batteries must be replaced by a
trained person only.
4. Ensure all cables and connections are intact.
5. Ensure there are no unrelated objects inside the
control panel case.
6. Ensure the control panel is capable of processing
a fire alarm, and if sounders are present in the
system, they activate in consequence of this
alarm. If there is a facility for transmission of fire
alarm signals to a central station, ensure that the
signal is correctly received.
7. Verify the functionality of the circuit for the
detection of earth fault. The procedure is as
follows:
a. Connect one of the SH terminals of the loop
to the panel earth.
b. Verify that the fault is reported correctly by
the panel.
c. Remove the connection previously made.
Note: Points 1 and 2 can be carried out by
users. Points 3, 4, 5, 6, and 7 must be carried
out by qualified persons.
Manual
120.615.011_FC-FC501-P-U Rev. 11.0
2023-11-07
