Phd Monitoring - Johnson Controls FRICK QUANTUM LX Operation

ACCESSING:

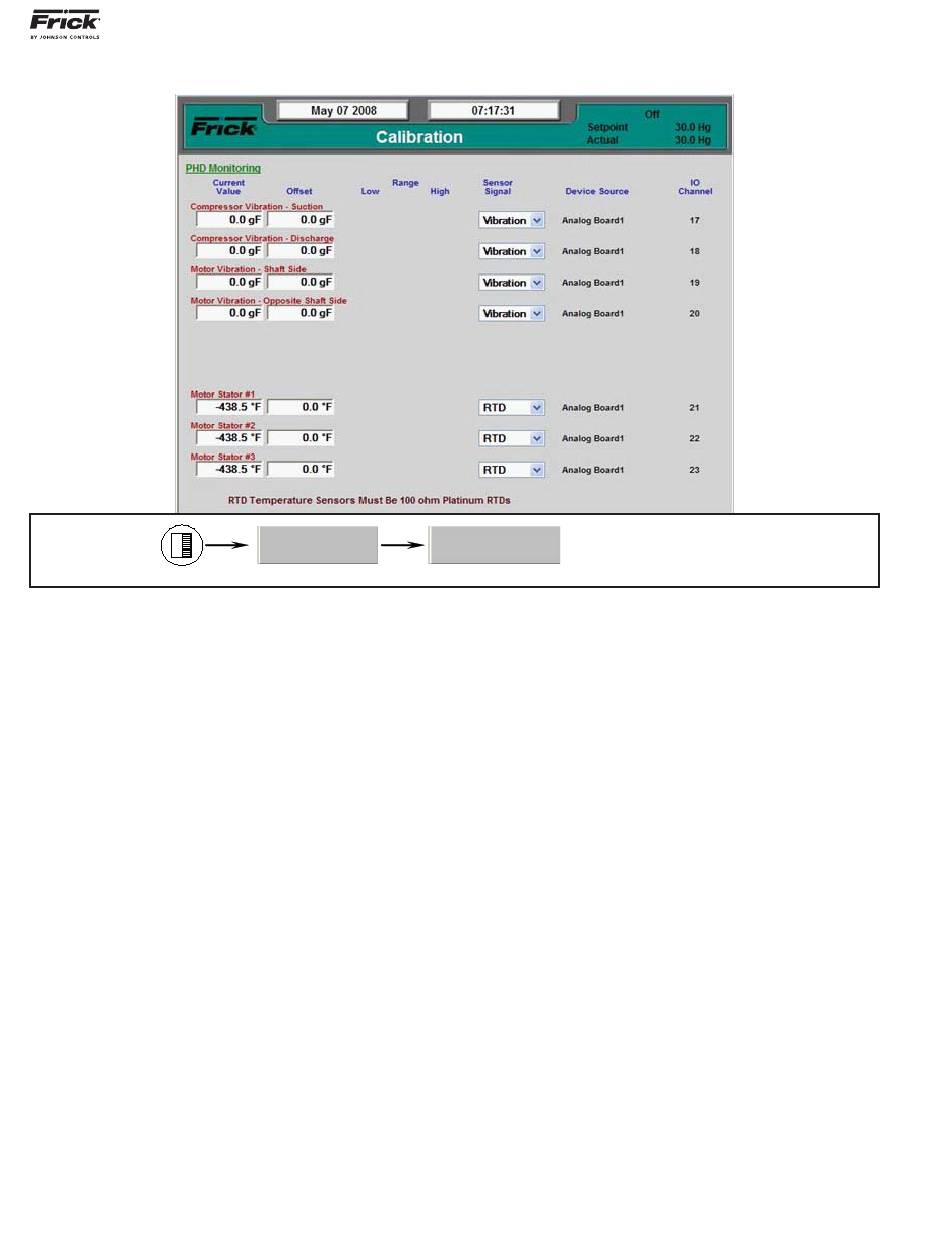

DESCRIPTION: This screen is used to view and set PHD calibration values.
The following drop-down and setpoint boxes are pro-
vided:
Compressor Vibration – (Suction, Discharge)
[Current Value] - The actual amount of vibra-
tion that is being sensed (taking into account the
offset).
[Offset] - A value entered here will allow the
user to compensate for calibration issues with
a sensor.
[Sensor Signal]
• None
• 0-5V
• 1-5V
• 4-20mA
• Pot.
• ICTD
• RTD
• CT
• RPM
• Vibration
• 0-10V
Motor Vibration – (Shaft Side, Opposite Shaft Side)
[Current Value] - The actual amount of vibra-
tion that is being sensed (taking into account the
offset).
[Offset] - A value entered here will allow the
user to compensate for calibration issues with
a sensor.
QUANTUM™ LX COMPRESSOR CONTROL PANEL
OPERATION
CALIBRATION – PHD Monitoring
Calibration... ... Calibration
PHD PHD
[Sensor Signal]
• None
• 0-5V
• 1-5V
• 4-20mA
• Pot.
• ICTD
• RTD
• CT
• RPM
• Vibration
• 0-10V
Motor Stator – (1, 2 and 3)
[Current Value] - The actual temperature that
is being sensed (taking into account the offset).
[Offset] - A value entered here will allow the
user to compensate for calibration issues with
a sensor.
[Sensor Signal]
• None
• 0-5V
• 1-5V
• 4-20mA
• Pot.
• ICTD
• RTD
• CT
• RPM
• Vibration
• 0-10V
