History Trending - Johnson Controls FRICK QUANTUM LX Operation

ACCESSING:

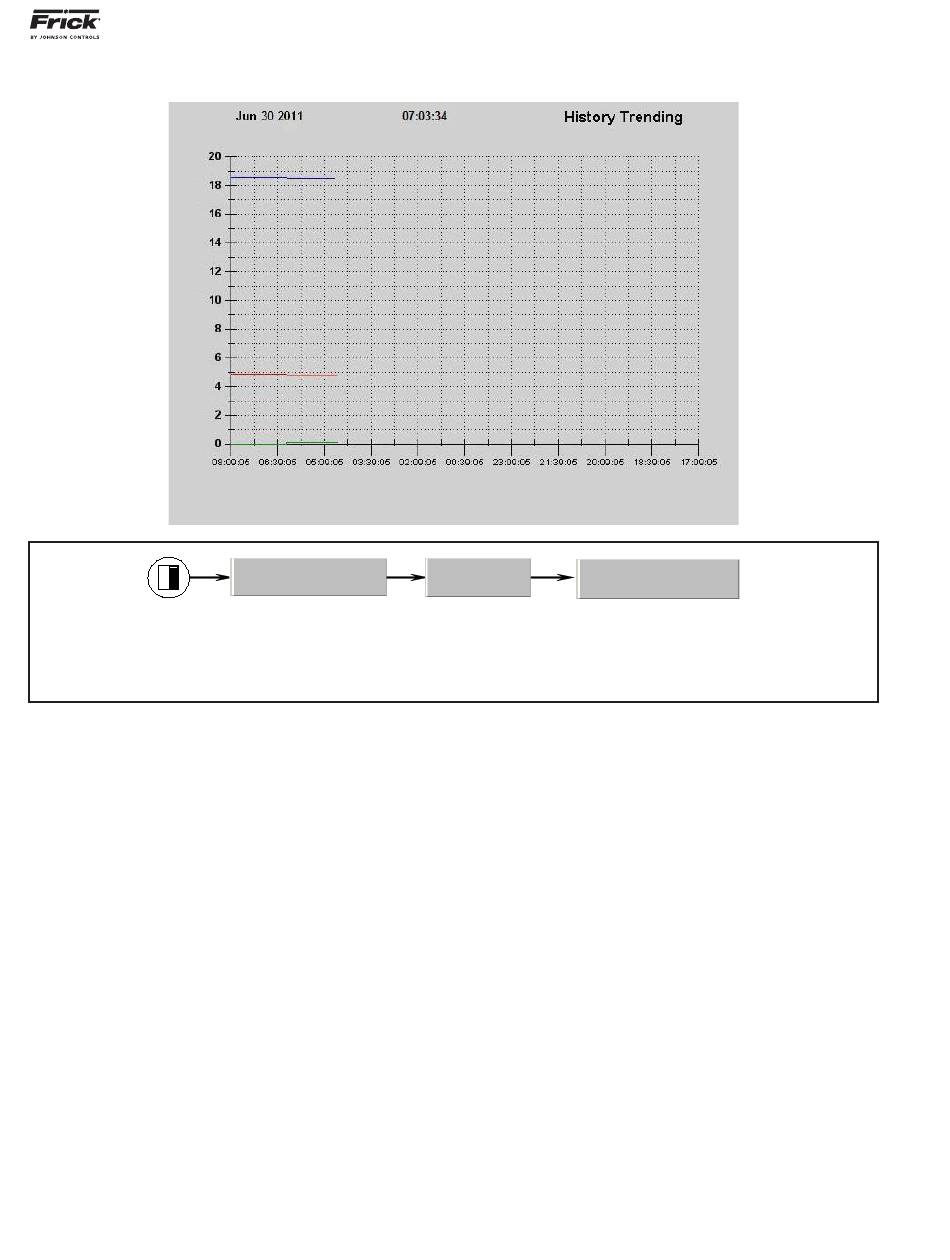

DESCRIPTION: This is the History Trending screen. It is accessible from the Main Menu by pressing [System Status...],
then Trending, and fi nally History Trending. This screen will display in a graphical chart format, the data values as
selected on the Real Time Trending Setup screen. Each of the possible eight selectable channels will be shown at the
bottom of the screen, each in a different color. The color data values displayed in the chart correspond to the matching
color of the trending channels at the bottom of the screen.
History trending can save up to 2000 values for each se-
lected channel. History data is stored in Flash memory.
Flash memory is non-volatile and all information is re-
tained even if the power to the panel is lost. The interval
QUANTUM™ LX COMPRESSOR CONTROL PANEL
SYSTEM STATUS -Trending - History Trending
System Status...
OPERATION
Trending...

History Trending

at which the data is saved can be adjusted.
The events that can be logged are set using the Trending
Setup screen.
