Johnson Controls FRICK QUANTUM LX Operation page 69

ACCESSING:

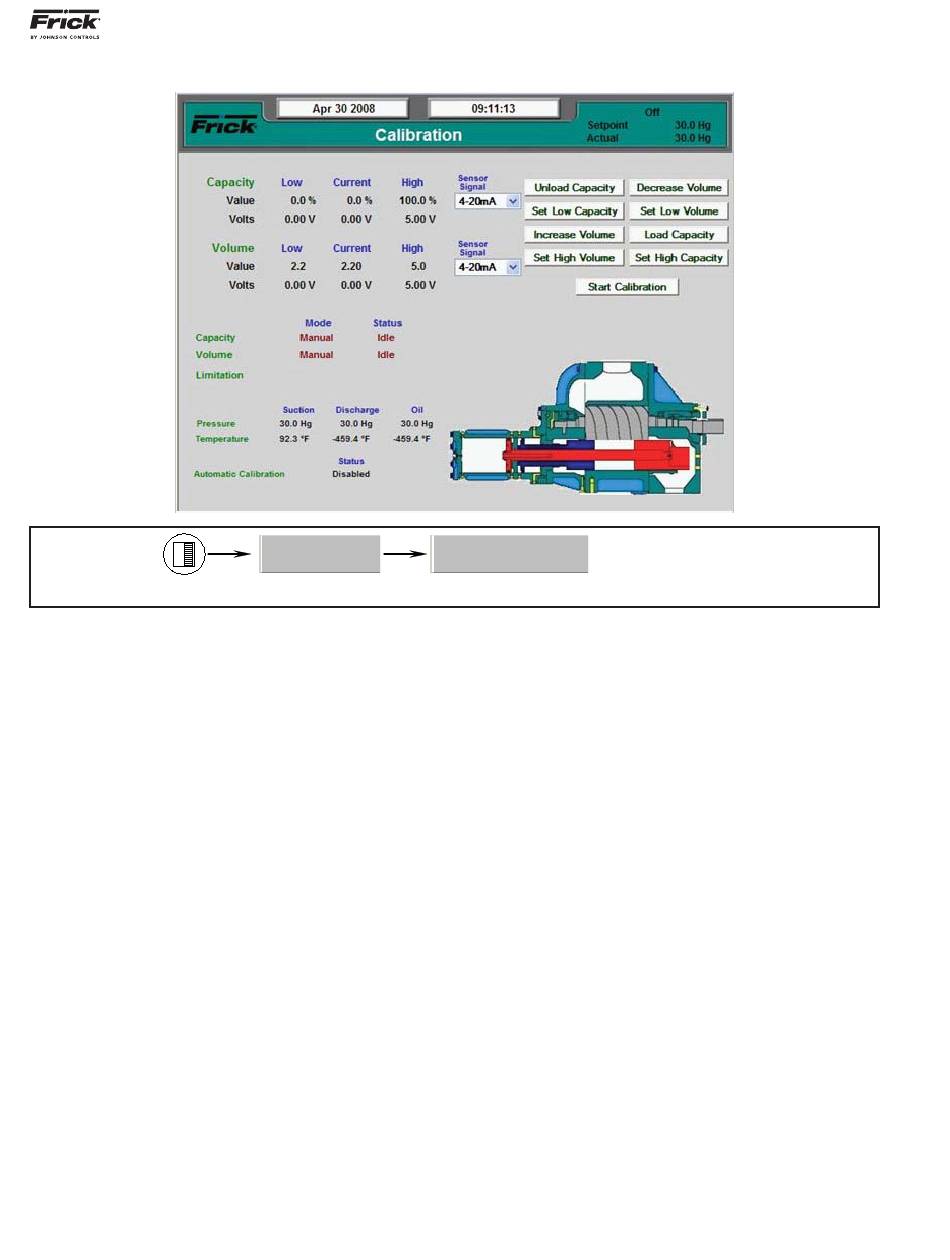

DESCRIPTION: This screen is used to view and set the capacity and volume calibration values.
The following drop-down menus are provided:
[Sensor Signal] – Select the type of sensor for both
Capacity and Volume, from the choices provided.
• None
• 0-5 V
• 1-5 V
• 4-20mA
• Pot.
• ICTD
• RTD
• CT
• RPM
• Vibration
• 0-10 V
• +/-5 V
QUANTUM™ LX COMPRESSOR CONTROL PANEL
OPERATION
CALIBRATION - Capacity/Volume
Calibration...
Capacity/Volume
There are a total of nine buttons provided. The fi rst group
of eight allows for manually calibrating the Slide Valve and
Slide Stop. These buttons are:
• [Unload Capacity]
• [Decrease Volume]
• [Set Low Capacity]
• [Set Low Volume]
• [Increase Volume]
• [Load Capacity]
• [Set High Volume]
• [Set High Capacity]
The ninth button allows for automatic calibration of the
Slide Valve and Slide Stop. Pressing this button will au-
tomatically perform all 8 steps of the manual calibration:
• [Start Calibration]
090.022-O (MAY 12)
Page 69
