ACCESSING:

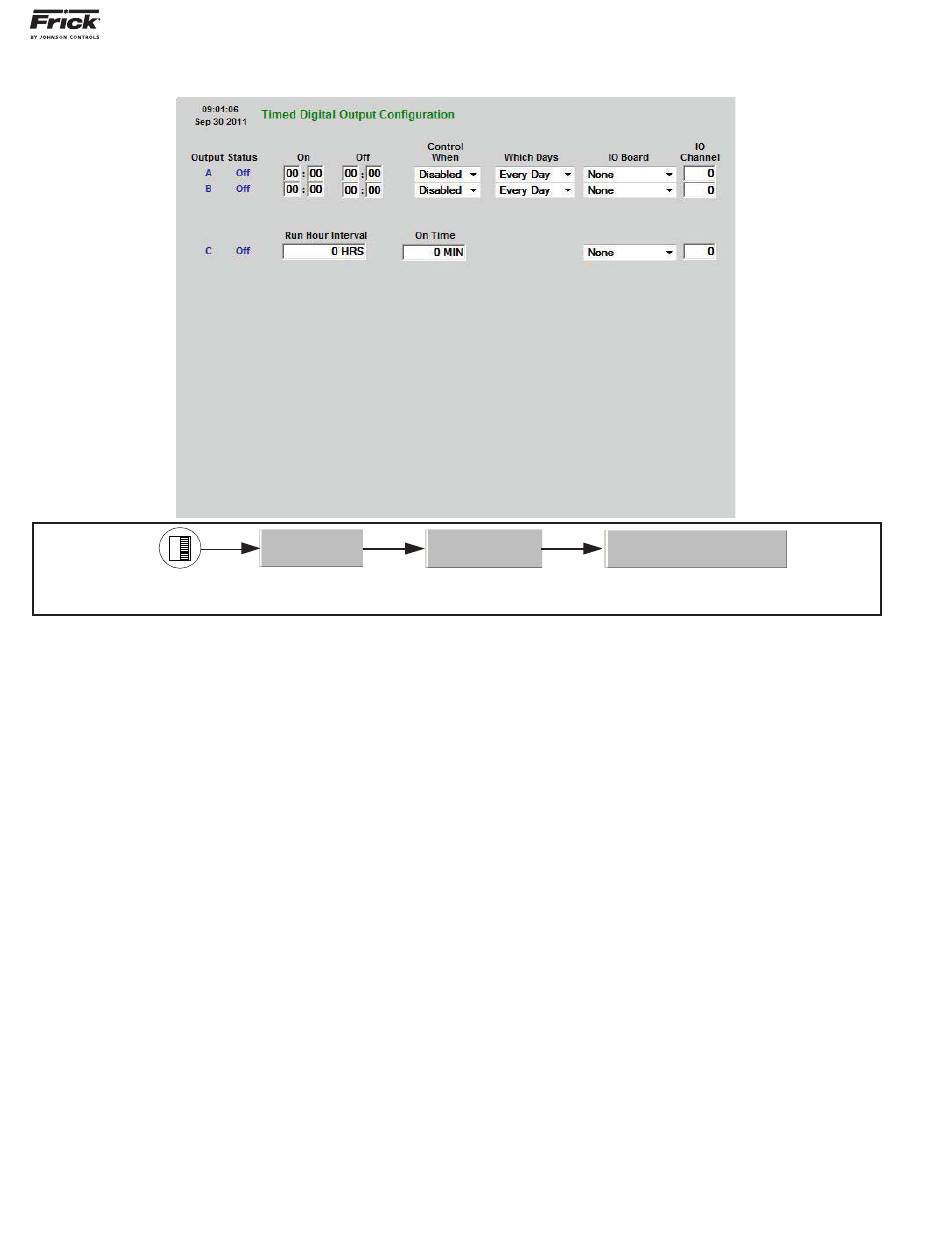

DESCRIPTION: Use this screen to setup and control user assigned Timed Digital Output control. Timed Outputs can be
assigned for any external control function that requires a pre-defi ned on/off time schedule.
This screen may be used to custom assign up to two
available digital outputs (A & B) to a timed schedule. A
third output (C) may also be used, with the exception that
it will be based on the Compressor Run time.
Note: The channel selected to become a timed
output must be manually unassigned fi rst before the
timer feature can be assigned for that channel, even
an auxiliary output.
The following status boxes appear on this screen:
• Output - Three rows of data are provided, one
each for Outputs A, B and C.
• Status - The current status of each of the three
Outputs is indicated with either an On or Off.
The following setpoint boxes and drop down menus are
available for Outputs A and B:
• On - Enter into these setpoint boxes the actual
time of day that you want the Output to energize.
• Off - Enter into these setpoint boxes the actual
time of day that you want the Output to de-
energize.
• Control When - Three choices are provided:
• Disabled - Output will never energize
(under timed control).
• Running - Output will only be controlled
while the Compressor is Running.
• Always - The Output will be controlled all
of the time.
QUANTUM™ LX COMPRESSOR CONTROL PANEL
SETPOINTS – Auxiliaries - Timed Digital Outputs
Setpoints...
OPERATION
Auxiliaries...
• Which Days - Two selections are provided:
• Every Day - The Output will be controlled
seven days a week.
• Week Days - The Output will be controlled
Monday through Friday only.
The following setpoint boxes and drop down menus are
available for Outputs A, B and C:
• I/O Board - Three selections are provided:
• None - No board selected.
• Digital Board 1 - The Output to be controlled
is located on Digital Board 1.
• Digital Board 2 - The Output to be controlled
is located on Digital Board 2.
• I/O Channel - Enter the channel of the selected
Digital Board to control (1 - 24).
The following setpoint boxes and drop down menus are
available for Output C only:
• Run Hour Interval - The number of hours after
the Compressor has been running, before the
Output will energize.
• On Time - The length of time that the Output
will be energized once the Run Hour Interval has
been satisfi ed.
