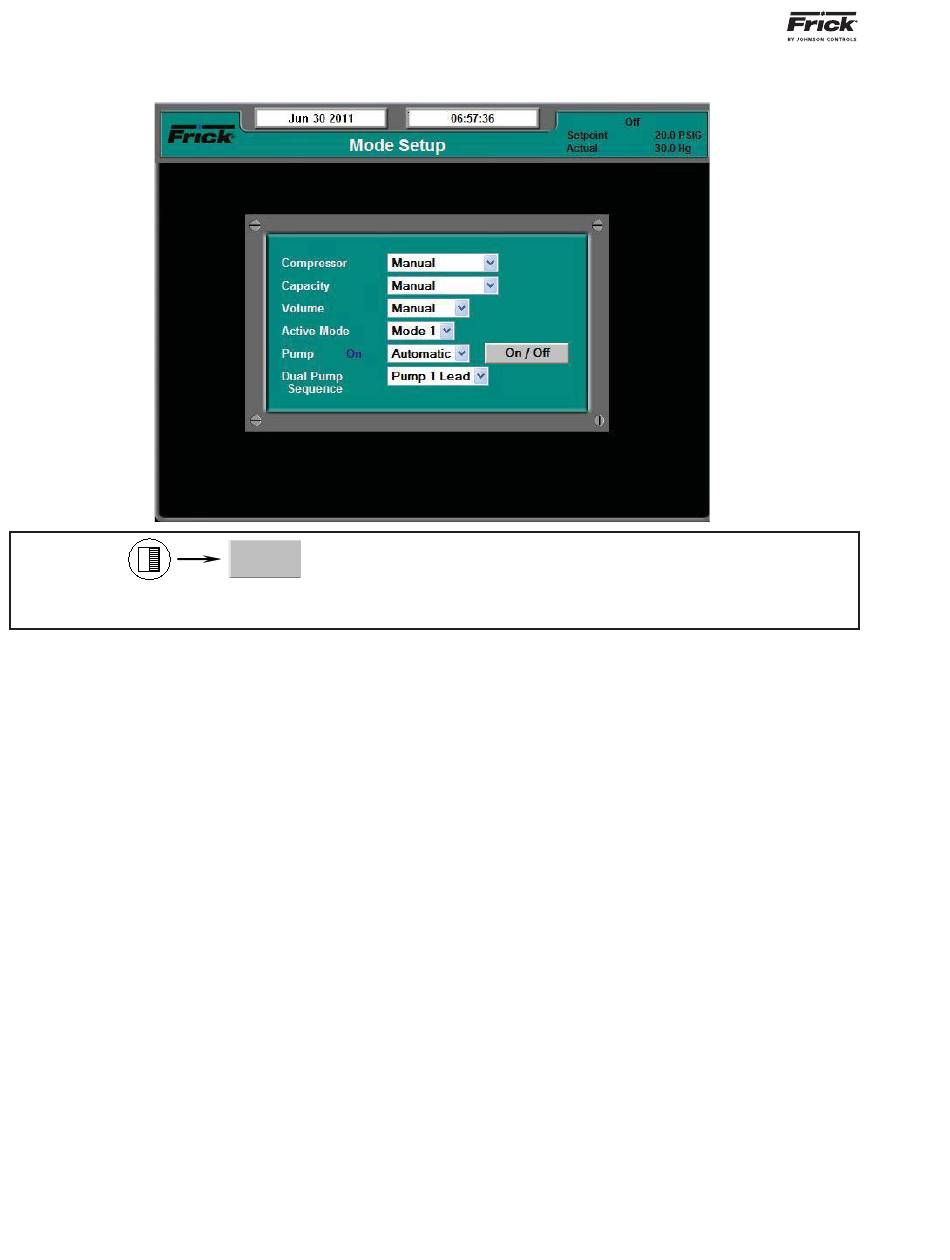

ACCESSING:
DESCRIPTION: The purpose of this screen is to allow the user to assign operational states (such as manual or automatic)
to the various modes shown on the screen.
The following pull-down menus are shown here:
Compressor:
• Manual
• Automatic
• Remote -- Communications
• Remote -- IO
• Remote -- Sequencing
• Manual -- Browser
Capacity:
• Manual
• Automatic
• Remote -- Communications
• Remote -- IO
• Remote -- 4-20 Input
• Remote -- Sequencing
• Manual – Browser
Volume:
• Manual
• Automatic
Active Mode:
• Mode 1
• Mode 2
• Mode 3
• Mode 4
QUANTUM™ LX COMPRESSOR CONTROL PANEL
OPERATION

MODES

Mode
Pump (if enabled):
A Pump On/Off indicator (blue text) is provided
here to alert the user as to the actual status of
the Oil Pump (if applicable). A drop down menu
is also provided, and there are two states that
can be selected for oil pump operation, they are:
Manual - The user has control over the
running of the pump. To run the pump, sim-
ply observe the blue text indicator to ensure
that the pump is not already running, and if
not, then press the [On/Off] toggle button.
The blue text indicator will change from Off
to On. To stop the pump, press the toggle
button again, and the pump indicator will
change to Off.
Automatic - If the pump is set to Automatic
mode, the Quantum™ LX software program
is controlling the pump operation. In this
mode, if the toggle key is pressed, the mode
will be changed from Automatic to Manual
Mode, and the current state of the pump
(digital output 3) will toggle also.
Dual Pump Sequence (if enabled):
• Pump 1 Lead
• Pump 2 Lead
