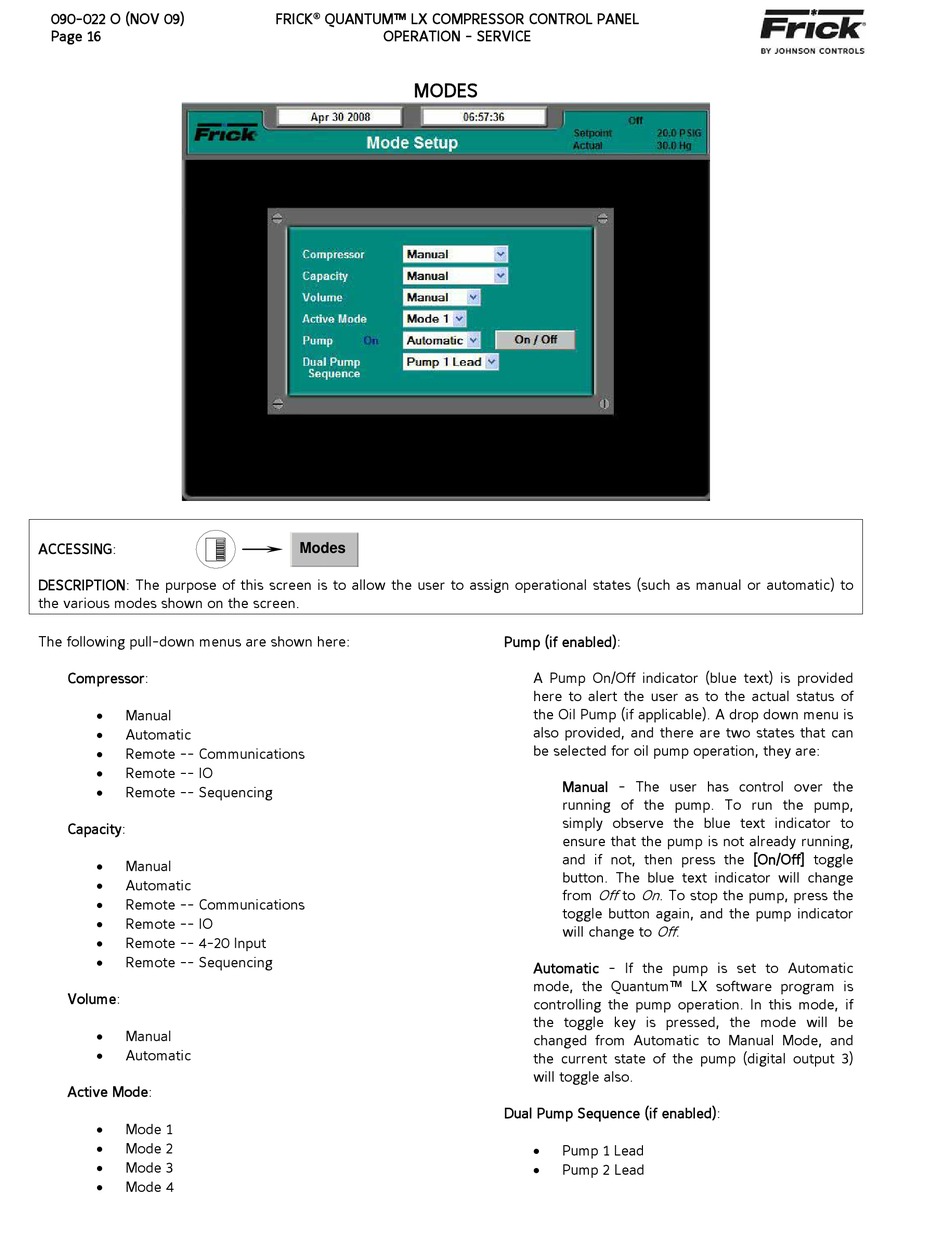

ACCESSING:
DESCRIPTION: The purpose of this screen is to allow the user to assign operational states (such as manual or automatic) to
the various modes shown on the screen.
The following pull-down menus are shown here:
Compressor:

Manual

Automatic

Remote -- Communications

Remote -- IO

Remote -- Sequencing
Capacity:

Manual

Automatic

Remote -- Communications

Remote -- IO

Remote -- 4-20 Input

Remote -- Sequencing
Volume:

Manual

Automatic
Active Mode:

Mode 1

Mode 2

Mode 3

Mode 4
FRICK ® QUANTUM™ LX COMPRESSOR CONTROL PANEL
OPERATION - SERVICE

MODES

Modes
Pump (if enabled):
A Pump On/Off indicator (blue text) is provided
here to alert the user as to the actual status of
the Oil Pump (if applicable). A drop down menu is
also provided, and there are two states that can
be selected for oil pump operation, they are:
Manual - The user has control over the
running of the pump. To run the pump,
simply observe the blue text indicator to
ensure that the pump is not already running,
and if not, then press the [On/Off] toggle
button. The blue text indicator will change
Off On
from to . To stop the pump, press the
toggle button again, and the pump indicator
Off
will change to .
Automatic - If the pump is set to Automatic
mode, the Quantum™ LX software program is
controlling the pump operation. In this mode, if
the toggle key is pressed, the mode will be
changed from Automatic to Manual Mode, and
the current state of the pump (digital output 3)
will toggle also.
Dual Pump Sequence (if enabled):

Pump 1 Lead

Pump 2 Lead
