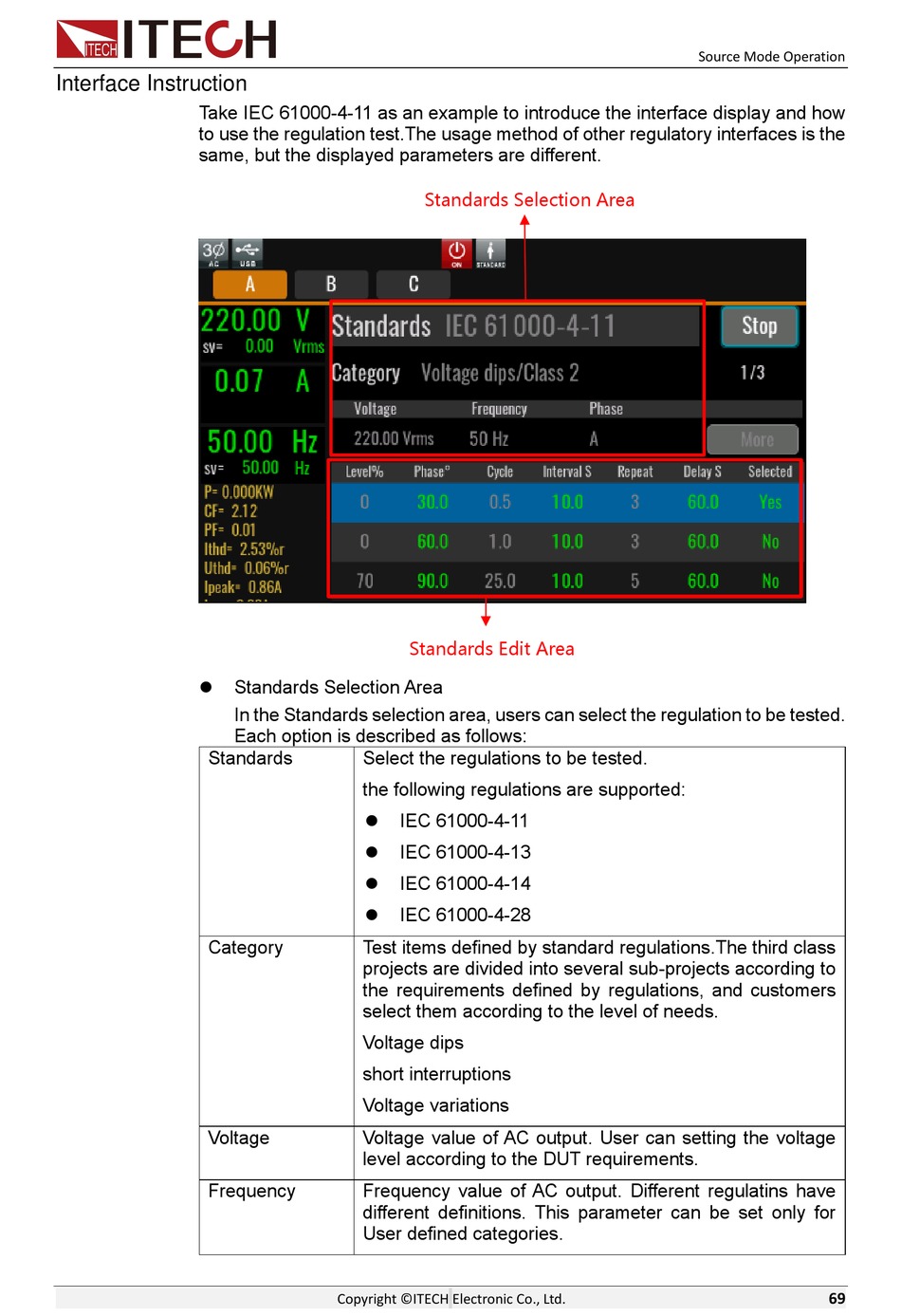

Interface Instruction
Take IEC 61000-4-11 as an example to introduce the interface display and how
to use the regulation test.The usage method of other regulatory interfaces is the
same, but the displayed parameters are different.
⚫
Standards
Category
Voltage
Frequency
Standards Selection Area
In the Standards selection area, users can select the regulation to be tested.
Each option is described as follows:
Select the regulations to be tested.
the following regulations are supported:
⚫ IEC 61000-4-11
⚫ IEC 61000-4-13
⚫ IEC 61000-4-14
⚫ IEC 61000-4-28
Test items defined by standard regulations.The third class
projects are divided into several sub-projects according to
the requirements defined by regulations, and customers
select them according to the level of needs.
Voltage dips
short interruptions
Voltage variations
Voltage value of AC output. User can setting the voltage
level according to the DUT requirements.
Frequency value of AC output. Different regulatins have
different definitions. This parameter can be set only for
User defined categories.
