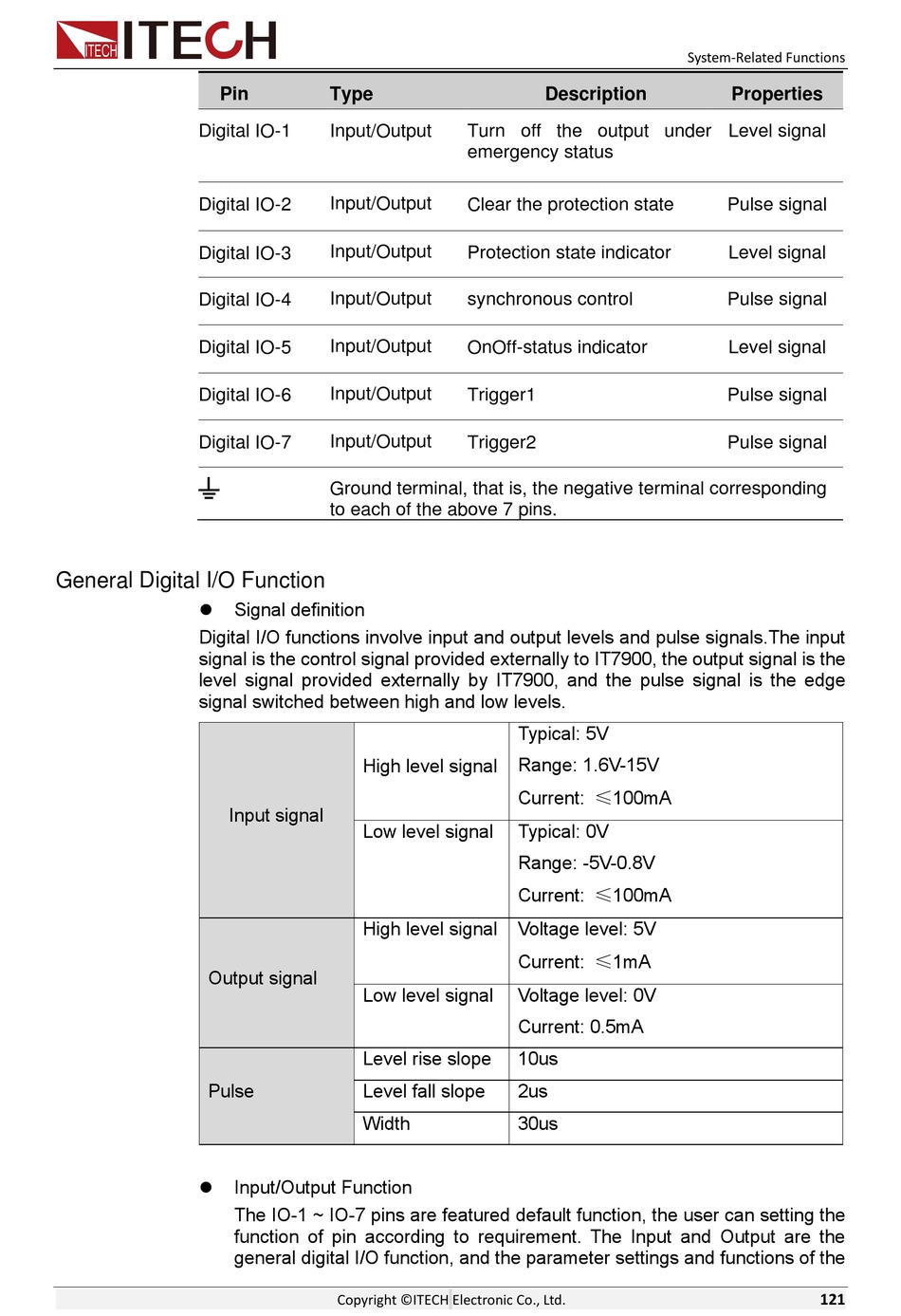

General Digital I/O Function
Digital I/O functions involve input and output levels and pulse signals.The input
signal is the control signal provided externally to IT7900, the output signal is the
level signal provided externally by IT7900, and the pulse signal is the edge
signal switched between high and low levels.
Output signal
Pulse
Type
Input/Output
Input/Output
Input/Output
Input/Output
Input/Output
Input/Output
Input/Output
Ground terminal, that is, the negative terminal corresponding
to each of the above 7 pins.
Signal definition
High level signal
Input signal
Low level signal
High level signal
Low level signal
Level rise slope
Level fall slope
Width
Input/Output Function
The IO-1 ~ IO-7 pins are featured default function, the user can setting the
function of pin according to requirement. The Input and Output are the
general digital I/O function, and the parameter settings and functions of the
Copyright ©ITECH Electronic Co., Ltd.
Description
Turn off the output under
emergency status
Clear the protection state
Protection state indicator
synchronous control
OnOff-status indicator
Trigger1
Trigger2
Typical: 5V
Range: 1.6V-15V
Current: ≤100mA
Typical: 0V
Range: -5V-0.8V
Current: ≤100mA
Voltage level: 5V
Current: ≤1mA
Voltage level: 0V
Current: 0.5mA
10us
2us
30us
System-Related Functions
Properties
Level signal
Pulse signal
Level signal
Pulse signal
Level signal
Pulse signal
Pulse signal
