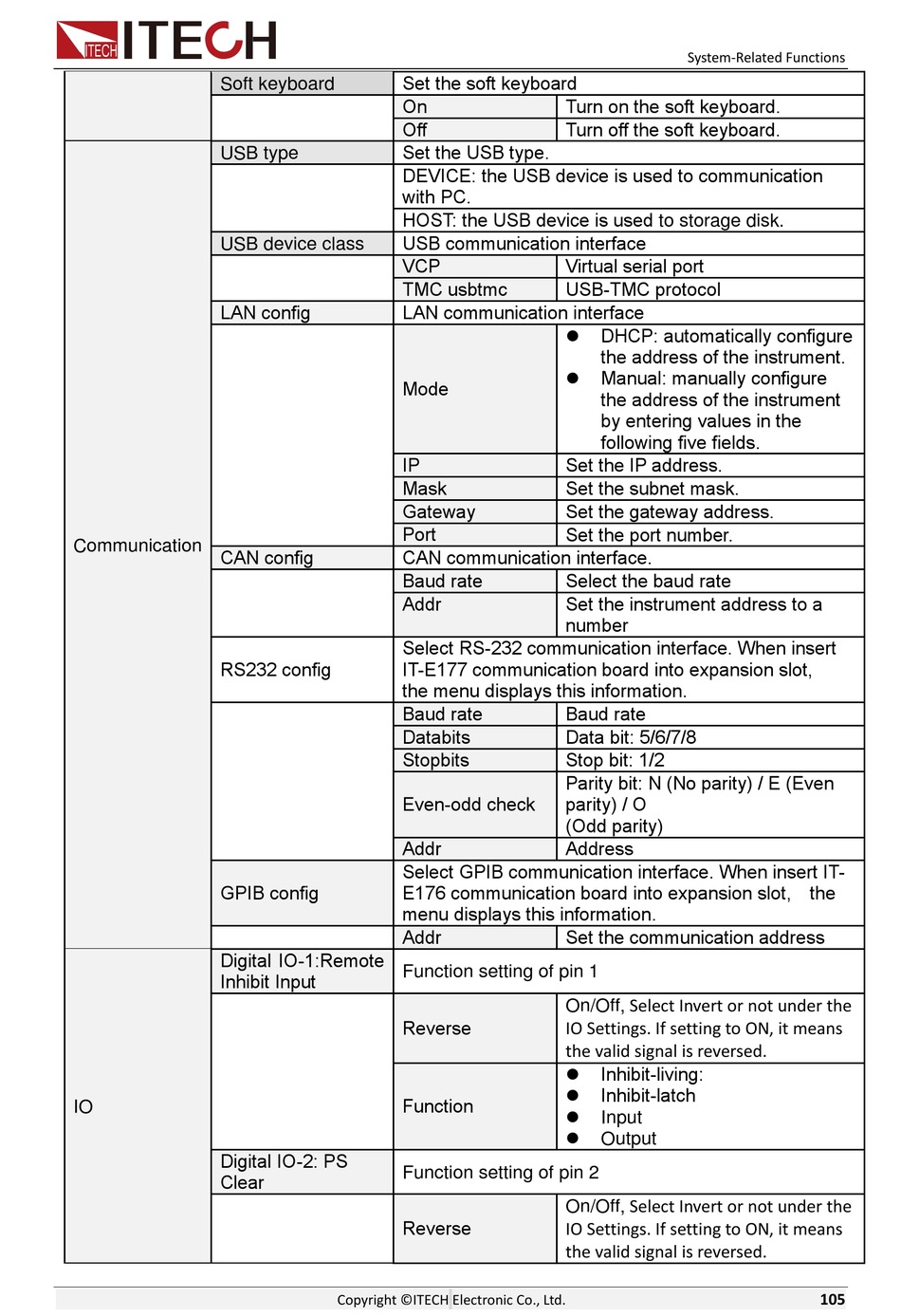

Soft keyboard
USB type
USB device class
LAN config
Communication
CAN config
RS232 config
GPIB config
Digital IO-1:Remote
Inhibit Input
IO
Digital IO-2: PS
Clear
Set the soft keyboard
On
Off
Set the USB type.
DEVICE: the USB device is used to communication
with PC.
HOST: the USB device is used to storage disk.
USB communication interface
VCP
TMC usbtmc
LAN communication interface
Mode
IP
Mask
Gateway
Port
CAN communication interface.
Baud rate
Addr
Select RS-232 communication interface. When insert
IT-E177 communication board into expansion slot,
the menu displays this information.
Baud rate
Databits
Stopbits
Even-odd check
Addr
Select GPIB communication interface. When insert IT-
E176 communication board into expansion slot, the
menu displays this information.
Addr
Function setting of pin 1
Reverse
Function
Function setting of pin 2
Reverse
Copyright ©ITECH Electronic Co., Ltd.
System-Related Functions
Turn on the soft keyboard.
Turn off the soft keyboard.
Virtual serial port
USB-TMC protocol
⚫ DHCP: automatically configure
the address of the instrument.
⚫ Manual: manually configure
the address of the instrument
by entering values in the
following five fields.
Set the IP address.
Set the subnet mask.
Set the gateway address.
Set the port number.
Select the baud rate
Set the instrument address to a
number
Baud rate
Data bit: 5/6/7/8
Stop bit: 1/2
Parity bit: N (No parity) / E (Even
parity) / O
(Odd parity)
Address
Set the communication address
On/Off, Select Invert or not under the
IO Settings. If setting to ON, it means
the valid signal is reversed.
⚫ Inhibit-living:
⚫ Inhibit-latch
⚫
Input
⚫
Output
On/Off, Select Invert or not under the
IO Settings. If setting to ON, it means
the valid signal is reversed.
